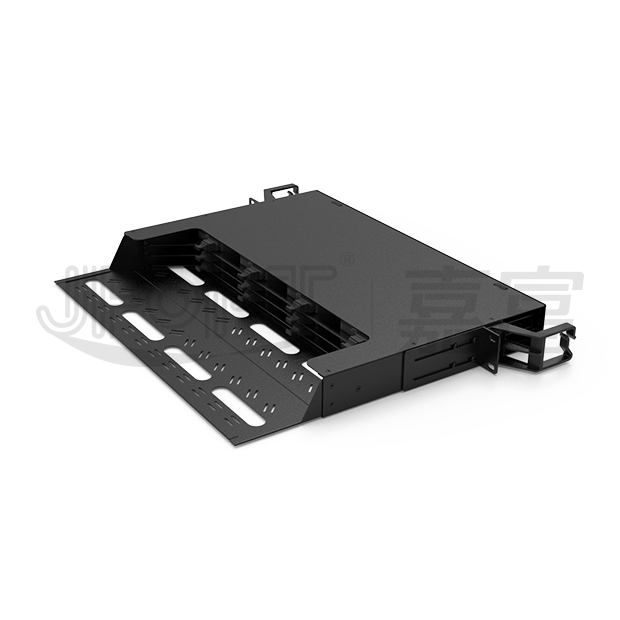

1U MPO/MTP Patch Panel Max 144F
12-fiber MPO cassette / Max capacity 144 fibers / Data center
Model:JFOPP-MPO10-B-001
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

JFOPP-MPO10-B-001 MPO patch panel adopts ultra-thin design, it holds up to 144 fibers in 1U space, which can maximize the utilization of rack space resources. Mainly used for high density fiber optic cabling systems, fast cabling systems, backbone networks, high Integrated equipment and devices, data centers, SAN systems, etc.; Suitable for small to medium-sized wiring systems such as fiber to the community, fiber to the building.

ACCESSORIES
Rear extension plate with screw and nut (Optional)
12F or 8F MPO cassettes *12pcs
Velcro(12*100mm)*30 pcs
3*100mm cable ties *20 pcs
80*20mmlabel*30 pcs
Screw and nut *4 sets
FEATURES
Sliding rail design
Shorter chassis depth, only 330mm without rear palet.
Ultra-thin design
1U rack mount patch panel houses 3 independent sliding trays for 144 fibers, each independent tray has sliding rail to pull smoothly.
Cassettes installation
Each of sliding tray is able to hold 4 cassettes that pick up the fibers and their reserves.
Independent disassembly
Press the plastic shrapnel to pull it out, which can realize the single layer tray to be disassembled independently; Simply push in when install.
Cable entry
There are multiple cable entry method in the rear of patch panel: 1, Inlet through 12 pcs independent coils; 2, fixed by the Velcro and cable ties.
Rear plate
Rear extension plate can be chosen to meet actual wiring needs of users.




STANDARDS COMPLIANCE
Meet ROHS certification standards
Comply with CE certification standards
Comply with FCC certification standards
Passed ISO9001:2015
Compliance with the latest industry standards such as IEC
DIMENSION
PACKING INFORMATION




CASSETTE SPECIFICATION
