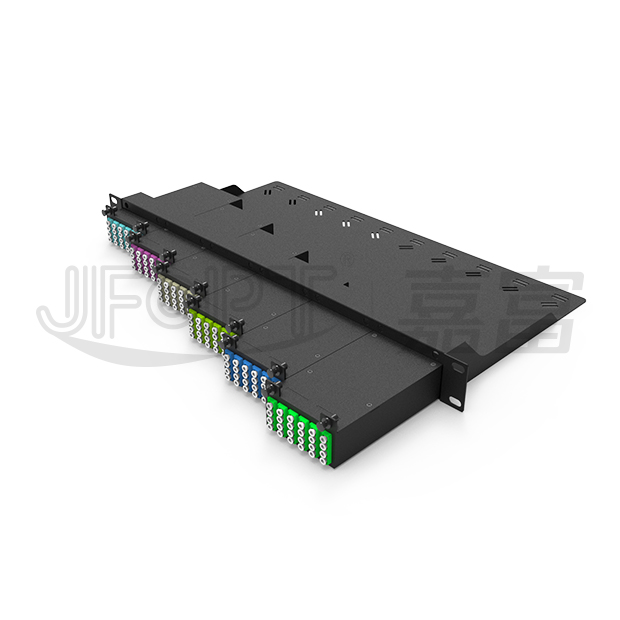

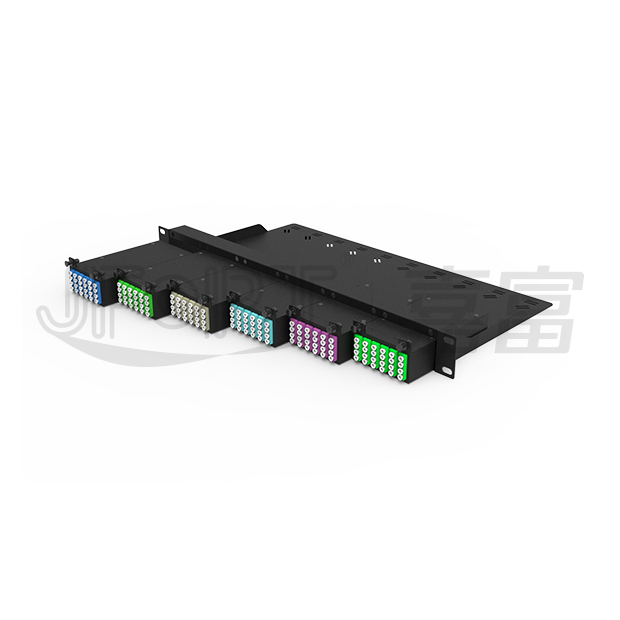

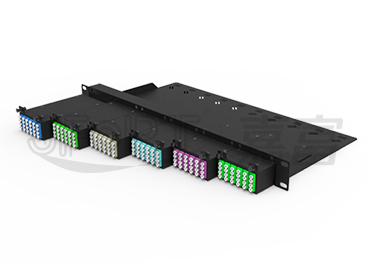

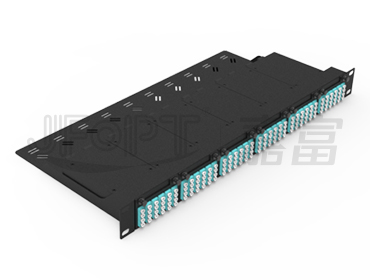

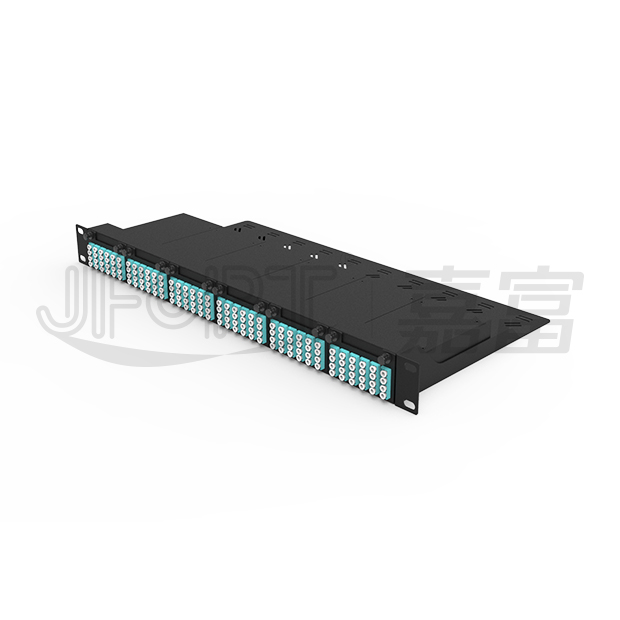

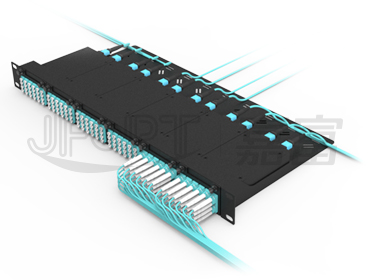

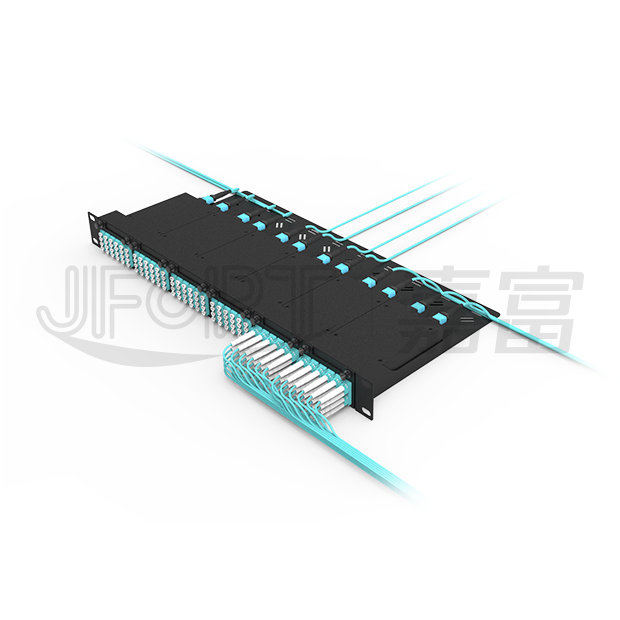

1U MPO/MTP patch panel open type

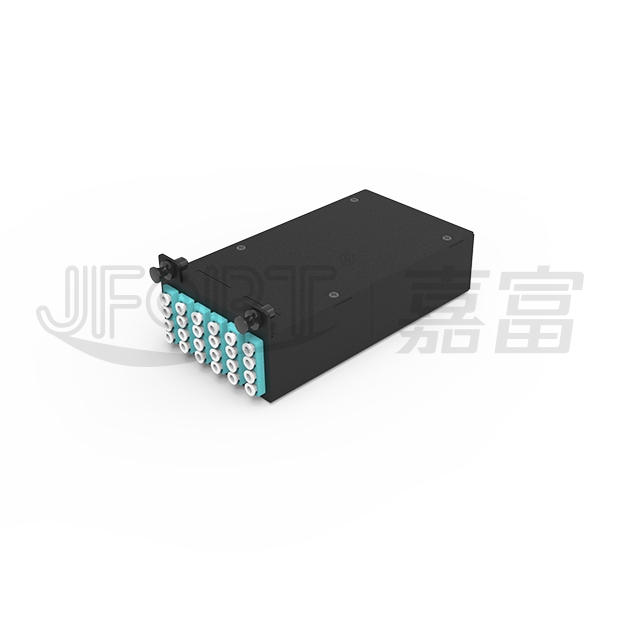

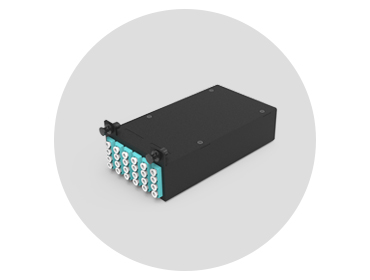

24-fiber MPO cassette / Max capacity 144 fibers / Data center

Model:JFOPP-MPO10-A-003

Purchase consultation

Product Specification

Data Sheets

Related Recommendation

DESCRIPTOPN

JFOPP-MPO10-A-003-00 MPO patch panel is designed in open structure, remarkably convenient for installation and operation. It is mainly applied to high density fiber optic cabling systems, fast cabling systems, backbone networks, high integrated equipment and devices, data centers, SAN systems, etc; suitable for small and medium wiring systems such as FTTZ, FTTB.

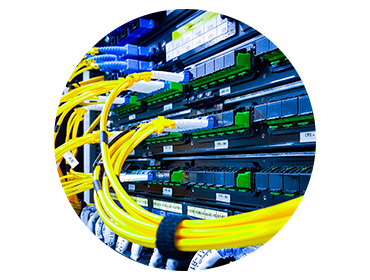

APPLICATION
