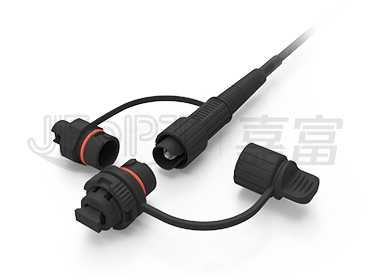

Mini Pre-connected Type Waterproof Connector
Reliable structure/Sealed design/Small size
Model:JFOPC-HE-MINI
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

The mini Pre-connected type waterproof connector is a compact and highly waterproof connector designed to be compatible with Huawei's field waterproof connectors. It is an economical, efficient, and convenient outdoor connector with sealing and mechanical protection capabilities. The overall size of the connector is small, and it can also provide a wall-through-tube traction application solution. Simply replace the wall-through cap to easily switch between wall-through and connection scenarios.The connector is made of special plastic material that is resistant to high and low temperatures, acid and alkali corrosion, and UV radiation. It is equipped with a waterproof sealant pad, the protection performance can reach IP67 level. The connector features blind mating functionality, offering a quick installation solution.

APPLICATION
Telecom system in harsh outdoor environment
Remote wireless base station
FTTx
FEATURES
Reliable Structure
The spiral bayonet mechanism ensures a long-term and reliable connection.
Quick Installation
The guiding mechanism has a blind mating function, allowing for a simple and fast connection installation.
Sealed Design
Features such as waterproofing, dust resistance, and corrosion resistance meet the IP67 protection level.
MINI Size
Built-in SC/MPO core.
Easy Scene Switching
Replace the wall-penetrating cap to easily switch between wall-penetrating and docking scenario applications.
STANDARDS COMPLIANCE
Comply with TIA/EIA standard
Passed IS09001:2015 certification
Comply with ROHS certification standard
Comply with IEC standard

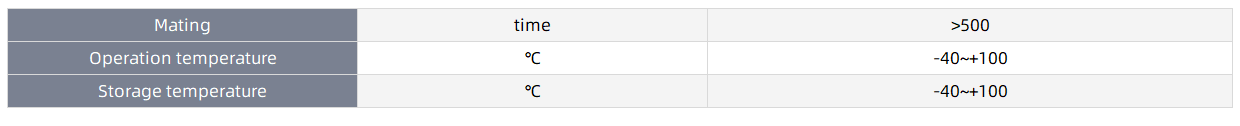

MECHANICAL PERFORMANCE
OPTICAL CABLE ADAPTATION INSTRUCTIONS




SWITCHING BETWEEN DOCKING and WALL-PENETRATION APPLICATION SCENARIOS

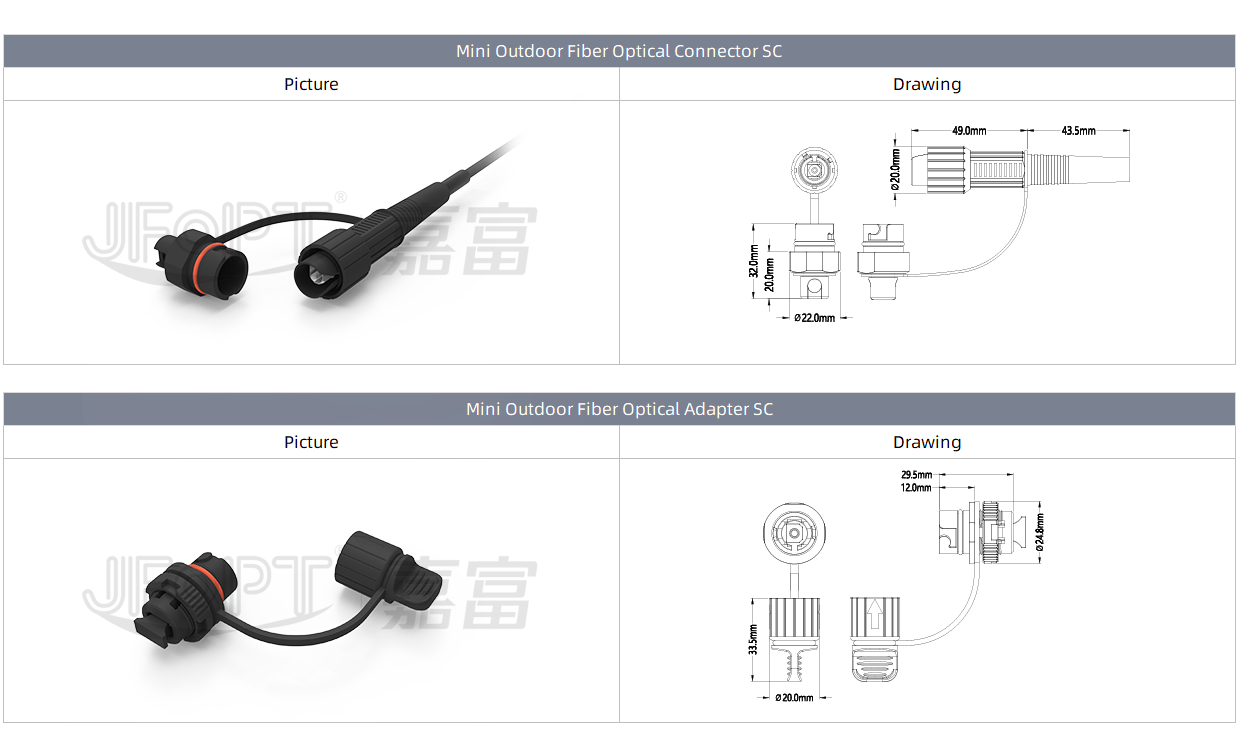

ADAPTER STYLE




WATERPROOF TERMINAL BOX STYLE
