With the development of intelligent office, smart home, and artificial intelligence, the generic cabling system is becoming an important transmission medium for intelligent buildings.
JFOPT generic cabling system solution provides a modular integrated wiring system with reasonable structure and convenient management.
Generic Cabling System

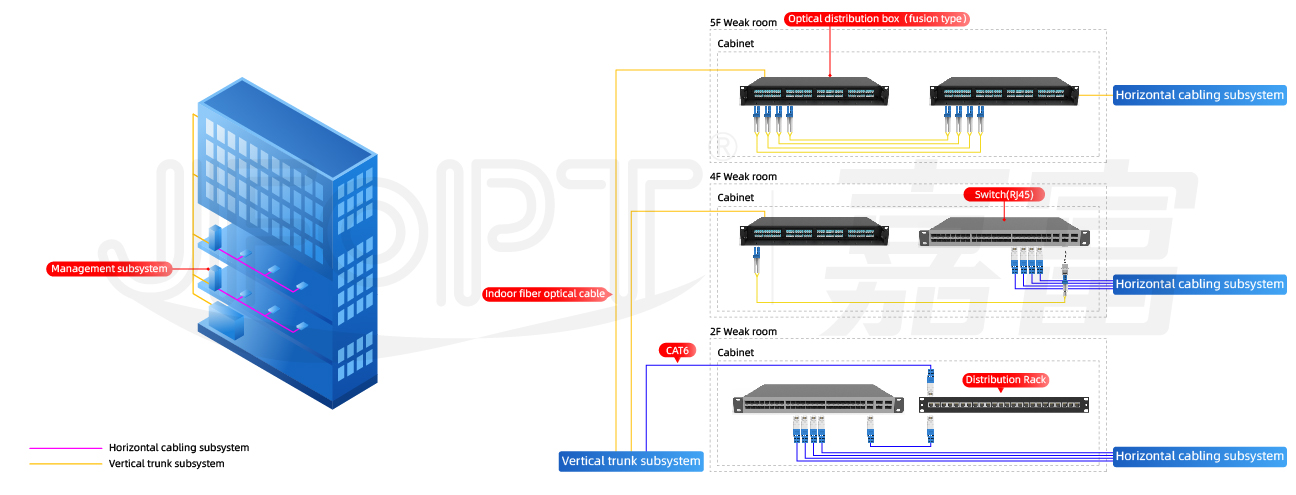

The generic cabling system is a transmission network installed in a building or the buildings. It can support the voice, data system and the automated management system in the building, and realize the resource sharing of the local area network and the wide area network. With the high popularity of networks, people have higher requirements for transmission networks and integrated cabling. Compared with the previous cabling, the generic cabling system has the characteristics of clear structure, strong flexibility, modularization and easy expansion.
Building Group Subsystem
Equipment Room Subsystem
Vertical Trunk Subsystem
Management Subsystem
Horizontal Cabling Subsystem
Work Area Subsystem
Building Group Subsystem
Building group subsystem refers to the transmission channel of data, voice and image between buildings.


Equipment Room Subsystem
Equipment room is the core of structured cabling, which manages the incoming lines of vertical cables and the building groups. The equipment room subsystem is the central unit of the entire cabling system. Its selection, layout and environmental conditions will directly affect the normal operation, maintenance and flexibility of the information system in the future. It is composed of cables, connectors and supporting hardware, and responsible for the connection of various devices between public systems.


Vertical Trunk Subsystem
The vertical trunk subsystem provides important copper or optical fiber lines in the building, making it the information transportation hub of the whole building. It is mainly used to connect the distribution room on each floor and the main distribution room until to the final equipment interface. Therefore, it must meet the current needs and adapt to the future development trend.



Management Subsystem
The management room is the intersection of the horizontal subsystem and the vertical subsystem. It manages the horizontal subsystem and the vertical subsystem. It can be set up on each floor or shared by several floors, for connecting the horizontal cables from the working area and the vertical cables from the main distribution room. The wiring closet shall be located in the weak current shaft or in a room near to the weak current shaft. It is used to install patch panel and the computer network communication equipment.



Horizontal Cabling Subsystem
The horizontal cabling subsystem is mainly responsible for extending the cables of the patch panel of the management subsystem from the trunk subsystem to the location of the information outlets. Generally, these systems are all on the same floor.

Work Area Subsystem
Work area subsystem, also known as service area subsystem, is an independent area where terminal equipment needs to be set up. It is composed of connecting cables and adapters extending from the information outlets of the horizontal subsystem to the workstation device. It may also include some specialized hardware so that signals can be received and sent through cables arranged in the work area. Generally, each work area is equipped with a telephone or computer terminal device, or according to user requirements.
