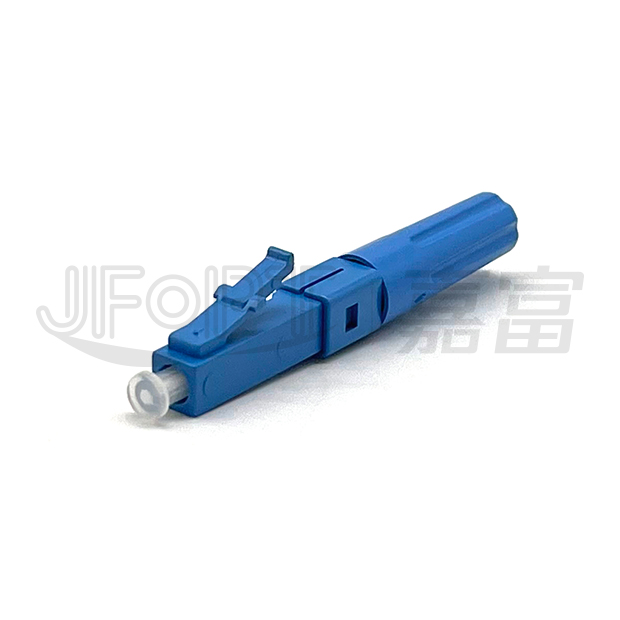

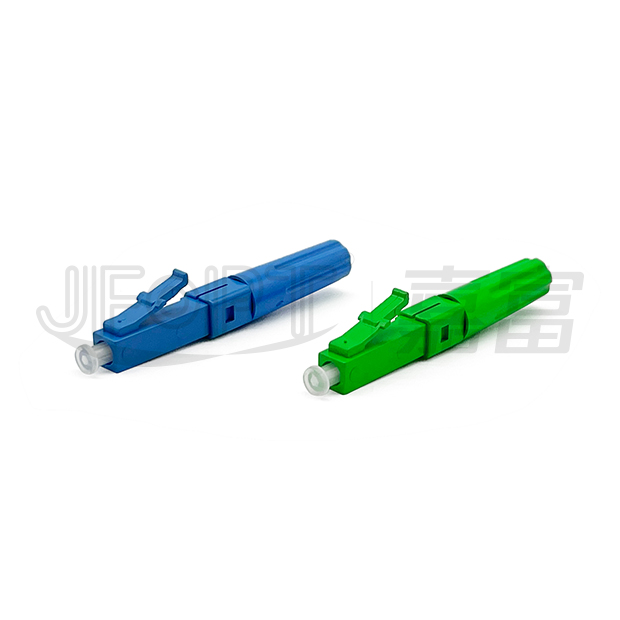

LC Fast Connector
Low cost / High reliability / Global hot sales / FTTx
Model:JFOFC-PLCA45A
Share:
Purchase consultation
Product Specification
Data Sheets
产品介绍
DESCRIPTION

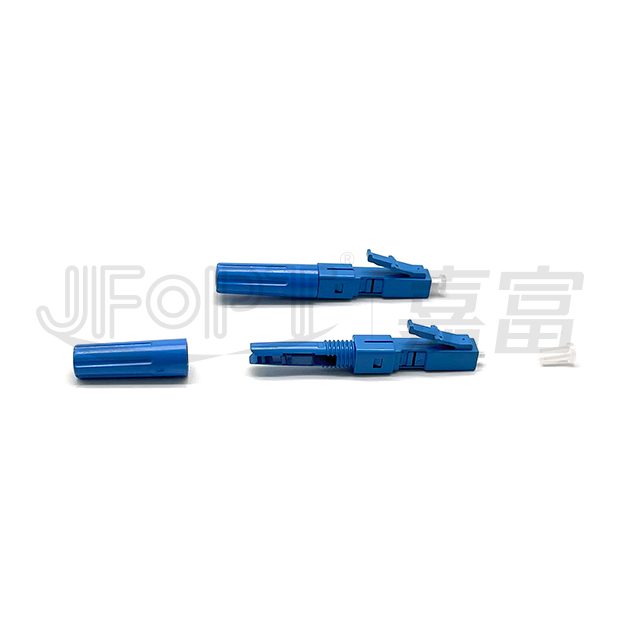

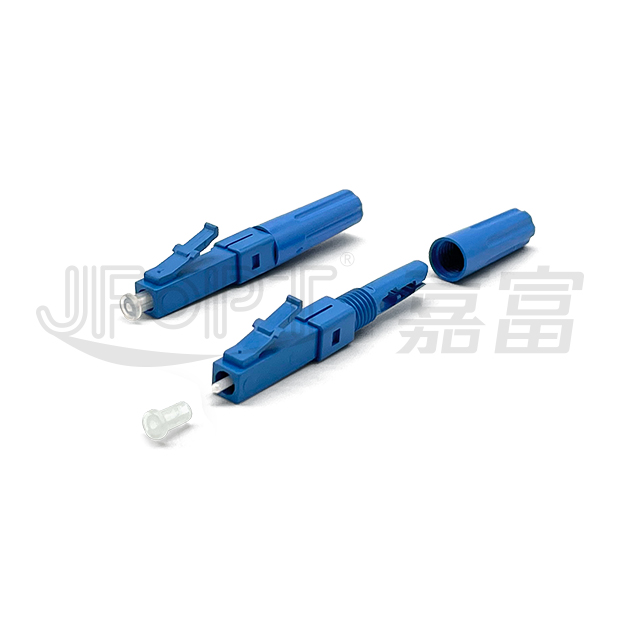

The optical fiber mechanical connector is mainly used for quick termination to connect fibers on site. JFOPT mechanical connector  JFOFC-PLCA45A is pre-embedded type,with total length 45mm. It can lock the optical cable by cable grip and boot cover and its V-groove can be re-opened by pushing the sliding fiber buckle. All the connectors provided by JFOPT have passed strict environmental test and mechanical test,to guarantee its reliability and stability.

APPLICATION
Fiber optical LAN
Optical fiber network equipment
FTTx
FEATURES
High quality materials

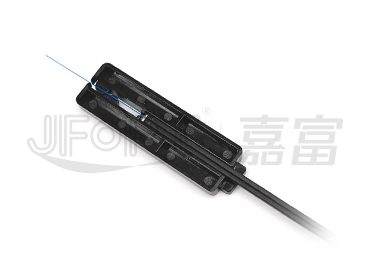

High precision V-groove and excellent matching gel adopted for the connector.
Stable and efficient
Pre-embedded fiber, stable performance and low loss, able to pass temperature cycling test.
Easy operation
No fusion splice requested,only stripper tool needed to assemble.
Simple stripping
The coating layer can be stripped through the fiber measuring tool without stripping tools, and the operation is simple.
STANDARDS COMPLIANCE
Compliance with TIA/EIA standards
Passed ISO9001:2015
Meet ROHS certification standards
Compliance with IEC certification standards

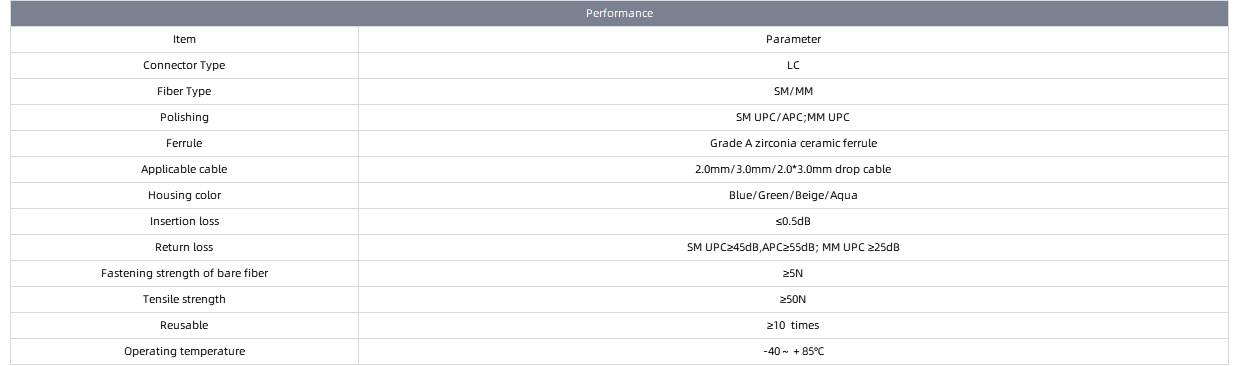

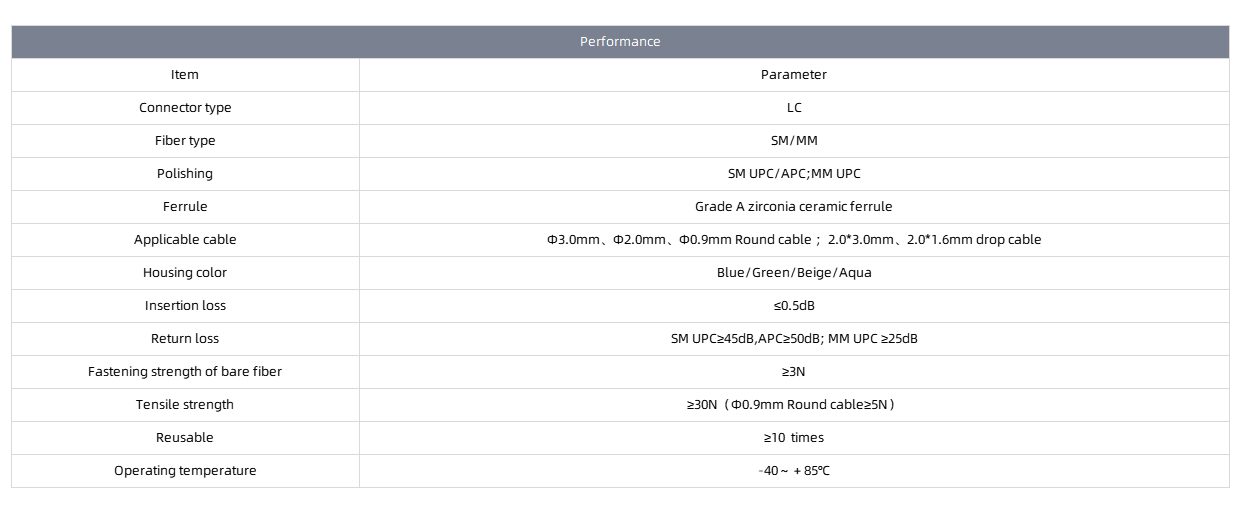

PERFORMANCE

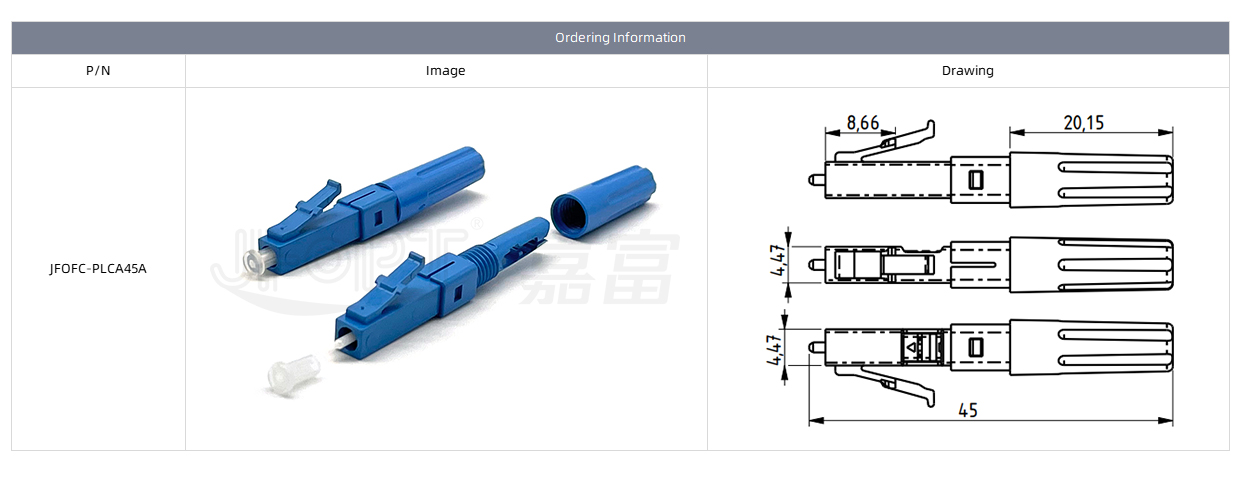

ORDERING INFORMATION
