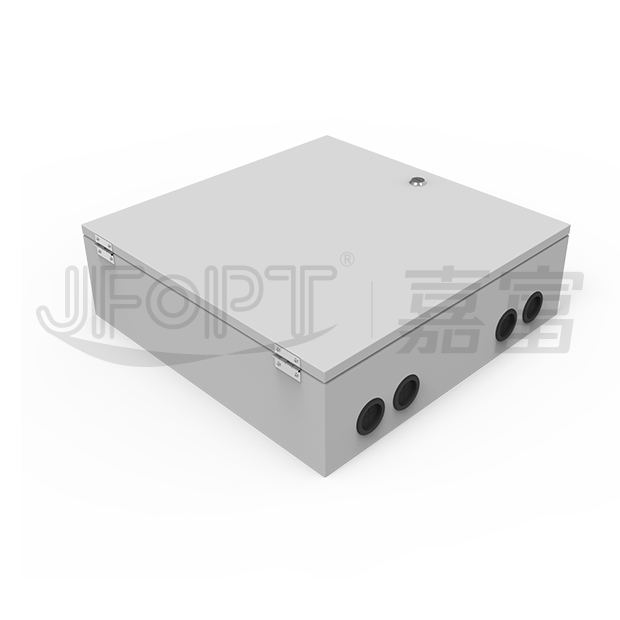

Outdoor Wall Mounted Patch Panel

Modualr adapter panel / Compatible with adapter SC, FC, ST and LC

Model:JFOPP-WMTO00-A-XXX

Purchase consultation

Product Specification

Data Sheets

DESCRIPTION

JFOPP-WMTO00-A-XXX distribution box is designed and manufactured for outdoor wall mounting, integrating the function of fiber fusion splicing, storage and distributing. It is mainly used for the termination and distribution of central trunk cables, to realize the connection, distribution and organization in optical fiber communication system. Suitable for small and medium wiring system such as FTTZ, FTTB.

FEATURES

Waterproof design

Adopt outdoor waterproof design, the protection grade can reach IP65.

Rational structure for convenient wiring

Its design constantly improved based on market demands, to make it more scientific and convenient for use.

Cable entry mode

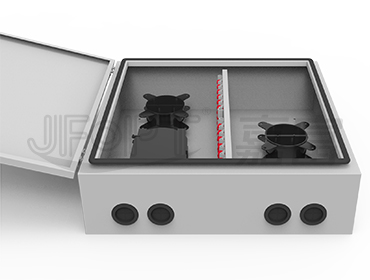

Total 4 cable inlets at the bottom of the patch panel, users can cut the dust-proof rubber ring to enter the cable according to different cable entry requirements.

Universal adapter panel

Various adapters can be installed on the same one panel, convenient for maintenance.

High quality materials

Made from the cold-rolled steel sheet and surface electrostatic sprayed. Uniform and smooth appearance, corrosion resistance, compression and impact resistance.

STANDARDS COMPLIANCE
