Handheld Fiber Optical Light Source
Multi wavelength / Modulated light output / Easy to carry
Model:JFTE-BTD-HOLS01
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

Handheld light source is a very important tester for fiber optical network, usually operated together with handheld optical power meter, as an ideal measurement solution on field. JFOPT light source JFTE-BTD-HOLS01 have 4 different options for output wavelength, to meet specific requirements, 650nm red source,  SM fiber 1310/1550nm, MM fiber 850/1300nm.

FEATURES
Multi-wavelength Output
It support optional 1~4 wavelength output.
Modulated light output
modulation frequencies CW, 2Hz at 650nm, modulation frequencies CW, 270Hz, 1KHz, 2KHz at other wavelength.
LCD screen
Provides a clear view display, backlit display supported.
Stability
output power stability ±0.05dB.
Automatic shutdown
Optional 10-minute automatic shutdown to increase battery time.

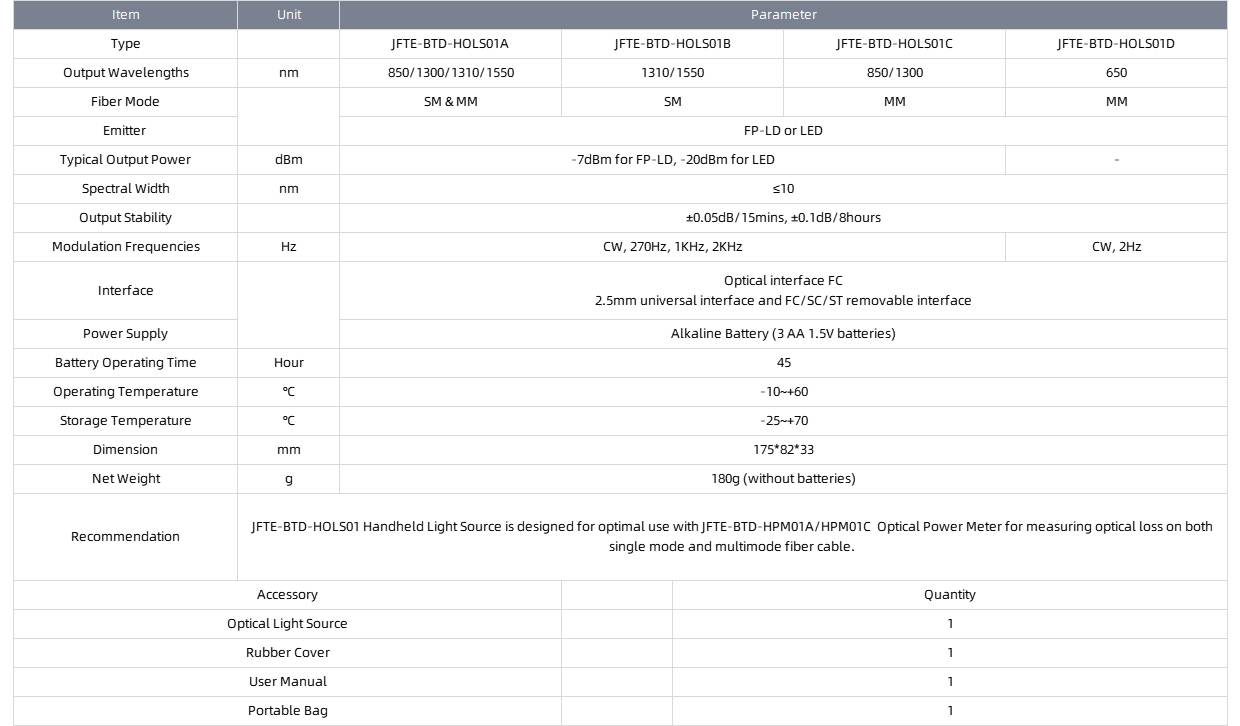

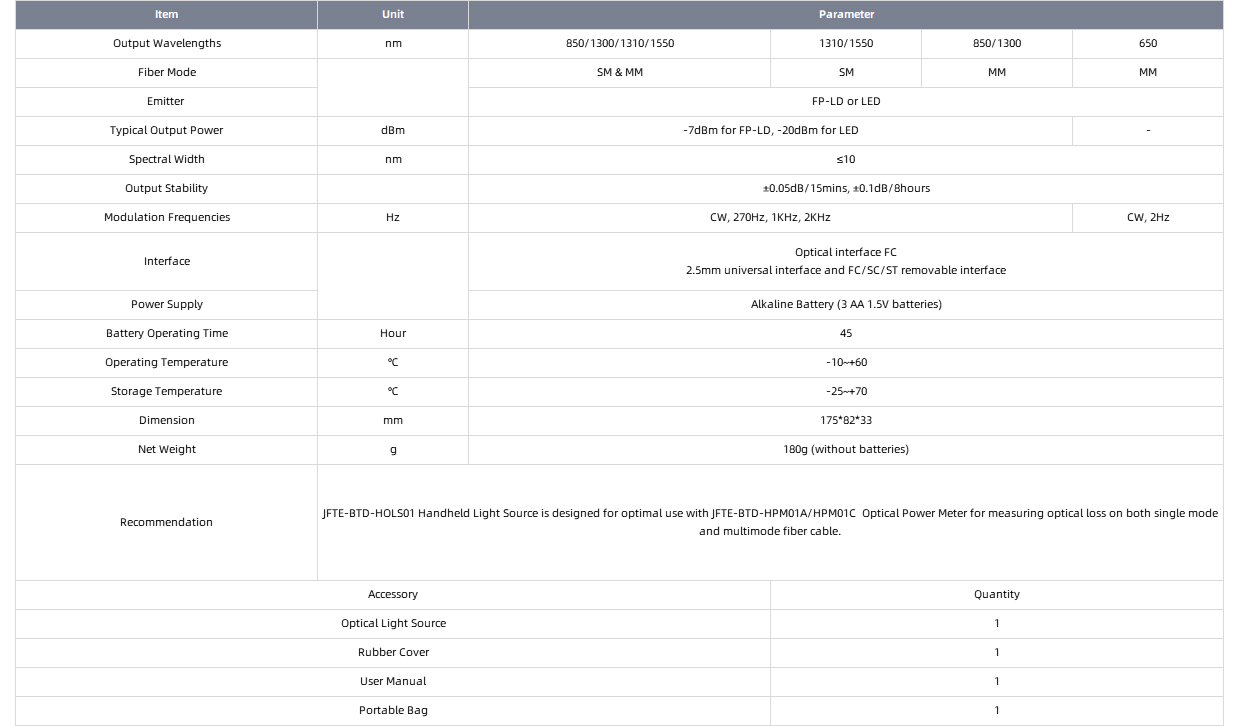

PERFORMANCE
OPERATING MANUAL

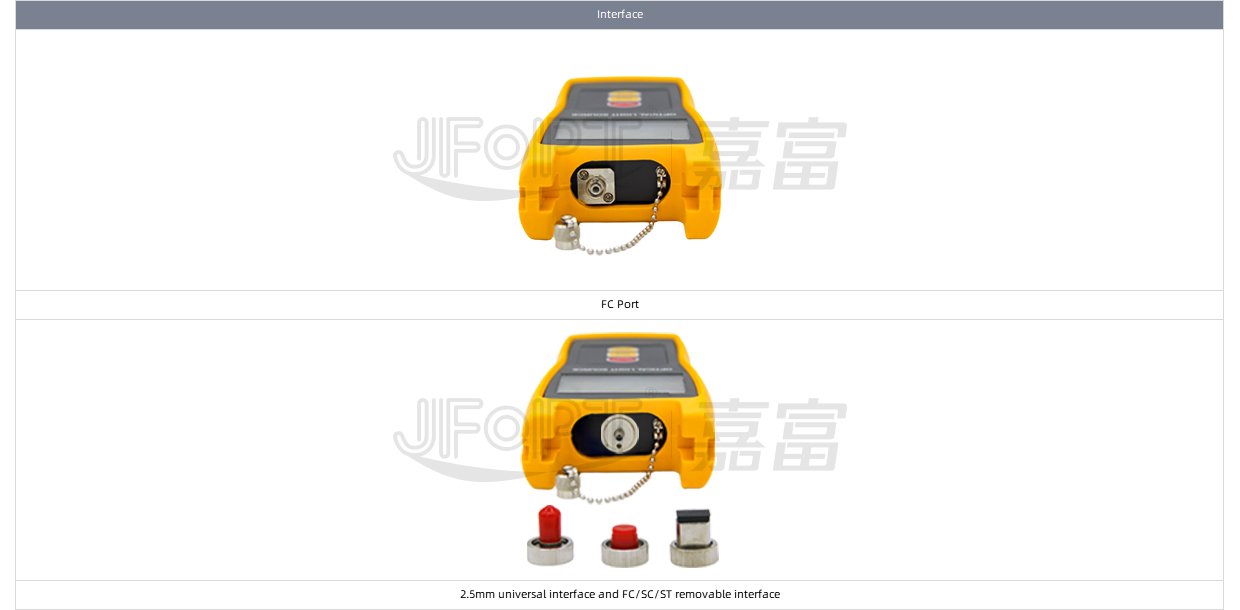

INTERFACE
