JFOPT SFP+ 10GBASE-T Copper Transceiver | 30m Multi-Rate RJ45

Product Model	JFTSM-SFP+CO-10A-003-RJ45	Manufacturer brand	JFOPT
Package Type	SFP+	Interface Type	RJ45
Max Data Rate	10.3Gbps	10G Effective transmission distance(OM4)	30m
Hot-Pluggable SFP	YES	Operating voltage	3.3V
Power Consumption	1.5W	Protocols	SFP MSA SFF-8472
Operating Temperature(Commercial)	-10℃~+70℃	Storage Temperature(Commercial)	-40℃~+85℃
Operating Temperature(Industrial)	-40℃~+85℃	Storage Temperature(Industrial)	-40℃~+85℃

PRODUCTION LINE INTRODUCTION

JFOPT continues to invest in optical transceiver production, covering a full range of optical transceiver such as 1*9, SFP, 10G, 25G, 100G, 200G, 400G, 800G GPON/EPON/XG/XGSPON OLT transceiver. At the same time, our company provides TOSA, ROSA, BOSA semi-finished device solutions for the downstream peer. JFOPT's production line has a daily production capacity of 10,000 optical transceivers and 20,000 optical devices. In addition, JFOPT's optical transceiver have industry-leading high temperature resistance and anti-interference capability, and are widely used in computing centers, operators, traffic security, power facilities and other industries.

PRODUCT PRESENTATION

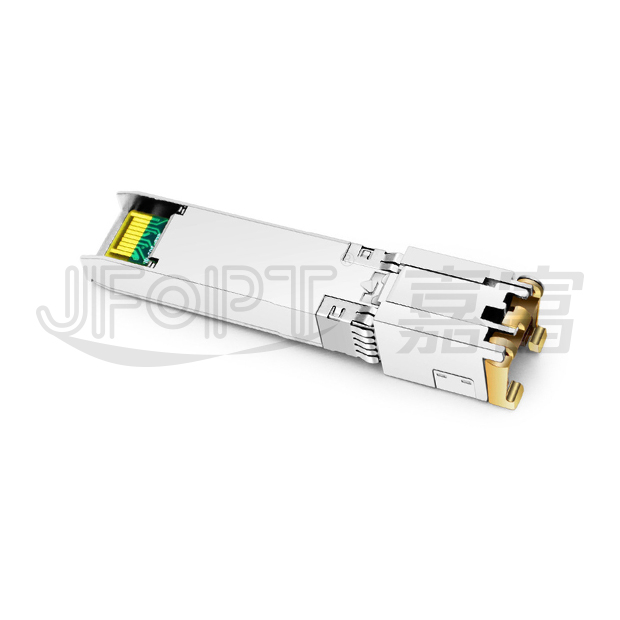

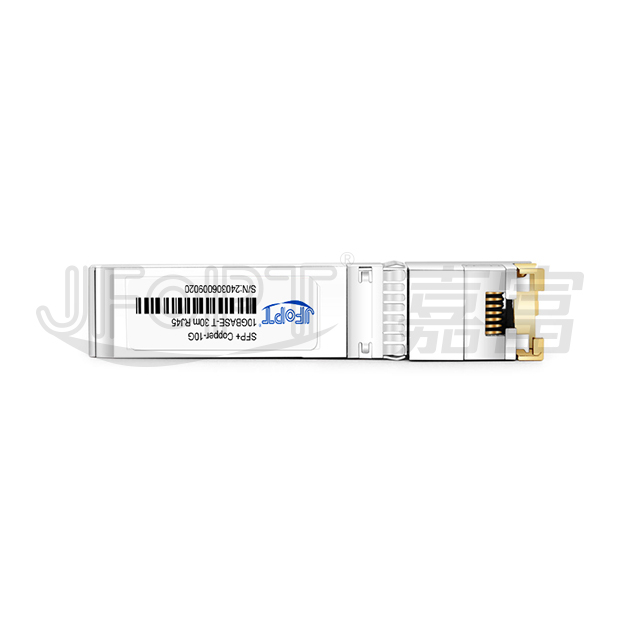

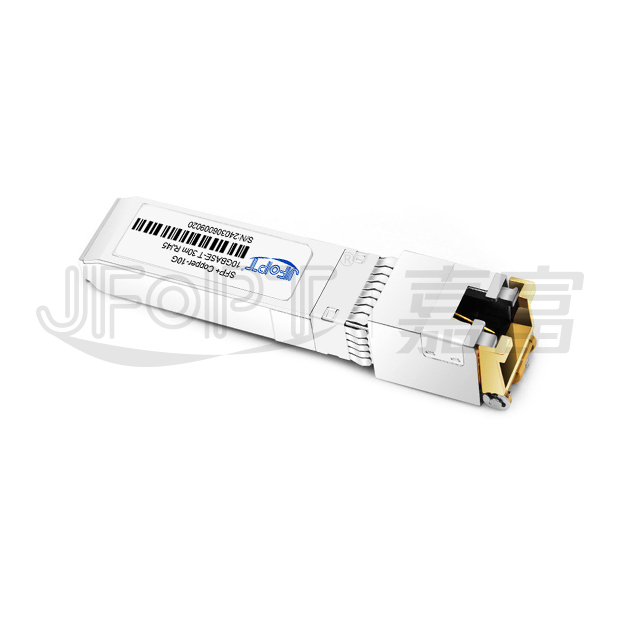

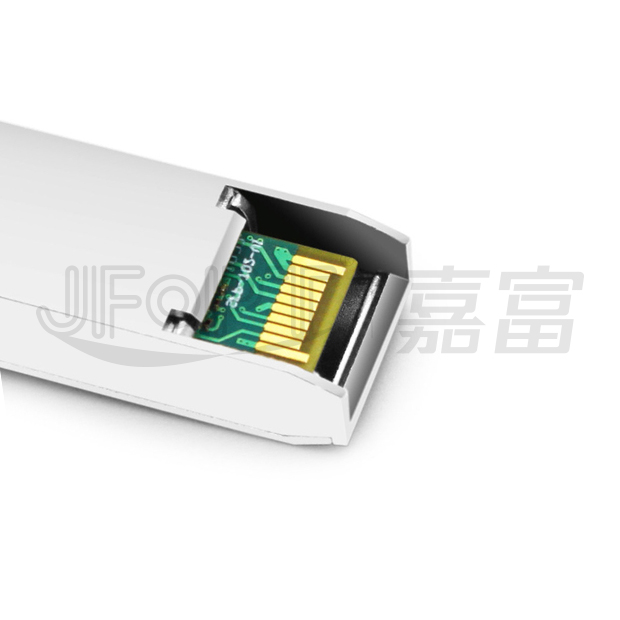

The JFOPT SFP+ Copper 10GBASE-T RJ45 transceiver Small Form Pluggable (SFP ) modules, with a reach of 30 meters, adhere to the SFP Multi Source Agreement (MSA). They are fully compliant with the 10GBASE-T, 1000BASE-T, and 100BASE-TX standards outlined in IEEE 802.3an, 802.3ab, and 802.3au.

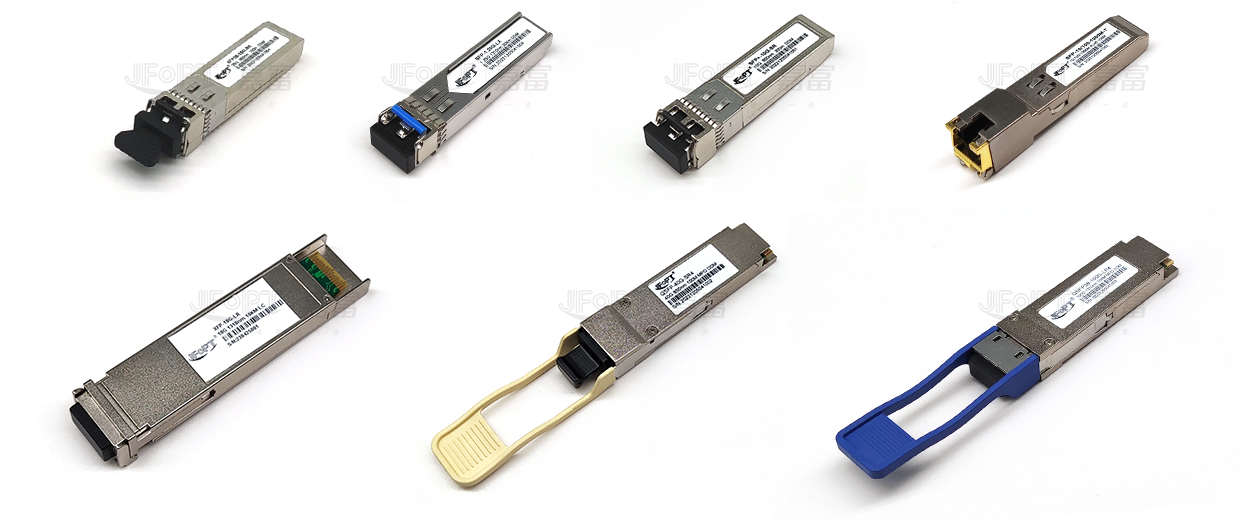

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

Support 10GBASE-T operation in host systems and auto-negotiation to lower speed					Support RX_LOS as Link indication function

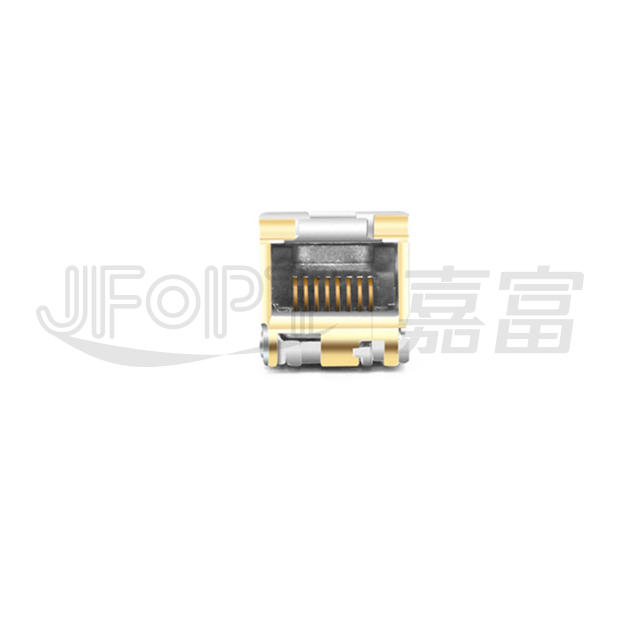

Hot-Pluggable SFP Footprint					Compact RJ-45 connector assembly
Compliant with SFP MSA					Operating case temperature： Extended：-10℃~70℃ Industrial: -40℃~85℃
Safety Certification: TUV/UL/FDA

APPLICATION

10G BASE-T IEEE 802.3an					5GBASE-T 802.3bz
2.5GBASE-T 802.3bz					1000BASE-T IEEE 802.3ab
100BASE-TX IEEE 802.3u					5GBASE-T Broadcom MGBASE-T
2.5GBASE-T Broadcom MGBASE-T

STANDARD COMPLIANCE

ORDER INFORMATION

Part No.		Data Rate	Media Type		Distance	Connector	Temperature
JFTSM-SFP+CO-10A-003-RJ45		10G	CAT6A/CAT7		30m	RJ45	Extended

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min.	Typ.	Max.	Units
Maximum supply voltage	Vcc	-0.5	-	4.0	V
Storage temperature	TS	-40	-	85	°C

NORMAL OPERATING CONDITION

Parameter	Symbol		Min	Typ.	Max	Units
Operating case temperature	Tc	JFTSM-SFP+CO-10A-003-RJ45	-10	-	70	°C
Supply voltage	Vcc		3.15	3.3	3.45	V

ELECTRICAL CHARACTERISTICS

Parameter	Symbol	Min	Typ.	Max	Units	Notes/Conditions
+3.3 Volt Electrical Power Interface
Supply Current	Icc	-	-	710	mA	JFTSM-SFP+CO-10A-003-RJ45
Input voltage	Vcc	3.15	3.3	3.45	V	-
Low-Speed Signals, Electronic Characteristics
SFP output low	VOL	0	-	0.5	V	4.7k to 10k pull-up to host_Vcc, measured at host side of connector
SFP output high	VOH	Vcc–0.5	-	Vcc+0.3	-	4.7k to 10k pull-up to host_Vcc, measured at host side of connector
SFP input low	VIL	0	-	0.4	-	4.7k to 10k pull-up to Vcc, measured at SFP side of connector
SFP input high	VIH	2.8	-	Vcc+0.3	-	4.7k to 10k pull-up to Vcc, measured at SFP side of connector
High-Speed Electrical Interface, Transmission Line-SFP
Tx output impedance	Zout,TX	-	100	-	Ohm	-
Rx input impedance	Zin,RX	-	100	-	Ohm	-
High-Speed Electrical Interface, Host-SFP
CML Inputs(Differential)	Vin	250	-	1200	mV	AC coupled inputs
CML outputs(Differential)	Vout	350	-	800	mV	CML outputs(Differential)
Rise/Fall time	Tr,Tf	-	20	-	psec	20%-80%
Tx input impedance	Zin	-	100	-	Ohm	Differential ended
Rx output impedance	Zout	-	100	-	Ohm	Differential ended

PIN DESCRIPTIONS

Pin No.	Name	Function	Plug Seq.	Notes
1	VeeT	Transmitter ground	1	-
2	TX Fault	Transmitter fault indication	3	Not used
3	TX Disable	Transmitter disable	3	Note1
4	MOD-DEF2	Module definition 2	3	Note2
5	MOD-DEF1	Module definition 1	3	Note2
6	MOD-DEF0	Module definition 0	3	Note2
7	RS0	No connection required	3	-
8	LOS	Loss of signal	3	RX_LOSS
9	RS1	No connection required	1	-
10	VeeR	Receiver ground	1	-
11	VeeR	Receiver ground	1	-
12	RD-	Inv. Received data out	3	-
13	RD+	Received data out	3	-
14	VeeR	Receiver ground	1	-
15	VccR	Receiver power	2	-
16	VccT	Transmitter power	2	-
17	VeeT	Transmitter ground	1	-
18	TD+	Transmit data in	3	-
19	TD-	Inv. Transmit data in	3	-
20	VeeT	Transmitter ground	1	-

Note1: TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7–10KΩ resistor. Its states are:

Low (0–0.8V): Transmitter on

(>0.8, < 2.0V): Undefined

High (2.0 – 3.465V): Transmitter Disabled

Note2: Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K–10KΩ

resistor on the host board. The pull-up voltage shall be VccT or VccR.

Mod-Def 0 is grounded by the module to indicate that the module is present.

Mod-Def 1 is the clock line of two wire serial interface for serial ID.

Mod-Def 2 is the data line of two wire serial interface for serial ID.

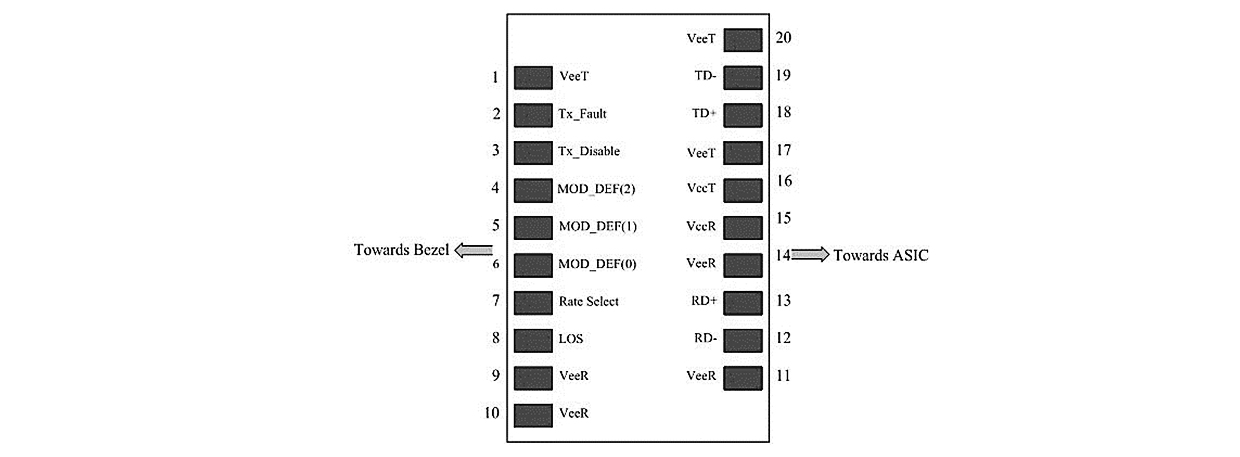

The following is the Diagram of host board connector block pin numbers and names

SERIAL COMMUNICATION PROTOCOL

JFOPT Copper SFPs support the 2-wire serial communication protocol outlined in the SFP MSA, These SFP use a 128 byte EEPROM with an address of A0H.

EEPROM SERIAL ID MEMORY CONTENTS

Accessing Serial ID Memory uses the 2 wire address 1010000X (A0H). Memory Contents of Serial ID are shown in Table 1.

Table 1 Serial ID Memory Contents
Data Addr	Field Size(Byte)	Name of Filed	Description of Field	Coded Value	Hex
BASE ID FIELDS
0	1	Identifier	Typeof serial transceiver	SFP+	03
1	1	Ext.Identifier	Extended identifier of type of serial transceiver	MOD_DEF 4	04
2	1	Connector	Code for connector type	RJ45	22
3	8	Transceiver	10G Ethernet compliance codes & infiniband compliance codes	-	00
4			Part of SONET compliance codes	-	00
5			SONET compliance codes	-	00
6			Ethernet compliance codes	-	00
7			Fiber channel link length & part of Fibre channel technology	-	00
8			Part of fiber channel transmitter technology	-	00
9			Fiber channel transmission media	-	00
10			Fiber channel speed	-	00
11	1	Encoding	Code for high speed serial encoding algorithm	64B/66B	06
12	1	BR, Nominal	Nominal signalling rate, units of 100MBd.	10.3Gbps	67
13	1	Rate Identifier	Typeof rate select functionality	-	00
14	1	Length(SMF,km)	Link length supported for single mode fiber, units of km	-	00
15	1	Length (SMF)	Link length supported for single mode fiber, units of 100 m	-	00
16	1	Length (50um)	Link length supported for 50um OM2 fiber, units of 10 m	-	00
17	1	Length (62.5um)	Link length supported for 62.5um OM1 fiber, units of 10 m	-	00
18	1	Length (Copper)	Link length supported for copper, units of meters	30m	1E
19	1	Length (OM3)	Link length supported for 50um OM3 fiber, units of 10 m	-	00
20	16	Vendor name	Vendor name (ASCII)	E	45
21				o	6F
22				p	70
23				t	74
24				o	6F
25				l	6C
26				i	69
27				n	6E
28				k	6B
29				-	20
30				-	20
31				-	20
32				-	20
33				-	20
34				-	20
35				-	20
36	1	Transceiver	Extended compliance codes	10GBASE-T Short Reach (30 meters)	1C
37	3	Vendor OUI	SF P vendor IEEE company ID	-	00
38				-	00
39				-	00
40	16	Vendor PN	Part number provided by vendor (ASCII)	E	45
41				O	4F
42				L	4C
43				T	54
44				-	2D
45				C	43
46				9	39
47				6	36
48				-	2D
49				0	30
50				2	32
51				/-	20/2D
52				/I	20/49
53				-	20
54				-	20
55				-	20
56	4	Vendor rev	Revision level for part number provided by vendor (ASCII)	1	31
57				.	2E
58				0	30
59				-	20
60	2	Wavelength	Laser wavelength	-	00
61	2	Wavelength	Laser wavelength	-	00
62	1	Reserved			00
63	1	CC_BASE	Check code for base ID fields (addresses 0 to 62)	Note3	xx
64	2	Options	Indicates which optional transceiver signals are implemented	TX_DISABLEsignal,Rx_LOS	00
65	2	Options		TX_DISABLEsignal,Rx_LOS	12
66	1	BR, max	Upper bitrate margin, units of %	-	00
67	1	BR, min	Lower bitrate margin, units of %	-	00
68	16	Vendor SN	Serial number provided by vendor(ASCII)	x	xx
69				x	xx
70				x	xx
71				x	xx
72				x	xx
73				x	xx
74				x	xx
75				x	xx
76				x	xx
77				x	xx
78				-	20
79				-	20
80				-	20
81				-	20
82				-	20
83				-	20
84	8	Date code	Vendor’s manufacturing date code	Year	xx
85				Year	xx
86				Month	xx
87				Month	xx
88				Day	xx
89				Day	xx
90				-	20
91				-	20
92	1	Diagnostic monitoring type	Typeof diagnostic monitoring is implemented	diagnostic monitoring is not implemented	00
93	1	Enhanced options	Optional enhanced features are implemented	Optional enhanced features are not implemented	00
94	1	SFF-8472 Compliance	Revision of SFF-8472 the transceiver complies with	Digital diagnostic functionality not included or undefined	00
95	1	CC_EXT	Check code for the extended ID fields (addresses 64 to 94)	Note4	xx

Note3. The check code shall be the low order 8 bits of the sum of the contents of all the bytes from byte 0 to byte 62, inclusive.

Note4. The check code shall be the low order 8 bits of the sum of the contents of all the bytes from byte 64 to byte 94, inclusive.

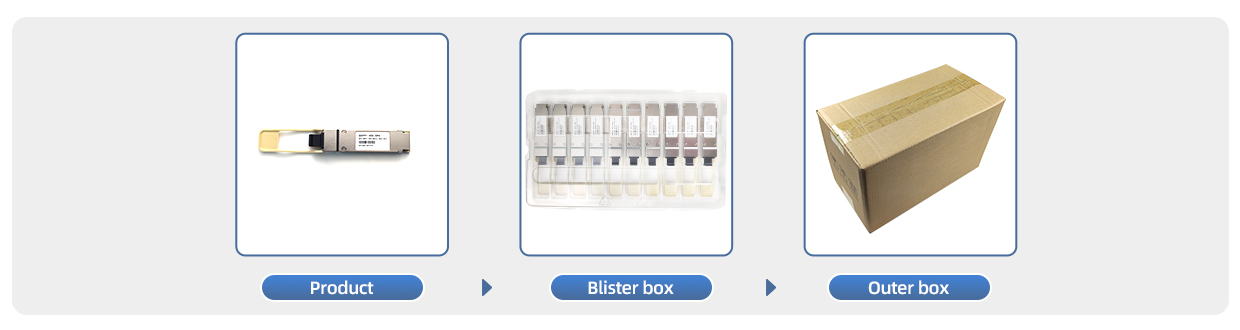

PRODUCT PACKAGING

PRODUCT CERTIFICATION

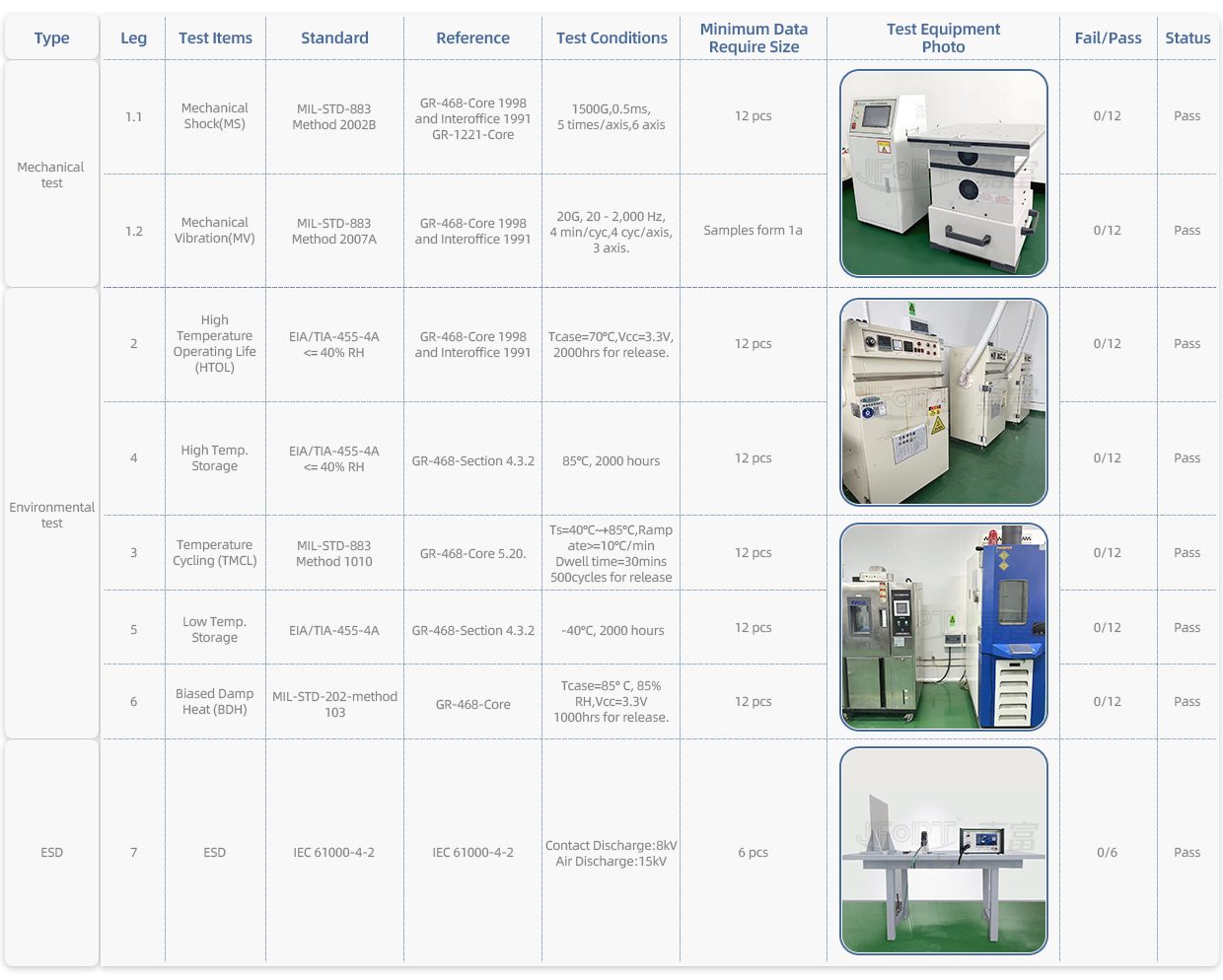

QUALITY ADVANTAGE
