200G QSFP28-DD LR8 Optical Transceiver
200G QSFP28-DD LR8 Optical Transceiver
200G Ethernet / Data center / Server / Switch
Model:JFTSM-QSFP28-DD-200GLR8
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

JFOPT QSFP28-DD 200G LR8 Optical Transceiver is developed and manufactured based on the standards IEEE 802.3ba and QSFP-DD MSA. Designed for LAN-WDM 8-wavelength singlemode optical fiber system, it is an eight channels full duplex transceiver, each lane data rate up to 25Gbps, and the highest data rate of the transceiver up to 206.25Gbps.

APPLICATION
100GBASE-LR4 Ethernet
Infiniband DDR/EDR
Datacenter
FEATURES
Hot-pluggable QSFP-DD form factor
Data rate up to 206.25Gbps (8 *25G NRZ)
8x25G NRZ DFB LAN-WDM transmitter and PIN receiver
Duplex LC optical interface
Up to 10km on SMF
All-metal housing for superior EMI performance
STANDARDS COMPLIANCE
Comply with QSFP-DD MSA
FDA compliant
Compatible with IEEE802.3ba
RoHS6 compliant (lead free)
TEMPERATURE CHARACTERISTICS
ELECTRICAL CHARACTERISTICS




OPTICAL PARAMETERS

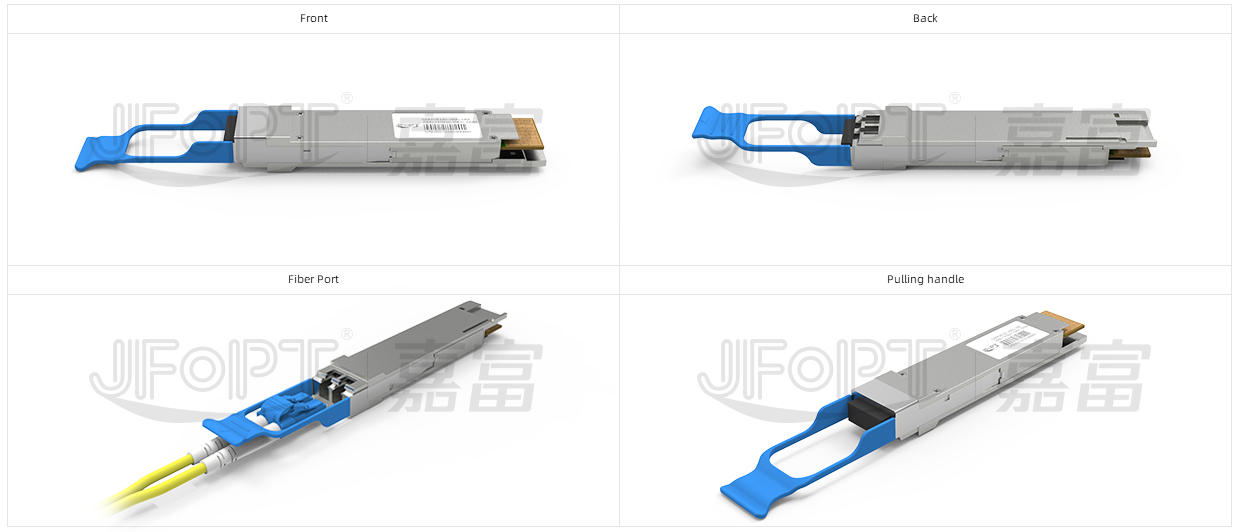

PRODUCTS DISPLAY




COMPATIBILITY
