QSFP56 200G SR4 Optical Transceiver
200G Ethernet / Data center / 5G Backhaul
Model:JFTSM-QSFP56-200GSR4
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

JFOPT QSFP56-200G-SR4 optical transceiver is developed and produced based on the standards IEEE 802.3cd and QSFP56 MSA. This transceiver, adopted VCSEL transmitter and pin receiver, is a high performance, low power consumption and short distance interconnection solution. Four independent transmit and receive channels are provided, each of them up to 50Gbps (PAM4), and the highest data rate of the transceiver up to 212.5Gbps.

APPLICATION
200GBASE-SR4 Ethernet (PAM4)
Infiniband interconnection
Datacenter
FEATURES
Hot-pluggable QSFP56 form factor
Data rate up to 212.5Gbps (4* 50G PAM4), 103.125Gbps (4* 25G NRZ) on demand
4 channels 850nm VCSEL array and PIN photo detector array
MPO12 or MPO8 optical interface
Maximum transmission distance of 70m on OM3 MMF and 100m on OM4 MMF
All-metal housing for superior EMI performance
STANDARDS COMPLIANCE
Comply with QSFP56 MSA
FDA compliant
Compatible with IEEE802.3cd
RoHS6 compliant (lead free)
TEMPERATURE CHARACTERISTICS
ELECTRICAL CHARACTERISTICS




OPTICAL PARAMETERS

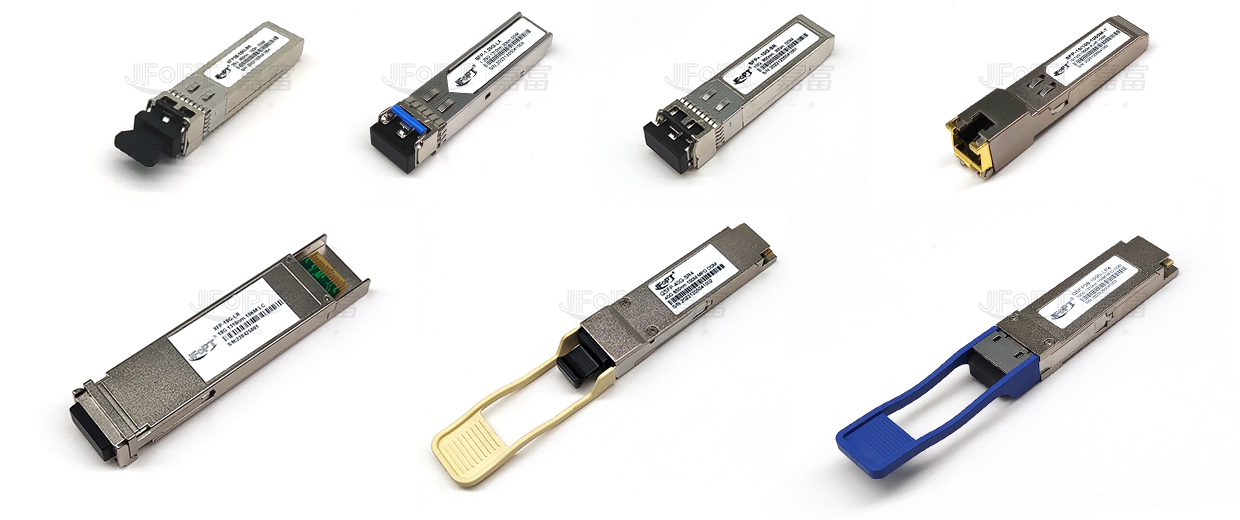

PRODUCTS DISPLAY




COMPATIBILITY
