QSFP56 200G LR4 Optical Transceiver
QSFP56 200G LR4 Optical Transceiver
200G Ethernet / Data center / 5G Backhaul
Model:JFTSM-QSFP56-200GLR4
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

JFOPT QSFP56-200G-LR4 optical transceiver is developed and produced based on the standards Ethernet IEEE 802.3cd and QSFP56 MSA. It, adopted LAN-WDM EML TOSA and PIN ROSA, is a four channels full duplex transceiver, each lane data rate up to 50Gbps(PAM4), and the highest data rate of the transceiver up to 212.5Gbps.

APPLICATION
200GBASE-LR4 Ethernet (PAM4)
Infiniband DDR/EDR
Datacenter
FEATURES
Hot-pluggable QSFP56 form factor
Data rate up to 212.5Gbps (4* 50G PAM4), 103.125Gbps (4* 25G NRZ) on demand
4 channels LAN-WDM EML transmitter and PIN ROSA
LC duplex optical interface
Up to 10km on SMF
All-metal housing for superior EMI performance
STANDARDS COMPLIANCE
Comply with QSFP56 MSA
FDA compliant
Compatible with IEEE802.3bs
RoHS6 compliant (lead free)
TEMPERATURE CHARACTERISTICS
ELECTRICAL CHARACTERISTICS




OPTICAL PARAMETERS

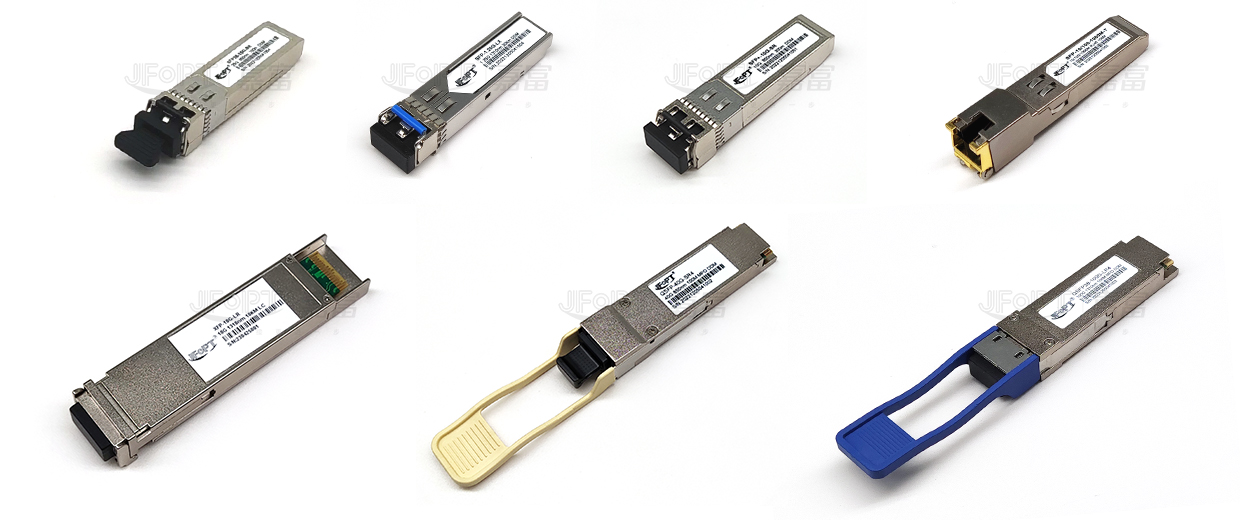

PRODUCTS DISPLAY




COMPATIBILITY
