LC High Density Connector
Pull tab / Pull-Push tab / High density / Easy plug
Model:JFOPC-LC(HD)
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

LC pull-tab connectors are optimized for high-density wiring. Compared with the currently available solutions, LC pull-tab connectors are equipped with pull-tab.Pull the pull tab to make the connector detach from the tightly arranged fiber optic adapter panel. JFOPT can provide various styles of pull-tab connectors, including switchable polarity, UNIBOOT, etc. Customers can choose according to their needs.

FEATURE
Easy to disassemble
The LC pull-tab connector utilizas a flexible "pull-tab" allowing for the connector to be disengaged easily form densely loaded panels without any special tools.
60% increase in density
There is no need for fingers to touch the latch mechanism of the LC connector directly, so it is can reduce the required spacing for LC adapter installation, the average installation density can be increased by 60%.

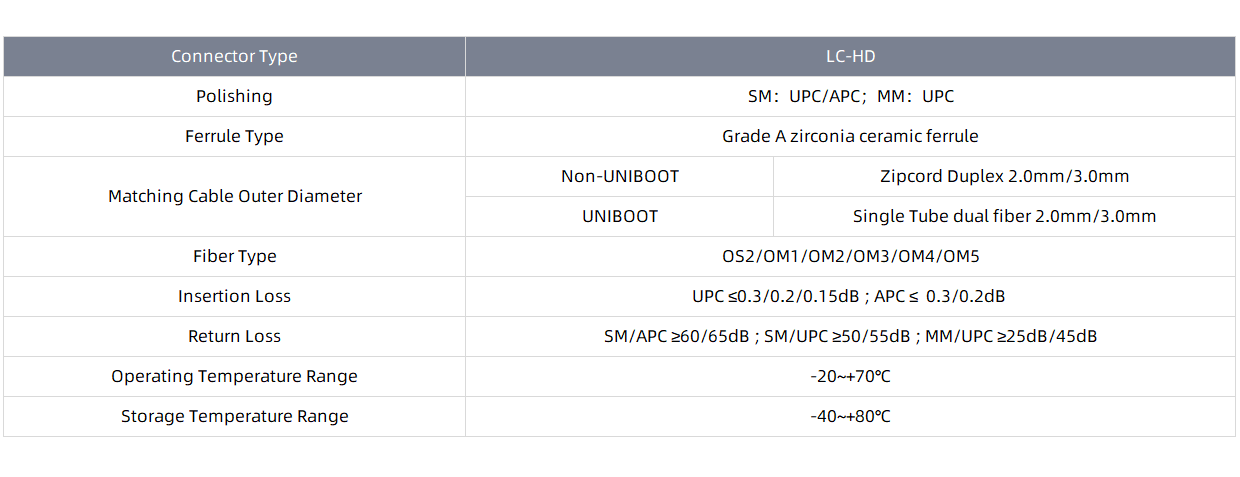

PERFORMANCE




STANDARDS COMPLIANCE
Compliant with TIA/EIA
Compliant with ISO9001:2015
Compliant with RoHS
Compliant with latest IEC standard
ORDERING INFORMATION
MAX. TRANSMISSION DISTANCE
