200G QSFP28-DD PSM8 10KM Optical Transceiver
200G QSFP28-DD PSM8 10KM Optical Transceiver
200G Ethernet / Data center / Server / Switch
Model:JFTSM-QSFP28-DD-200G10KMP
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

JFOPT 200G QSFP28-DD PSM8 optical transceiver uses 8 channels 1310nm DFB and PIN photo detector array, the transmission distance can be up to 10km by using singlemode optical fiber. The single channel speed can reach more than 25Gbps, and the highest speed of the optical transceiver can reach 206.25Gbps. It is widely used in data center and 200G Ethernet.

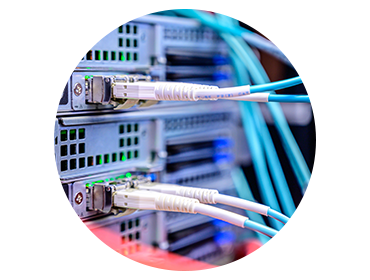

APPLICATION
2×100G Ethernet links
Infiniband interconnection
Datacenter
FEATURES
Hot-pluggable QSFP-DD form factor
Data rate up to 206.25Gbps (8 *25G NRZ)
8 channels 1310nm DFB array and PIN photo detector array
MPO24/APC optical interface
Up to 10km on SMF
All-metal housing for superior EMI performance
STANDARDS COMPLIANCE
Comply with QSFP-DD MSA
FDA compliant
Compatible with 100G PSM4 specification
RoHS6 compliant (lead free)

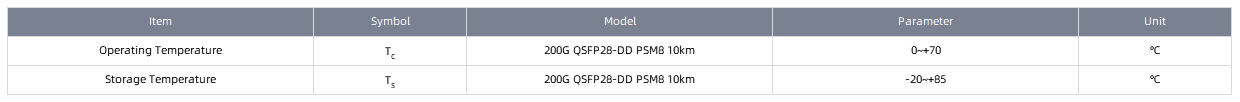

TEMPERATURE CHARACTERISTICS
ELECTRICAL CHARACTERISTICS




OPTICAL PARAMETERS

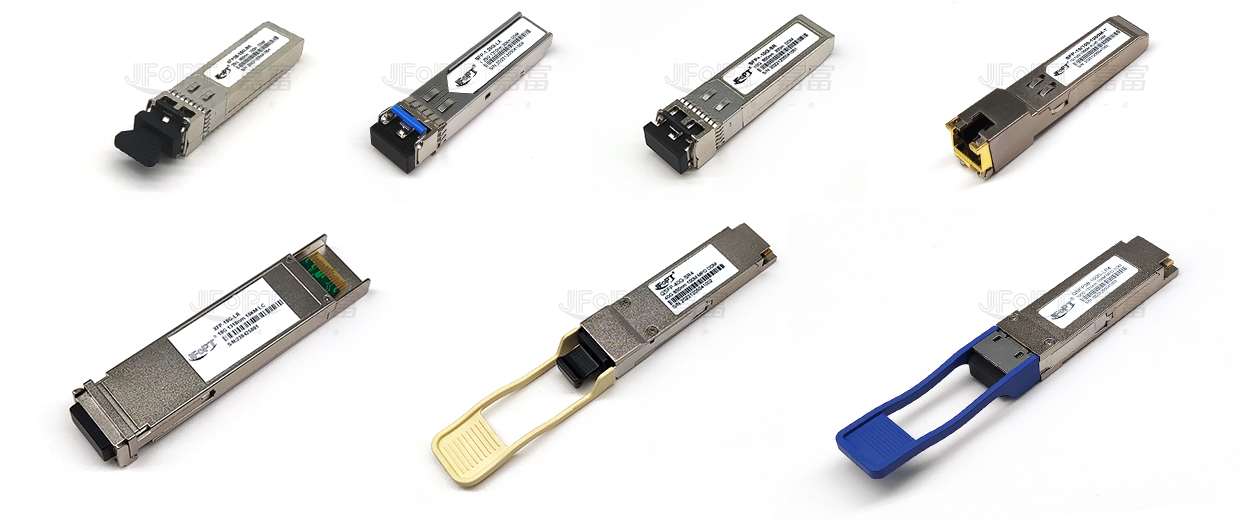

PRODUCTS DISPLAY




COMPATIBILITY
