400G QSFP-DD SR8 Optical Transceiver
400G QSFP-DD SR8 Optical Transceiver
400G Ethernet / Data center / Server / Switch
Model:JFTSM-QSFP-DD-400GSR8
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

JFOPT 400G QSFP-DD SR8 optical transceiver is developed and produced based on the Ethernet IEEE 802.3cd 200GBASE-SR and QSFP-DD MSA standards. It provides 8 independent 50Gbps (PAM4) channels, total bandwidth up to 425Gbps.

APPLICATION
400G Ethernet
InfiniBand Interconnect

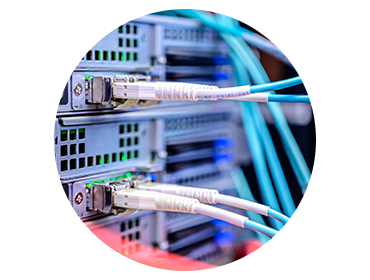

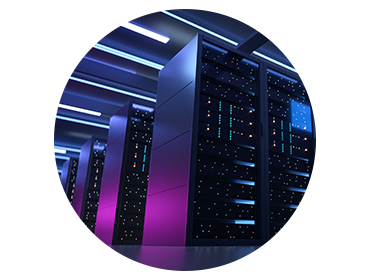

Datacenter
FEATURES
Hot pluggable QSFP-DD form factor
Data Rate 53Gbps per channel
8-channel 850nm VCSEL laser and PIN photodetector
MTP-24/MPO-24 PC interface or MPO-16/MTP-16 APC interface
Maximum transmission distance 100m on MMF OM4 or 70m on MMF OM3
All-metal housing for superior EMI performance
STANDARDS COMPLIANCE
Compliant with QSFP-DD MSA
FDA compliant
Compatible with IEEE802.3cd
RoHS6 compliant (lead free)

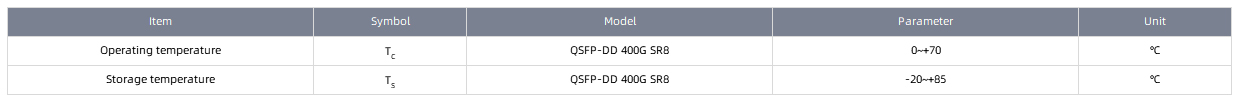

TEMPERATURE CHARACTERISTICS

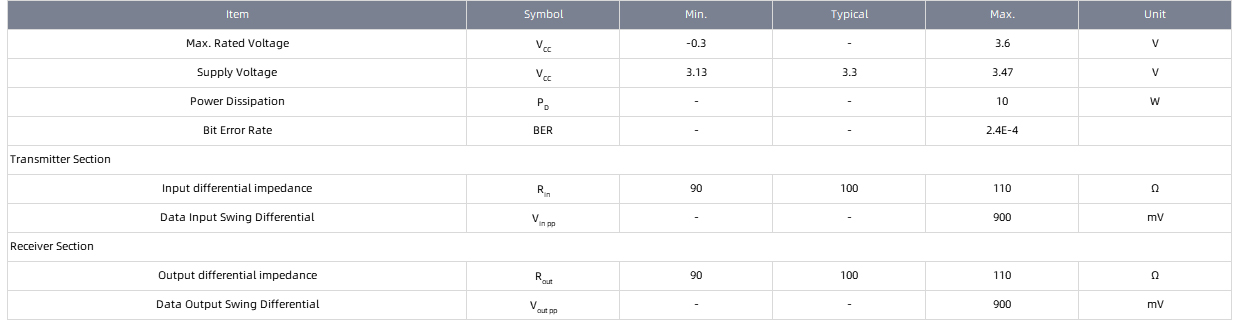

ELECTRICAL CHARACTERISTICS

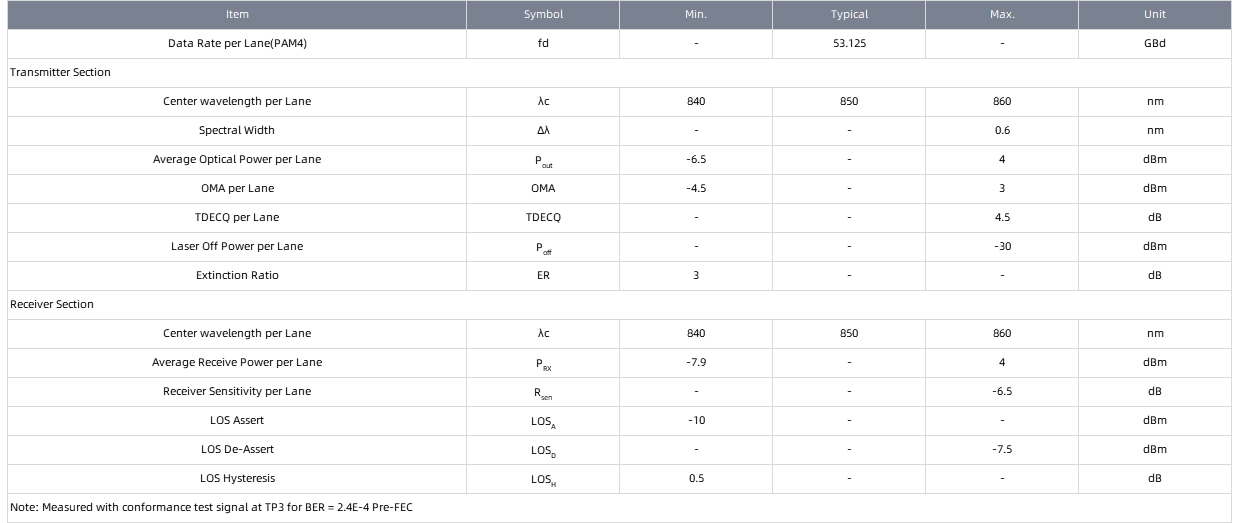

OPTICAL PARAMETERS

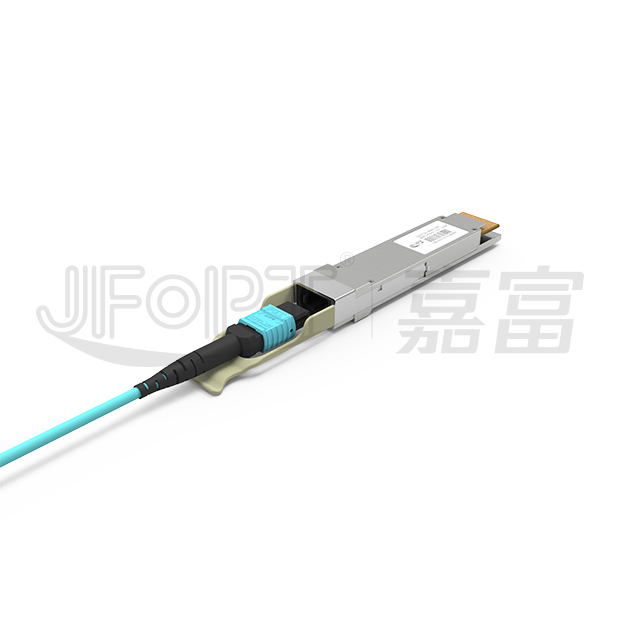

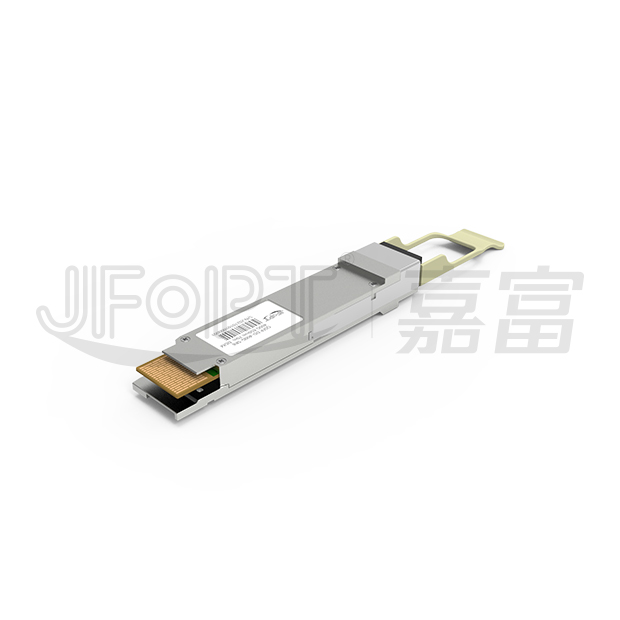

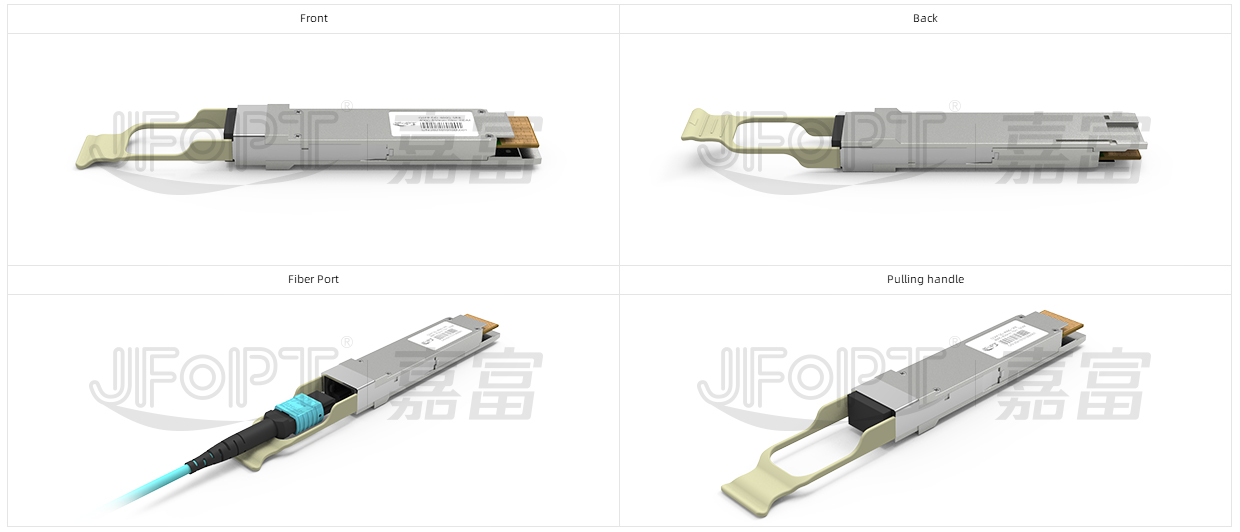

PRODUCTS DISPLAY




COMPATIBILITY
