Terminal Box with DIN Rail
network transmission system / CATV
Model:JFOPP-FTB00-A-003
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

The optical terminal box is mainly used for the connection and storage between the external optical fiber and the equipment pigtail. It provides mechanical and environmental protection for the fusion of optical fiber and optical fiber, the fusion of optical fiber and pigtail, and the connection of optical connector. Optical terminal box is widely used in network systems, data, image transmission systems, CATV cable TV series, etc. The slide rail type DIN terminat box can meet customers' needs when the rack type terminal box and the wall mounted terminal box can not open up additional space.

FEATURES
Ingenious design
There are oblique chamfer between the two sides and the back side of the box body, which can meet the use of the terminal box in the case of limited space.
Simple installation

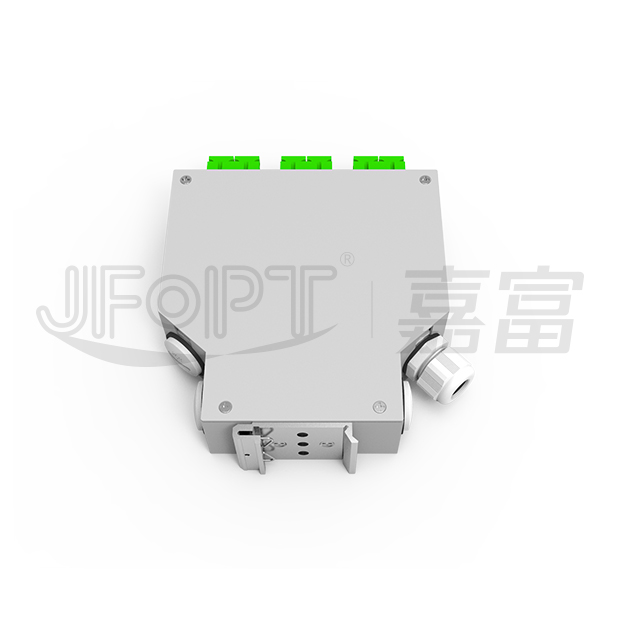

A DIN buckle is provided on the rear side of the box body, and the box body can be easily mounted to a predetermined position through the DIN buckle.
Cable entry
There are 4 through holes on the chamfer, the inlet fiber can be freely selected through the PG11 waterproof gland to match the 5-10mm optical cable.
Convenient wiring
The splice tray adopts a superimposed structure and can be disassembled and assembled separately, which is convenient and fast.

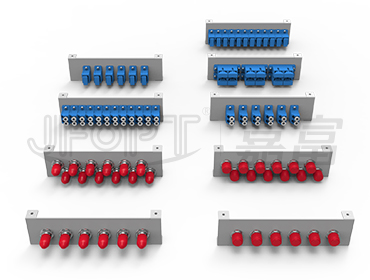

Adapter panels are optional
Different types of adapter panels with different core numbers can be selected according to customer needs to meet various wiring schemes.




ACCESSORIES
Cable tie (3*100mm)8pcs
Sinplex heat shrinlable tube* core1.5*60mm (According to the number of cores)
STANDARDS COMPLIANCE
Meet ROHS certification standards
Comply with CE certification standards
Comply with FCC certification standards
Passed ISO9001:2015
Compliance with IEC certification standards
DIMENSION
PACKING INFORMATION
