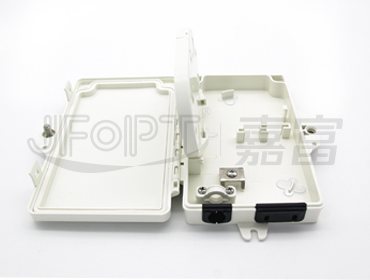

2 Fiber Distribution Box(1 in 2 out)
2 Fiber Distribution Box(1 in 2 out)
Robust structure / Compatible with LC and SC adapters / fiber splice and storage
Model:JFFDB-102-02B-FX
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

JFFDB-102B-FX fiber distribution box is used as a termination point for the cable to connect with drop cable in FTTx network system. It can function fiber splicing, splitting, distribution, storage and patching.

FEATURES
High mechanical strength
Made of PC and ABS, solid and insulated.
High IP level
Up to IP65, waterproof, dustproof.
Capacity of adapters
Max. 2 SC Simplex adapters or LC duplex adapters.
Scientific and reasonable space design
Reasonable design and ample space for fiber splicing and storage, to guarantee the min. bending radius 40mm.
Cable entry ports
1 entry port for 11mm cable, and 2 outlet ports for 2* 3mm drop cable.
Accommodate splitters
one 1*2 optical splitter can be installed.




ACCESSORIES
Expansion screw 3 sets
Protective sleeve 45mm 2 pcs
Nylon ties 5 pcs
Transparent tube 1 piece
Key 1 pc
STANDARDS COMPLIANCE
Compliant with RoHS
Passed ISO9001:2015
Compliant with IEC
DIMENSION
