8 Fiber Distribution Box(1 in 2 out)
8 Fiber Distribution Box(1 in 2 out)
Robust structure / Compatible with LC and SC adapters / fiber splice and storage
Model:JFFDB-102-08A-FX
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

JFFDB-102D-FX fiber distribution box is used as a termination point for the cable to connect with drop cable in FTTx network system. It can function fiber splicing, splitting, distribution, storage, and patching.

FEATURES
High IP level
Made of PC and ABS, waterproof, dustproof, up to IP65.
Easy to remove
Easy to remove or fix the top cover by clips.
Capacity of adapters
Max 8 SC simplex or 8 LC duplex adapters.
Scientific and reasonable space design
Reasonable design and ample space for fiber splicing and storage, to guarantee the min. bending radius 40mm.
Cable entry ports
1 gland entry port and 2 gland outlet ports, all for 6~12mm cable.
Accommodate splitters
one 1*4 or 1*8 optical splitter can be installed.




ACCESSORIES
Expansion screw 3 set

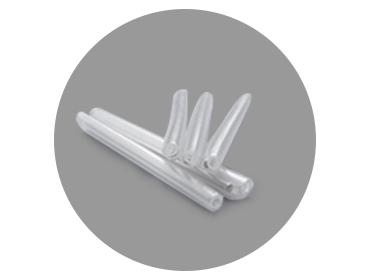

Protective sleeve 45mm 8 pcs
Nylon ties 4 pcs
STANDARDS COMPLIANCE
Compliant with RoHS
Passed ISO9001:2015
Compliant with IEC
DIMENSION
