8 Fiber Distribution Box(2 in 8 out)
8 Fiber Distribution Box(2 in 8 out)
Robust structure / Compatible with LC and SC adapters / fiber splice and storage
Model:JFFDB-208-08B-FX
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

JFFDB-208B-FX fiber distribution box is used as a termination point for the cable to connect with drop cable in FTTx network system. It can function fiber splicing, splitting, distribution, storage, and patching.

FEATURES
High mechanical strength
Made of PC and ABS, solid and insulated.
High IP level
Up to IP65, waterproof, dustproof.
Capacity of adapters
Max. 8 SC Simplex adapters or LC duplex adapters.
Scientific and reasonable space design
Reasonable design and ample space for fiber splicing and storage, to guarantee the min. bending radius 40mm.
Cable entry ports
2 gland entry ports, for 6~12mm cable, 1 output ports for 11.0mm drop cable.
Accommodate splitters
two 1*4 or 1*8 optical splitters can be installed.




FEATURES
Mounting method
wall mounting, pole mounting (hoop clamp is requested).
STANDARDS COMPLIANCE
Compliant with RoHS
Passed ISO9001:2015
Compliant with IEC




ACCESSORIES
Expansion screw 4 sets

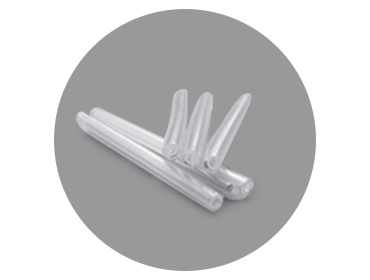

Protective sleeve 55mm 8 pcs
Nylon ties 4 pcs
Rubber piece and fixing parts for entry port 8 set
Key 2 pcs
Hoop clamp 2pcs (Optional, for pole mounting)
DIMENSION
