GYTA53
PE sheath / conduit / Overhead / Direct buried
Model:JFOC-GYTA53
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

The structure of GYTA53 is to sheath 250μm fiber into a high modulus loose tube (PBT). The tubes are filled with water-resistante filling compound. A steel wire, especially sheathed with polyethylene (PE) for high fiber count cable, locates in the center of cable as a strength member. PBT tubes (and fillers) are stranded around the strength member into a compact and round shape. The gap between the tubes is filled with water blocking compounds. Aluminum Polyethylene Laminate( APL) is applied around the stranded loose tubes then the PE is extruded as an inner sheath and armored with corrugated steel tape(PSP). Finally, completed with PE outter sheath.

PROFILE VIEW
CABLE PARAMETERS




APPLICATION
PIPELINE
AERIAL
BURIED
FEATURES
Reliable structure
The stranded structure and the central metallic strength member provides high tensile strength.
Excellent environmental performance:
PE sheath has good UV resistance and temperature performance.
High protection
Double armor layers Aluminum Polyethylene Laminate( APL) and corrugated steel tape(PSP), excellent moisture-proof performance.
符合标准
STANDARDS COMPLIANCE
Passed ISO9001:2015
Meet ROHS certification standards
Compliance with IECcertification standards
COLOR CODING
MECHANICAL PERFORMANCE

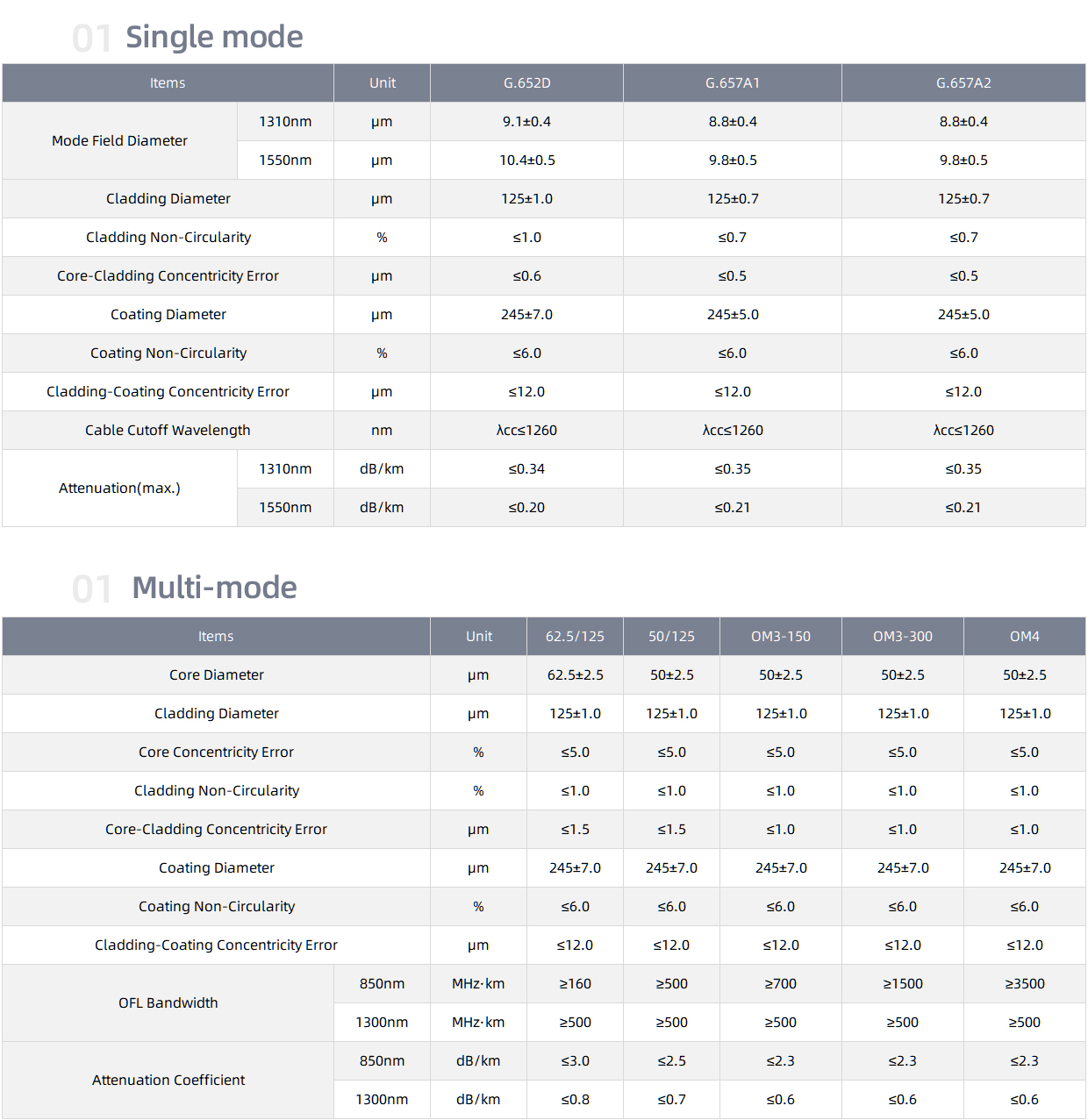

FIBER PARAMETERS
