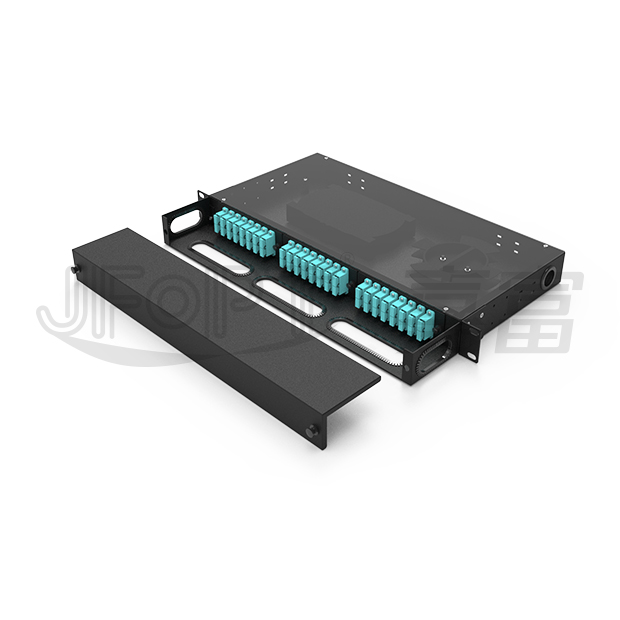

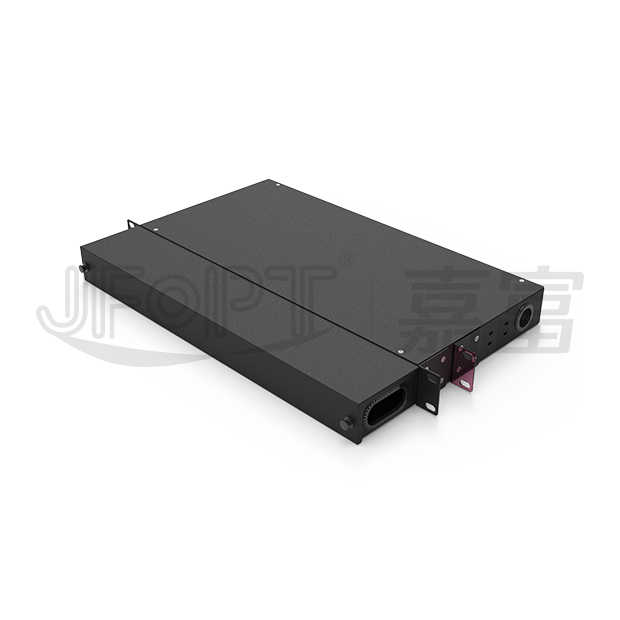

1U fixed patch panel
Modular design / convenient wiring / FTTZ / FTTH
Model:JFOPP-RMP10-A-004/004F
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTOPN

JFOPP-RMP10-A-004/004F Sliding rail drawer design patch panel, with functions of fiber fusion splicing, storage and distributing, mainly used for the termination and distribution of central trunk cables in optical fiber communication systems, which can conveniently realize the connection, distribution and scheduling of the optical fiber line. Suitable for small and medium wiring systems such as FTTZ, FTTB.

FEATURES
Modular Panel
Removable modular design can achieve rapid replacement and wiring, and reach max capacity 96 fibers in 3 Modular Panels.
Convenient distribution
Classic layout design, Jiafu has continuously improved with the feedback of the market for decades, ensuring scientific design and convenient use.
Cable entry mode
Four 21mm cable inlets at the back of the patch panel, dust apron can be cut according to usage.
Adjustable mounting ears
The both mounting ears are adjustable by using different fixing hole, to meet the actual wiring requirements.
Optional extra cable organizing panel
Extra cable organizing panel is optional for front cable management and labelling.
STANDARDS COMPLIANCE
Meet ROHS certification standards
Meet CE certification standards
Meet FCC certification standards
Passed ISO9001:2015
Comply with the latest IEC industries standards
DIMENSION




ACCESSORIES INFORMATION
3*100mm Cable ties
8pcs
Simplex heat shrinkable tub
Same as the fiber count.Over 24 cores type is equipped with special 24 slot splice stray, with 1.0*60mm(steel tube diameter* heat shrinkable length) simplex heat shrinkable tube.
M6*16mm Scew and nut
4sets
Front cable management frame (with mounting screw)
Optional
ORDERING INFORMATION
PACKING INFORMATION
