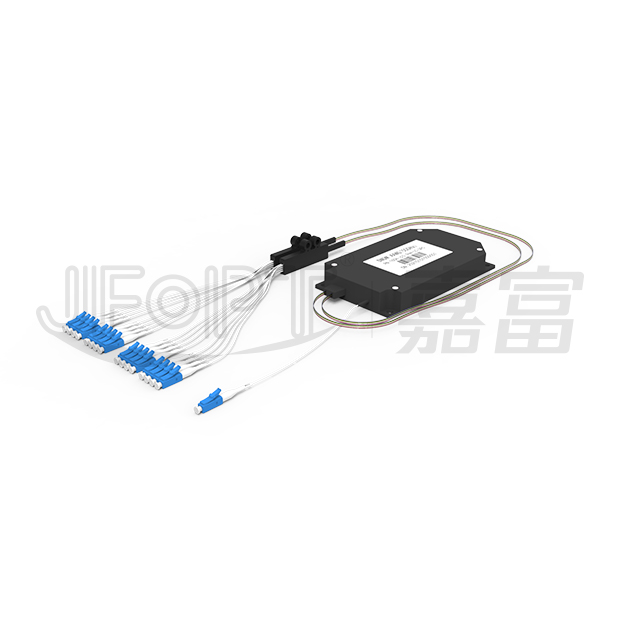

DWDM AAWG(50GHz)
Low insertion loss / High isolation / High reliability / Good stability
Model:JFOD-WDM-MDAA50
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
DESCRIPTION

The DWDM AAWG is a completely passive DWDM solution based on PLC technology, which does not need addtional power supply or temperature control. Compared with the traditional DWDM , AAWG  has the advantages of high integration, good uniformity, low PMD, and low insertion loss. A variety of channels and expansion ports can be provided for customers to choose. Due to the multi-channel characteristics of DWDM AAWG, it is widely used in long distance signal transmission such as metropolitan area networks, backbone networks, and data centers.

FEATURES
Low Insertion Loss
The lower insertion loss enables DWDM devices to have lower signal attenuation when used in WDM systems, thereby reducing the power requirements of the signal transmitter.
High Isolation
The higher isolation value enables DWDM devices to fully isolate signals when transmitting multiple signals in WDM system, and effectively prevent transmission signal distortion caused by crosstalk.
Two Chip Types
Gaussian type has low indertion low and high isolation; Flat top type has wide working band and stable signal.
STANDARDS COMPLIANCE
Passed ISO9001:2015
Comply with ROHS certification standards
Comply with Telcordia GR-1209-2001 standard
Comply with Telcordia GR-1221-1999 standard




APPLICATION
Optical communication system
Data center
CATV

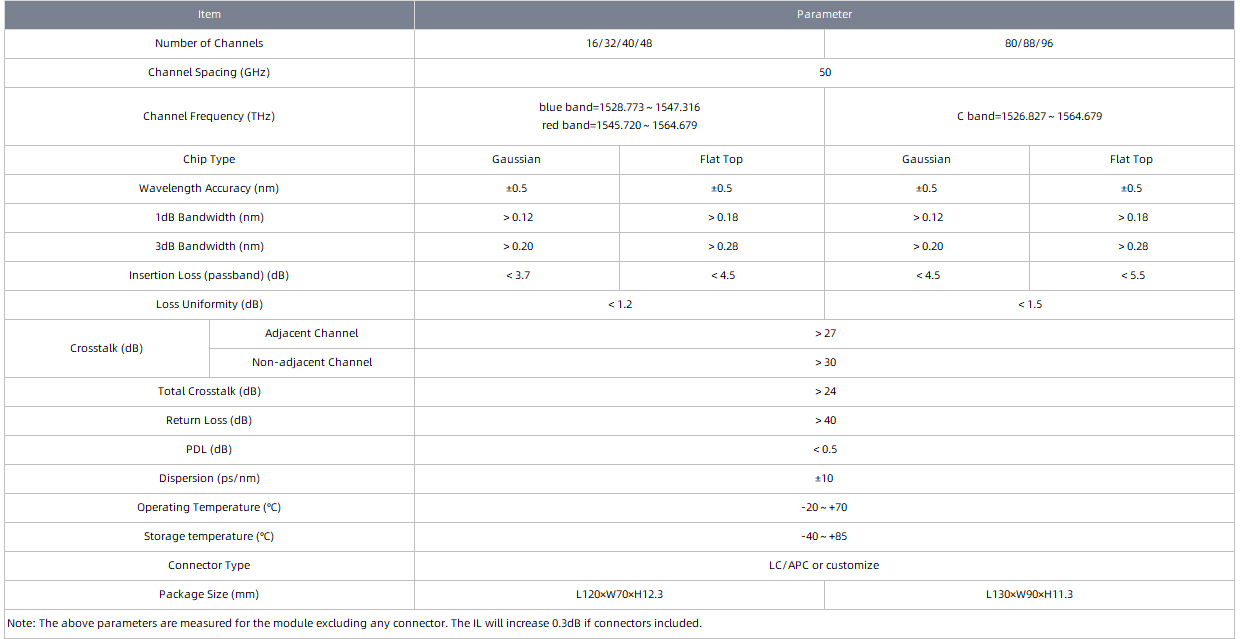

PERFORMANCE
