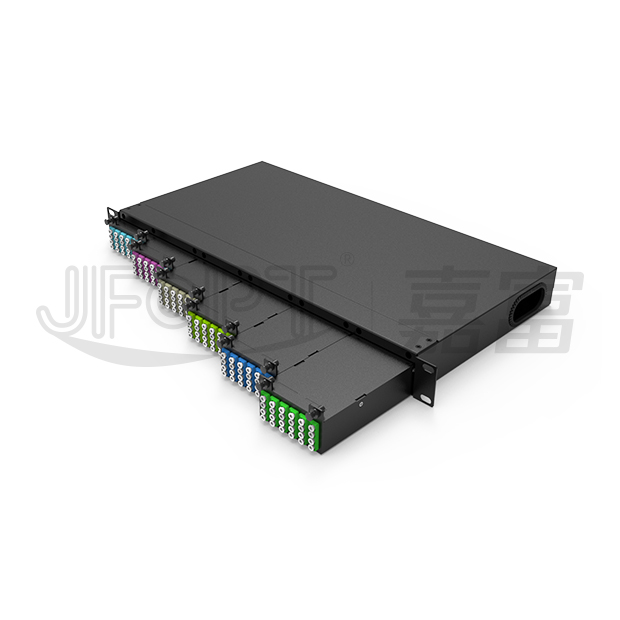

High density MPO/MTP patch panel

Max capacity 144 fibers / accomodate six 24-fiber MPO cassette / Data center

Model:JFOPP-MPO10-A-004

Purchase consultation

Product Specification

Data Sheets

DESCRIPTION

JFOPP-MPO10-A-004 MPO patch panel adopts removable modular design, remarkably convenient for installation and operation. It is mainly applied to high density fiber optic cabling systems, fast cabling systems, backbone networks, high integrated equipment and devices, data centers, SAN systems, etc; suitable for small and medium wiring systems such as FTTZ, FTTB.

APPLICATION

FEATURES

Modular MPO cassettes

Removable modular design can achieve rapid repalcement and wiring, and reach max capacity 144 fibers in 6 MPO cassette module.

Easy disassembly

The top cover can be easily disassembled by hand screw.

Cable entry mode

Oval cable entry ports at both lateral sides of the patch panel as the primary cable leading and the spare round cable entry ports at the back to meet different cable inlet requirements of users.

STANDARDS COMPLIANCE
