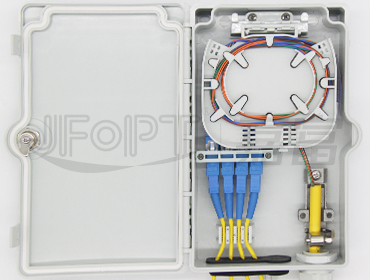

4 Fiber Distribution Box (1 in 4 out)
Robust structure / Compatible with LC and SC adapters / fiber splice and storage
Model:JFFDB-104-04B-FX
Share:
Purchase consultation
Product Specification
Data Sheets
DESCRIPTION

JFFDB-104-04B-FX fiber distribution box is used as a termination point for the cable to connect with drop cable in FTTx network system. It can funtion fiber splicing, splitting, distribution, storage and patching.

FEATURES
High mechanical strength
Made of PC and ABS,solid and insulated.
High IP level
Up to IP66, equipped with screw lock, waterproof, dustproof and anti-theft.
Capacity of adapters
Max. 4 SC simplex adapters.
Scientific and reasonable space design
Reasonable design and ample space for fiber splicing and storage, to guarantee the min. Bending radius 40mm.
Cable entry ports
One 6-12mm entry port, four outlet ports for 2.0*3.0 drop cable and one 12mm outlet port,Dustproof rubber sleeve available and equipped with clamping fixture.
STANDARDS COMPLIANCE
Compliant with RoHS
Passed ISO9001:2015
Compliant with IEC




ACCESSORIES
Expansion Screw 3PCS
Protective Sleeve 45mm 4PCS
Nylon Ties 4PCS
Transparent Tube 1PC
Key 2PCS
DIMENSION
