1U Rack Mounted Modular Type Patch Panel

Front cable management frame/ Splicing or MPO cassette/Convenient wiring/FTTB/FTTZ

Model:JFOPP-RMP10-A-009F

Purchase consultation

Product Specification

Data Sheets

DESCRIPTION

JFOPP-RMP10-A-009F patch panel adopts removable modular design,which is remarkably convenient for installation and operation and can hold up to 96 fibers in 1U space. It is mainly applied to high density fiber optic cabling systems, fast cabling systems, backbone networks, high integrated equipment and devices, data center, SAN systems, etc; suitable for small and medium wiring systems such as FTTZ, FTTB.

FEATURES

Modular design

Flexible configuration by using removable modular design, optional adapter panel or MPO cassette module to realize different configuration requirements of ports and meet various wiring schemes.

Cable entry mode

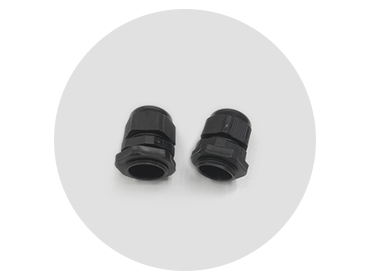

Five 22mm and four 16mm cable inlets at the rear of the patch panel, two 22mm and two 16mm cable inlets at both lateral sides, waterproof cable gland can be removed as needed.
