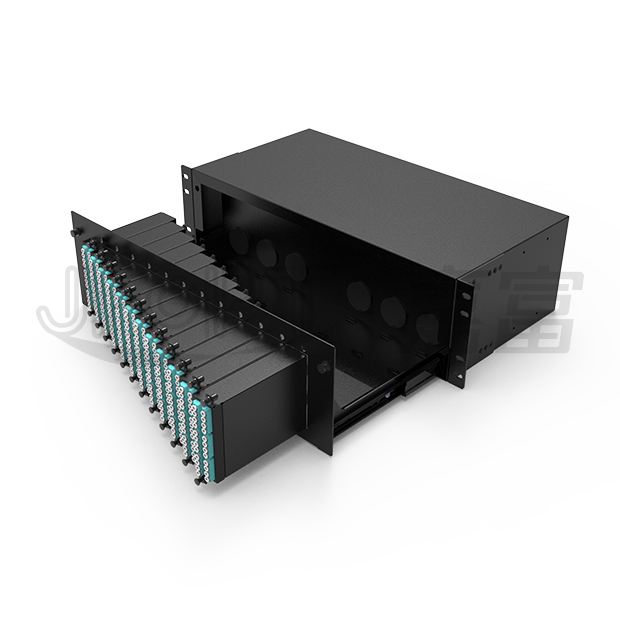

3U MPO/MTP Patch Panel(MAX 288F)
Max capacity 288 fibers/ Accommodate twelve 24-fiber MPO cassette/ Date center/ Convenient to pull
Model:JFOPP-MPO30-B-001
Share:
Purchase consultation
Product Specification
Data Sheets
DESCRIPTION

JFOPP-MPO30-B-001 3U MPO/MTP Patch Panel Max 288F adopts removable modular design and sliding rail design, remarkably convenient for installation and operation. It is mainly applied to high density fiber optic cabling systems, fast cabling systems, backbone networks, high integrated equipment and devices, data centers, SAN systems,  etc.

FEATURES
Sliding rail design
3U rack mount patch panel houses 3 independent sliding trays for 288 fibers, each independent tray has sliding rail to pull smoothly. Each tray is not covered by chassis, easy to insert and plug connectors.
Independent disassembly
Press the plastic shrapnel to pull it out, which can realize the single layer tray to be disassembled independently; Simply push in when install.
Cassettes installation
Modular MPO cassettes design can achieve rapid replacement and wiring, and reach max capacity 288 fibers in 12 MPO cassette module.
Cable entry
There are six 30mm cable inlets and cable coiling spaces in the rear of patch panel.According to the dust rubber ring can be cut into the cable and coiled and fixed as required.
Adjustable mounting ears
The mounting holes of the chassis mounting ears are adjustable to meet the actual wiring requirements of the user.
High quality
Using high quality cold rolled steel plate molding, pressure and impact resistance. Electrostatic spraying, uniform and flat, wear-resistant and anticorrosion, beautiful appearance.
STANDARDS COMPLIANCE
Meet ROHS certification standards
Comply with CE certification standards
Comply with FCC certification standards
Passed ISO9001:2015
Comply with IEC certification standards




ACCESSORIES
Cable Ties (3*100mm)*8pcs
Adhesive Cable Organizer*8pcs
Screw and Nut *5sets
DIMENSION
CASSETTE DIMENSION




PACKING INFORMATION
