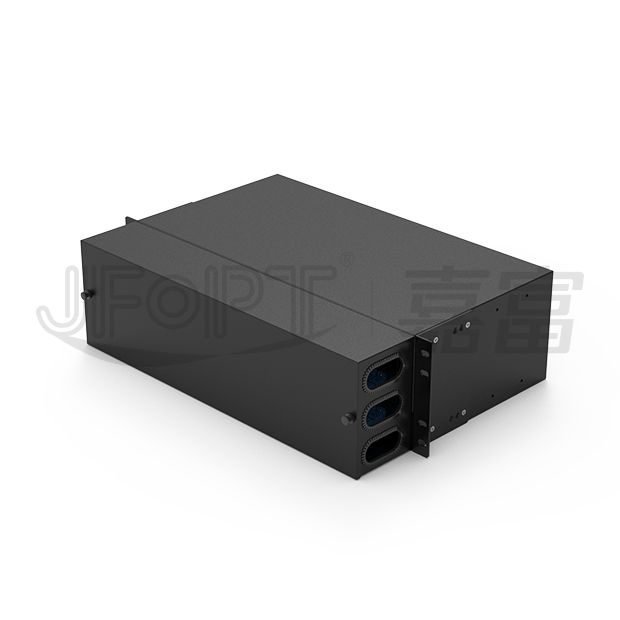

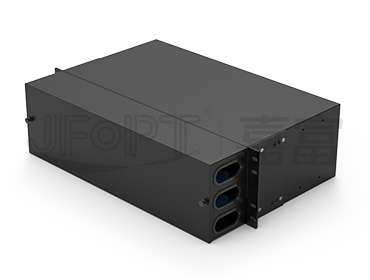

3U Sliding Type Patch Panel
Sliding-out design / very convenient to operate / FTTZ / FTTB
Model:JFOPP-RMP30-B-002/002F
Share:
Purchase consultation
Product Specification
Data Sheets
PRODUCT INTRODUCTION

JFOPP-RMP30-B-002/002F optical distribution box adopts the sliding design by the guide rail. Integrated the functions of fiber fusion, storage and distribution, it is  is mainly used for the termination and distribution of central trunk cables, to realize the connection, distribution and organization in optical fiber communication system. Suitable for small and medium wiring systems, like FTTZ, FTTB etc.

OTHER ACCESSORIES

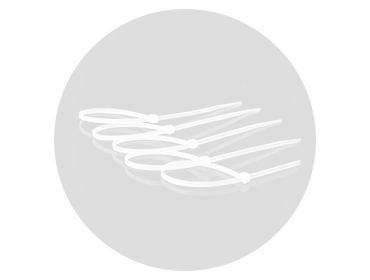

Cable Ties (3*100mm)*8 pcs

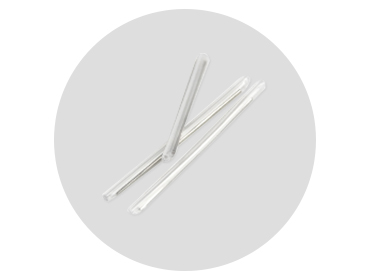

Simplex fiber splicing protective sleeve (configured based on fiber count)

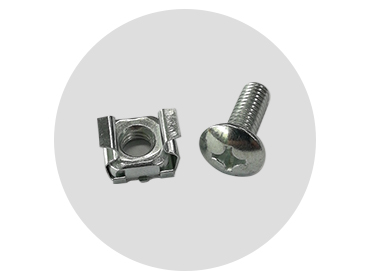

Rack Mounting Screws and Nuts (4 sets)
PRODUCT FEATURES

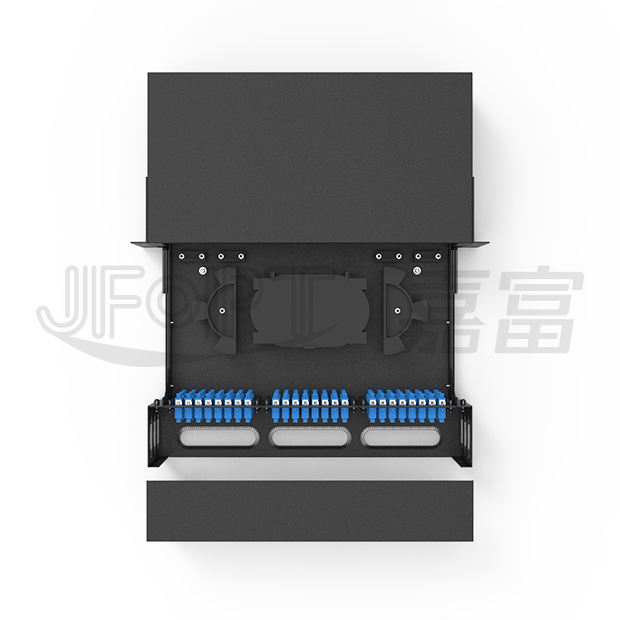

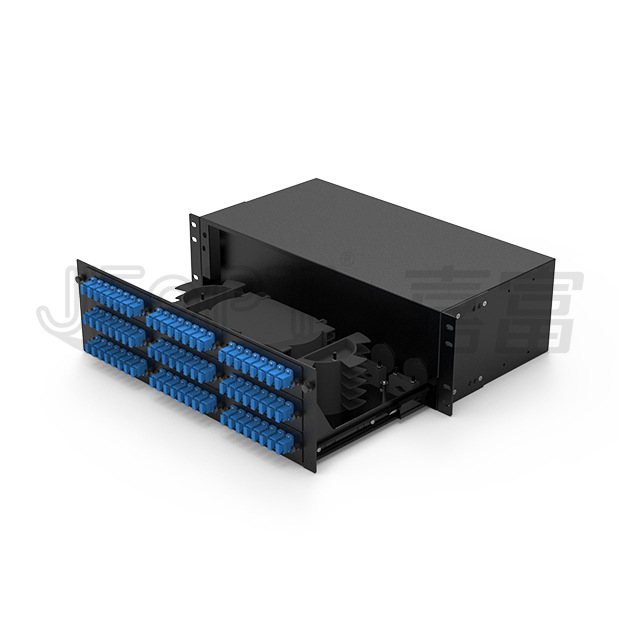

Sliding rail design
3-section sliding rails ad- opted in the patch panel to achieve smoothly sliding out and not being blocked by the outer casing after being pulled out.

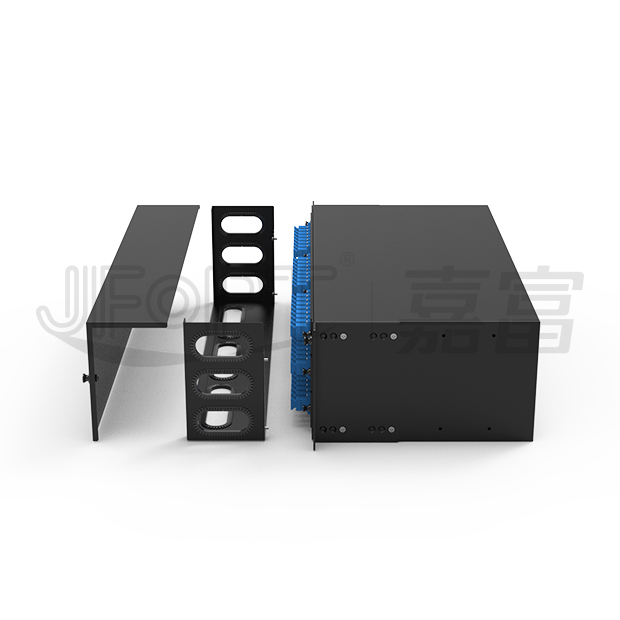

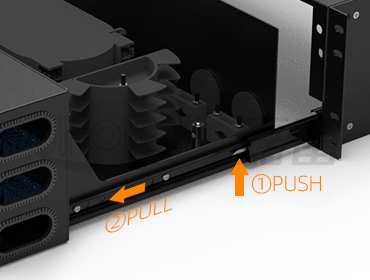

Quick assembly and disassembly

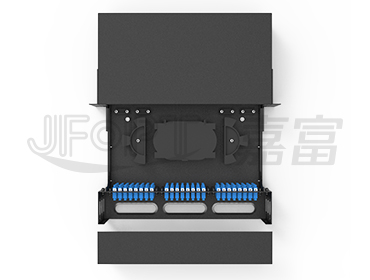

Each sigle sliding tray can be easily disassembled by pressing its locking clip, and can be easily assembled by simply pushing it back in the opposite direction.

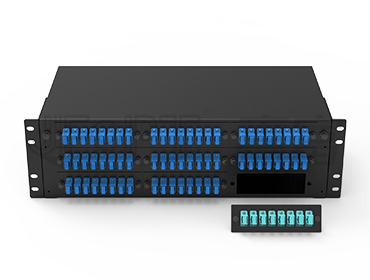

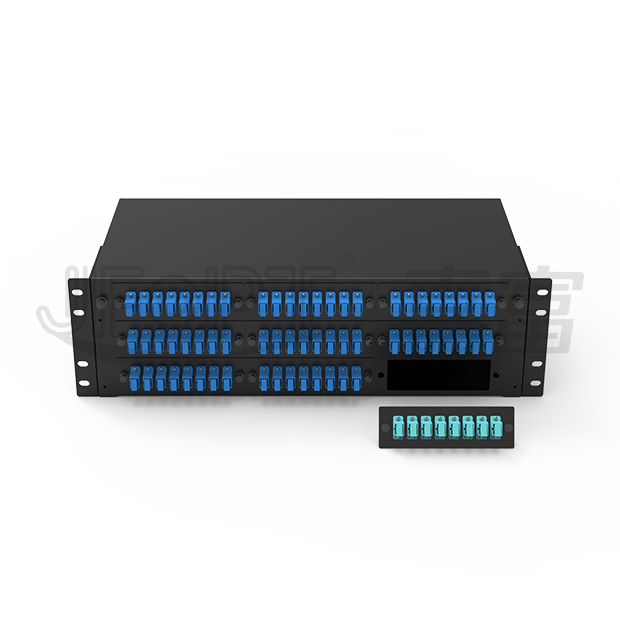

Modular panel
The pull tray has 8 adapter panel slots for quick replacement and wiring.




PRODUCT FEATURES

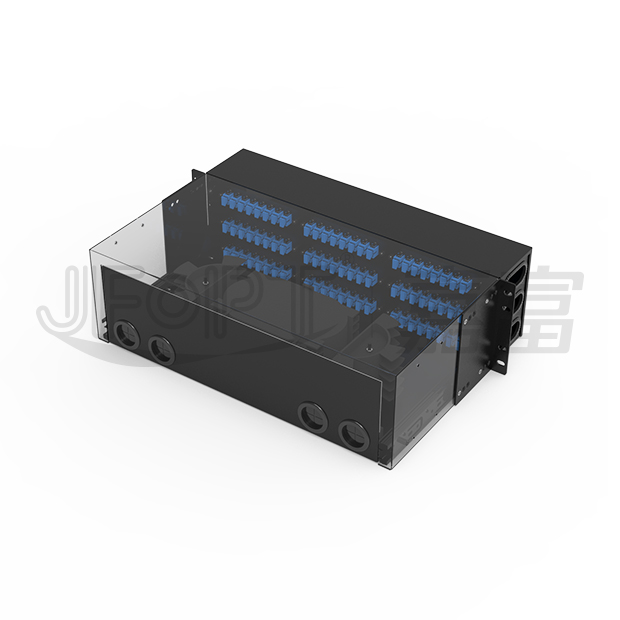

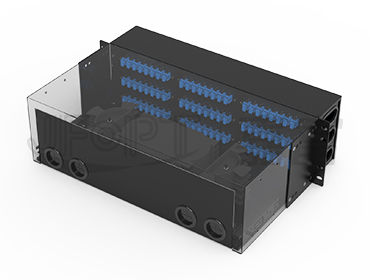

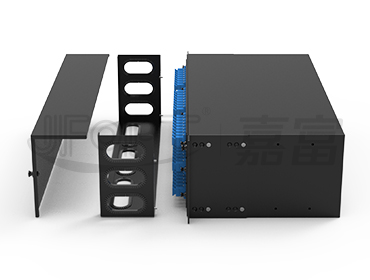

Cable entry port
Four 30mm cable inlets at the back of the patch panel for cable leading.
Convenient distribution
Classic layout design, JFOPT has continuously improved with the feedback of the market for decades, ensuring scientific design and convenient use.

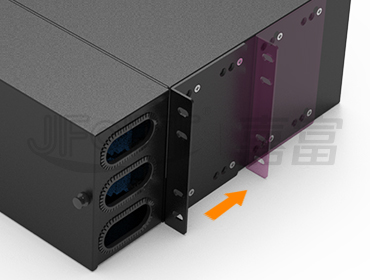

Adjustable mounting ears
The both mounting ears are adjustable by using different fixing hole, to meet the actual wiring requirements.
High quality
Made from the cold-rolled steel sheet and surface electrostatic sprayed. Uniform and smooth appearance, corrosion resistance, compression and impact resistance.

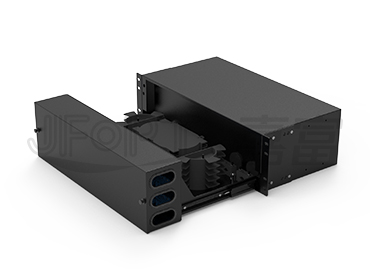

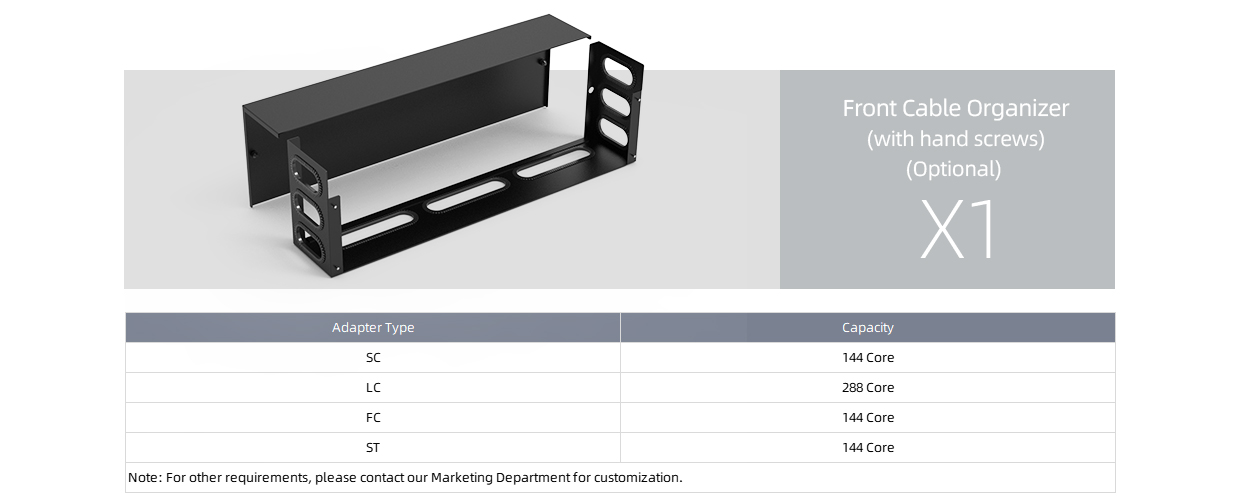

Optional front cable organizer
The front cable organizer is optional for cable management and labelling.
COMPLIANT WITH STANDARDS
Compliant with ROHS certification standards
Compliant with CE certification standards
Compliant with FCC certification standards
Certified under ISO9001:2015
Compliant with IEC certification standards
OPTIONAL ACCESSORIES

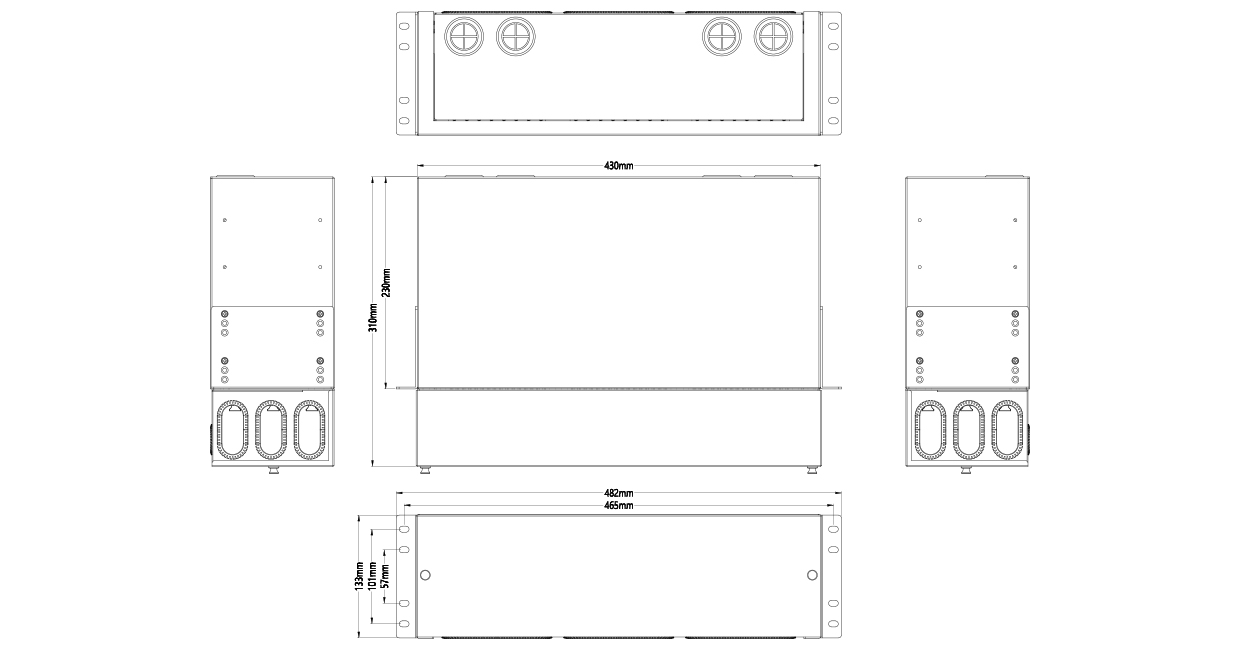

PRODUCT DIMENSIONS

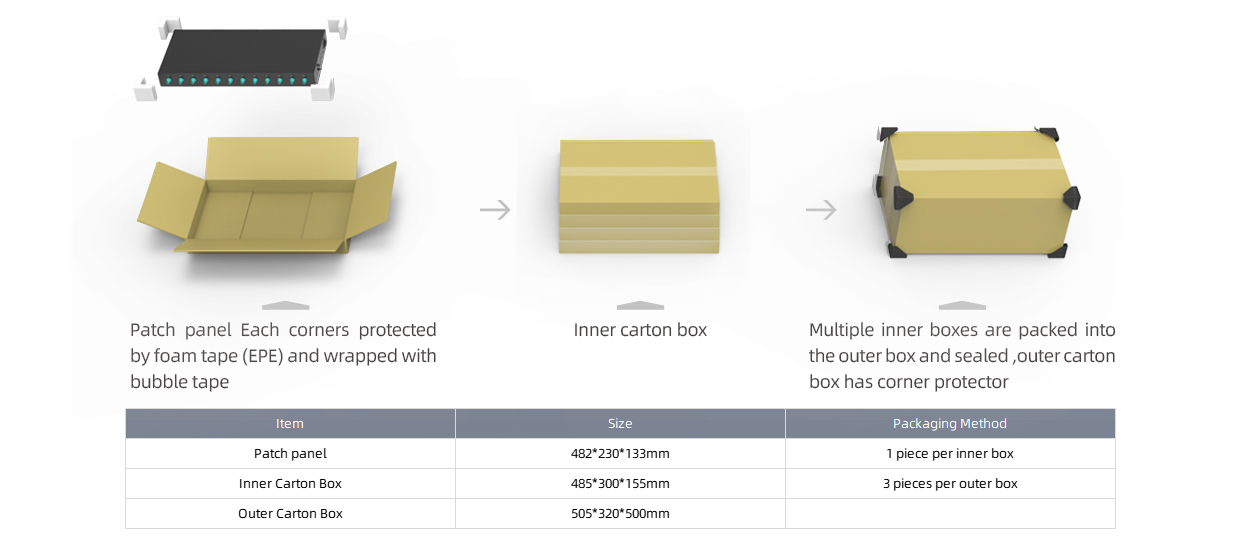

PACKING INFORMATION
