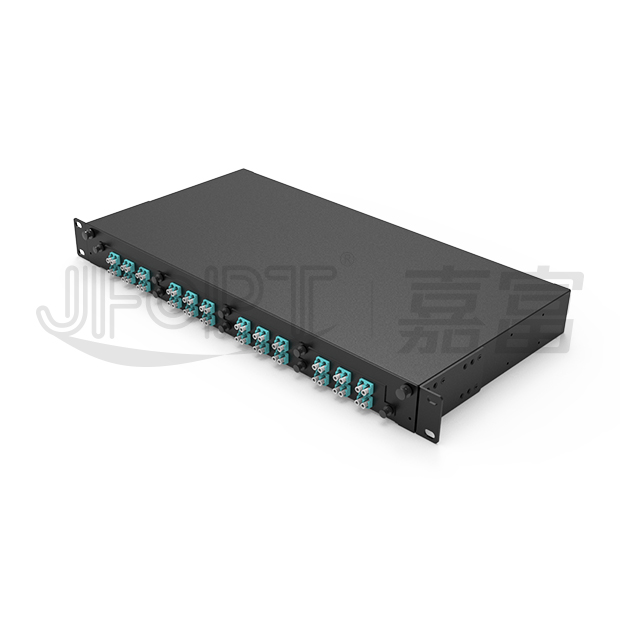

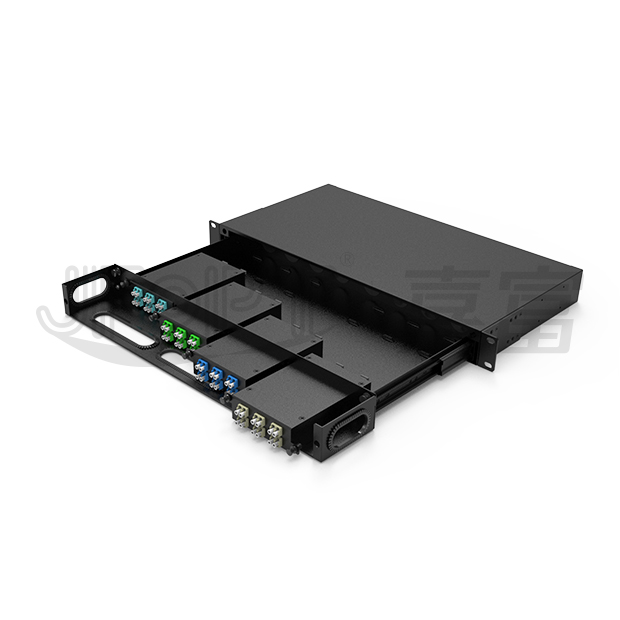

1U MPO/MTP Sliding Type Patch Panel

Max capacity 48 fibers/ Accommodate two 12-fiber MPO cassette/ Date center/ Convenient to pull

Model:JFOPP-MPO10-B-003/003F

Purchase consultation

Product Specification

Data Sheets

DESCRIPTION

JFOPP-MPO10-B-003/003F adopts removable modular design and sliding rail design, remarkably convenient for installation and operation. It is mainly applied to high density fiber optic cabling systems, fast cabling systems, backbone networks, high integrated equipment and devices, data centers, SAN systems, etc.

FEATURES

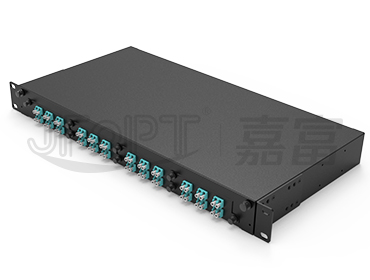

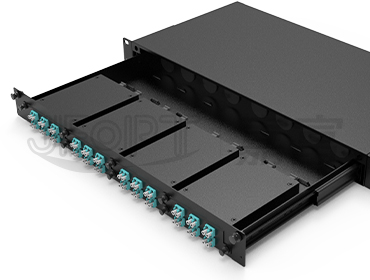

Sliding rail design

1U rack mount patch panel houses 3 independent sliding trays for 48 fibers, each independent tray has sliding rail to pull smoothly. Each tray is not covered by chassis, easy to insert and plug connectors.

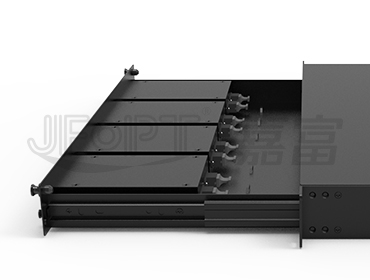

Independent disassembly

Press the plastic shrapnel to pull it out, which can realize the single layer tray to be disassembled independently; Simply push in when install.

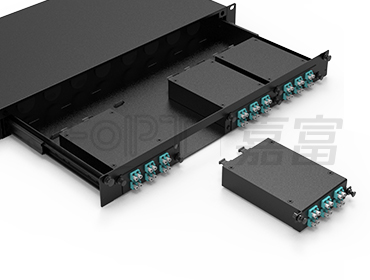

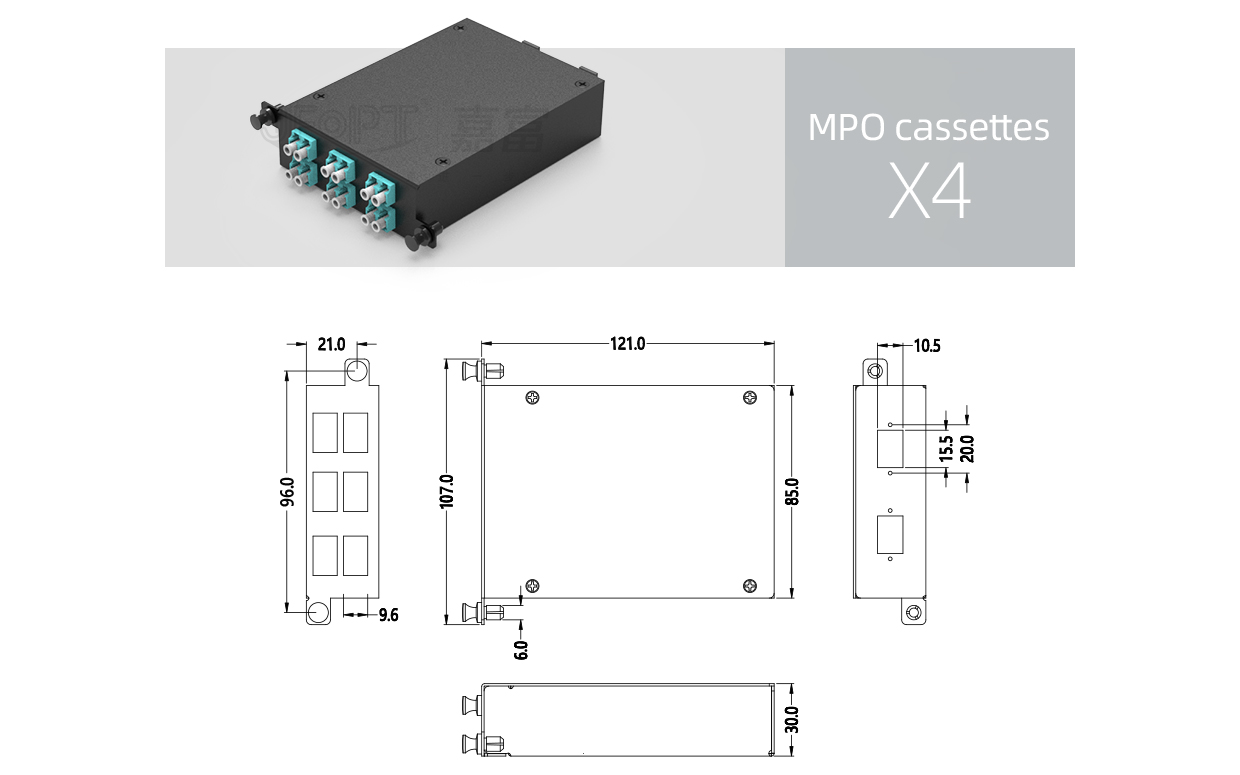

Cassettes installation

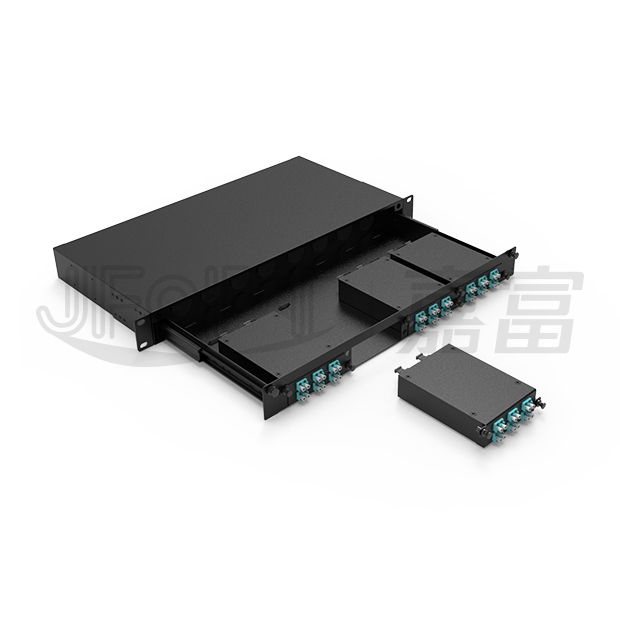

Modular MPO cassettes design can achieve rapid replacement and wiring, Standard 1U size, and reach max capacity 48 fibers in 4 MPO cassette module.

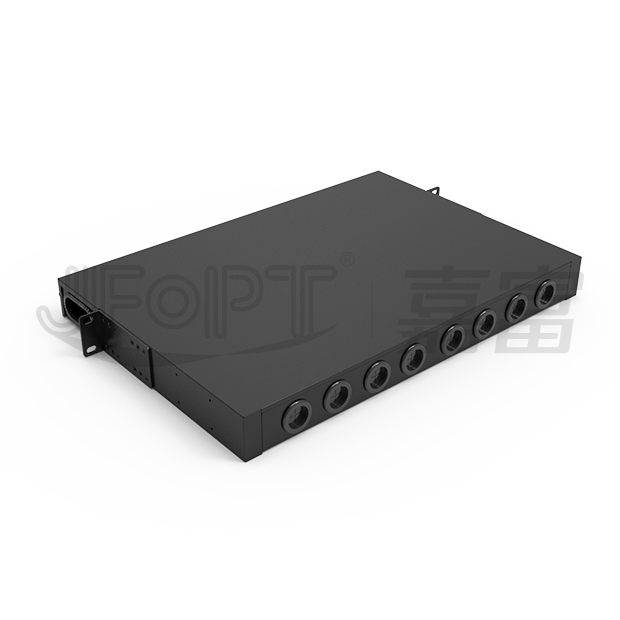

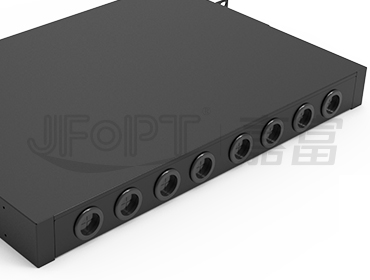

Cable entry

There are eight 30mm cable inlets and cable coiling spaces in the rear of patch panel.According to the dust rubber ring can be cut into the cable and coiled and fixed as required.

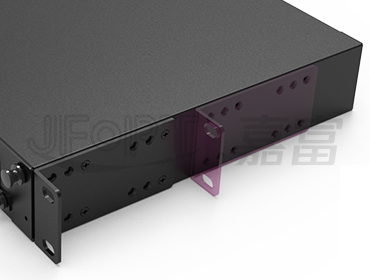

Adjustable mounting ears

The mounting holes of the chassis mounting ears are adjustable to meet the actual wiring requirements of the user.

High quality

Using high quality cold rolled steel plate molding, pressure and impact resistance. Electrostatic spraying, uniform and flat, wear-resistant and anticorrosion, beautiful appearance.

STANDARDS COMPLIANCE
