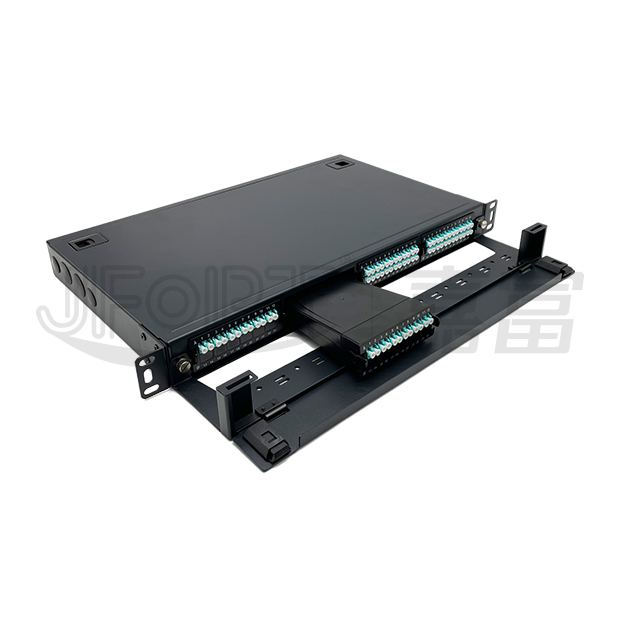

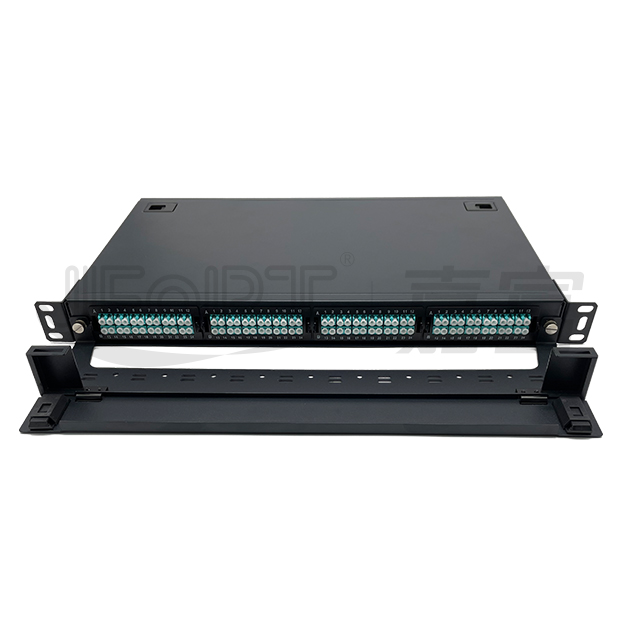

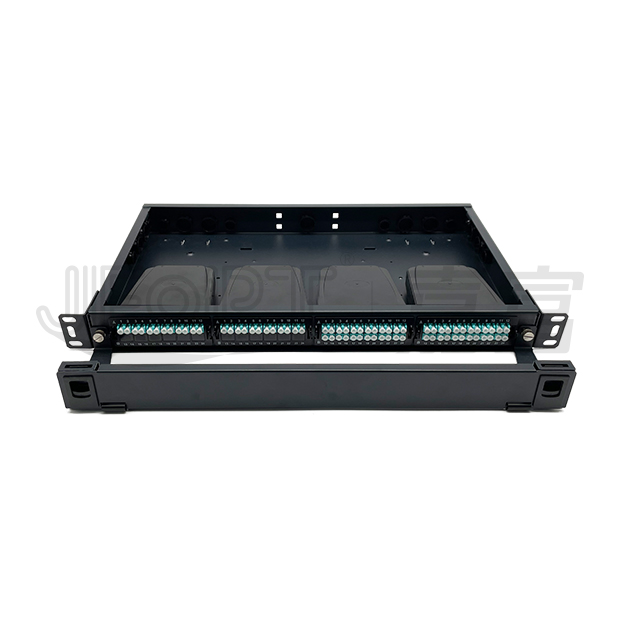

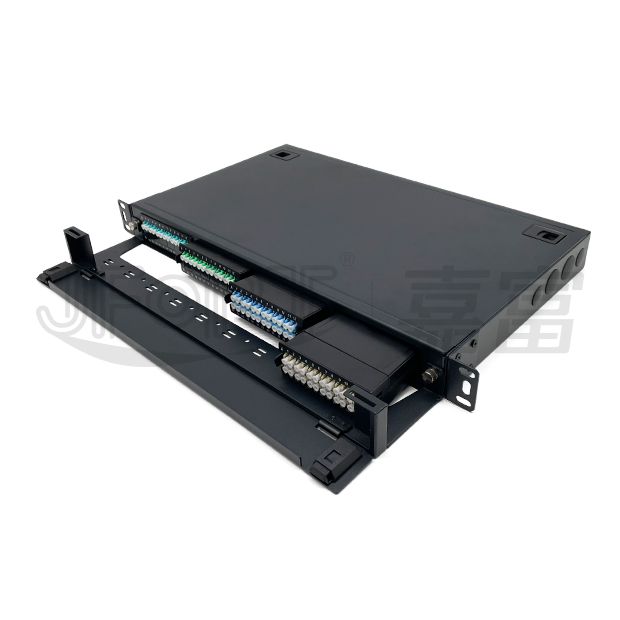

1U MPO/MTP Plastic Cassettes Patch Panel（Max 96F）

12-fiber cassette and 24-fiber cassette for option / Max capacity 96 fibers / Data center

Model:JFOPP-RMP/MPO10-A-007F

Purchase consultation

Product Specification

Data Sheets

DESCRIPTION

JFOPP-RMP/MPO10-A-007F Fixed MPO/MTP HD enclosure adopts modular design and is equipped with quick-opening upper cover for easy construction and operation. The enclosure is equipped with a front cable tray, which is fully equipped with a maximum of 94 cores, and can be configured with 12 cores or 24 cores Cassettes.It is mainly used in high-density fiber cabling systems, fast cabling systems, backbone networks, highly integrated devices and devices, data centers, SAN systems, etc.

FEATURES

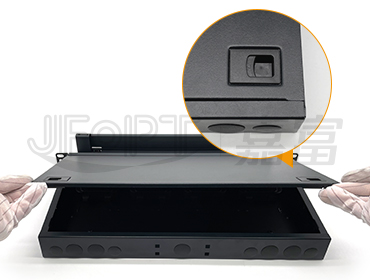

Easy to open the upper cover design

The upper cover of the wiring box adopts the door latch locking mode, and the upper cover can be opened without using tools.

Modular design

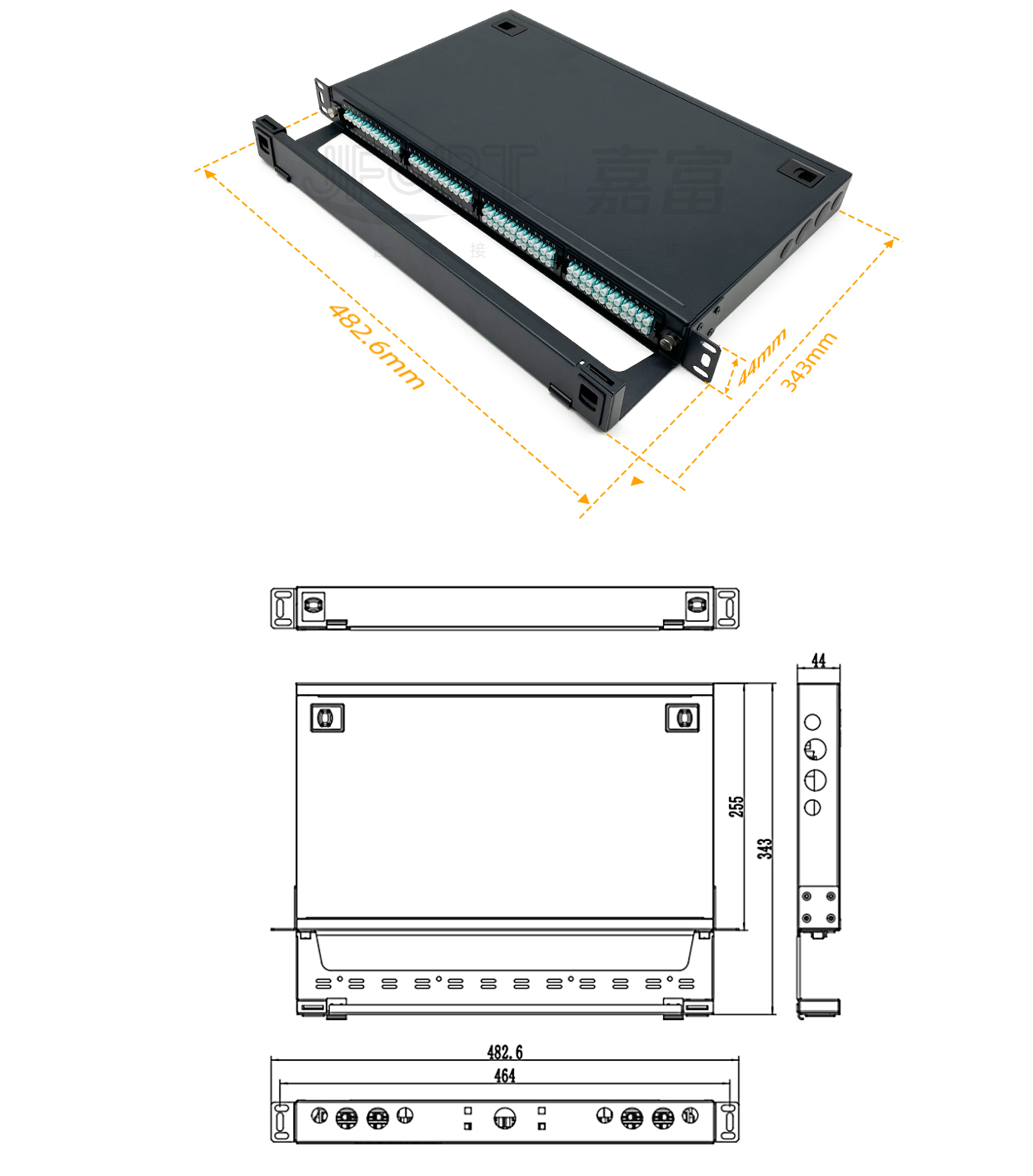

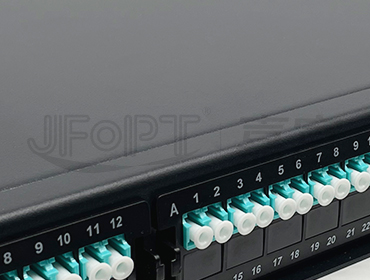

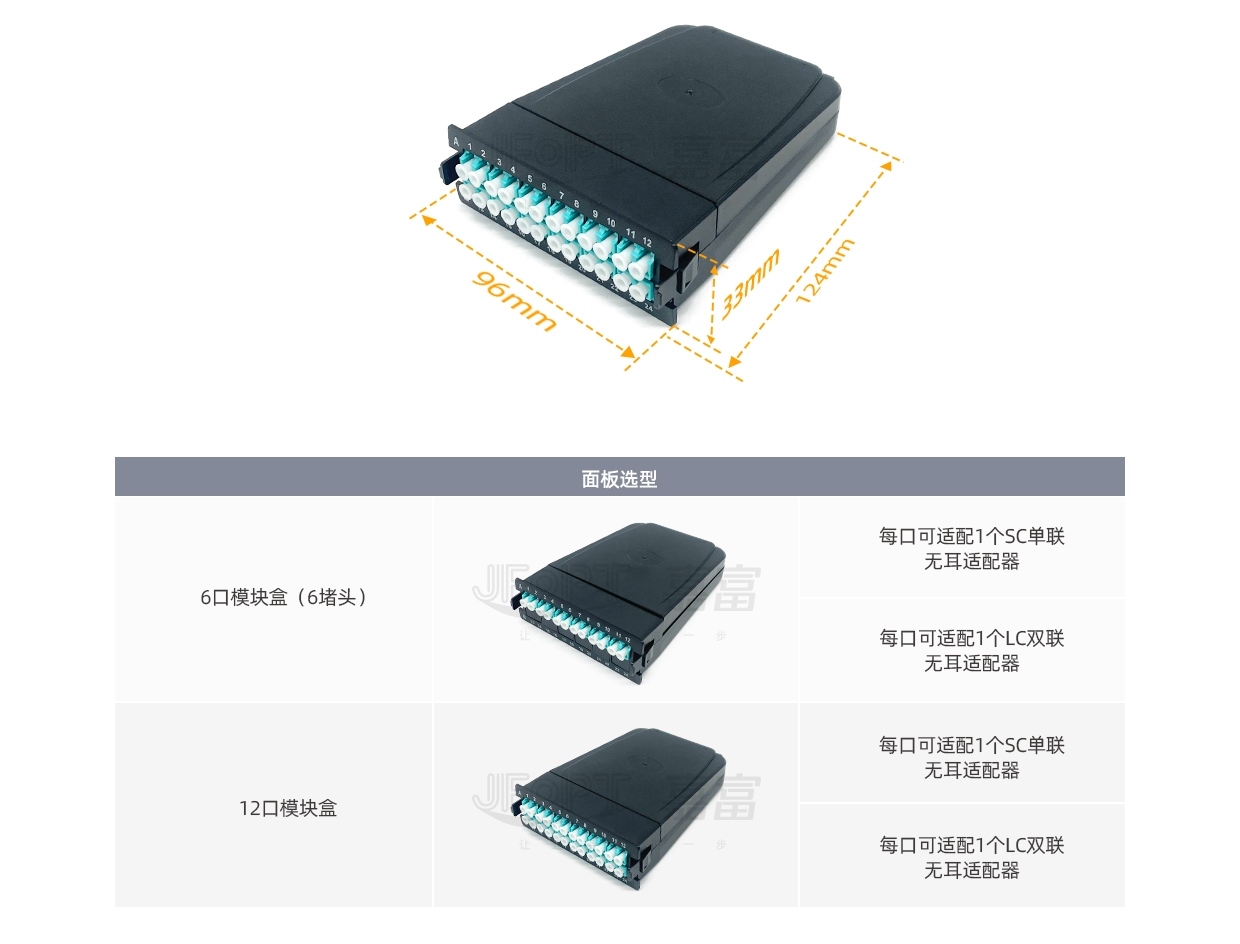

The pre-connector Cassettes is configured for quick wiring replacement. Standard 1U size, can accommodate up to 4 Cassettes, the maximum number of wiring cores up to 96 cores.

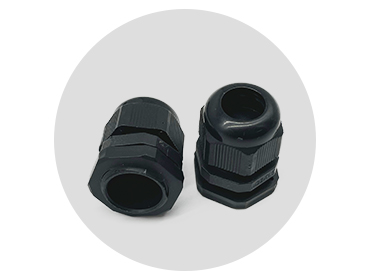

Optical cable introduction

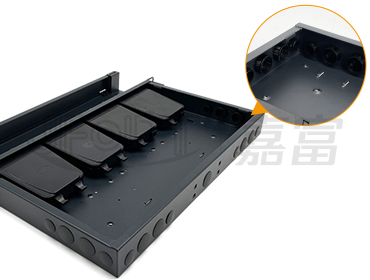

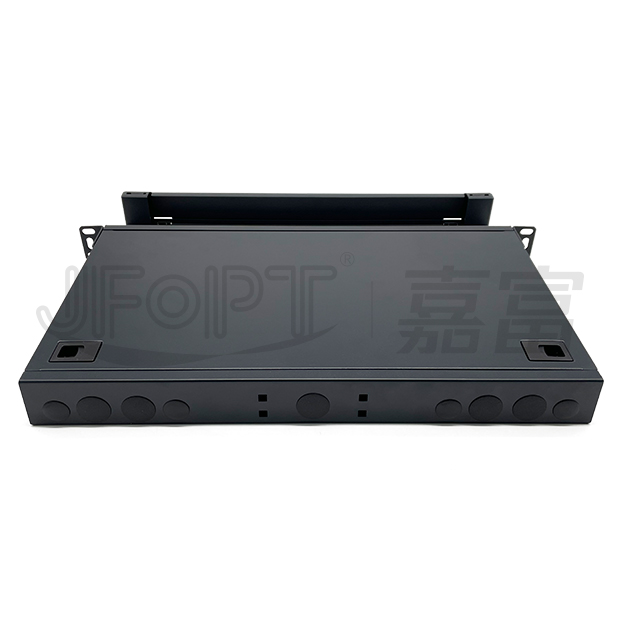

Multiple cable entry ports are provided at the rear and left and right sides of the chassis, and the chassis is equipped with a plurality of optical cable winding and fixing points.

High quality

Made of high quality cold rolled steel sheet, compressive and impact resistant. Electrostatic spraying, uniform, wear-resistant and anti-corrosion, beautiful appearance.

STANDARDS COMPLIANCE
