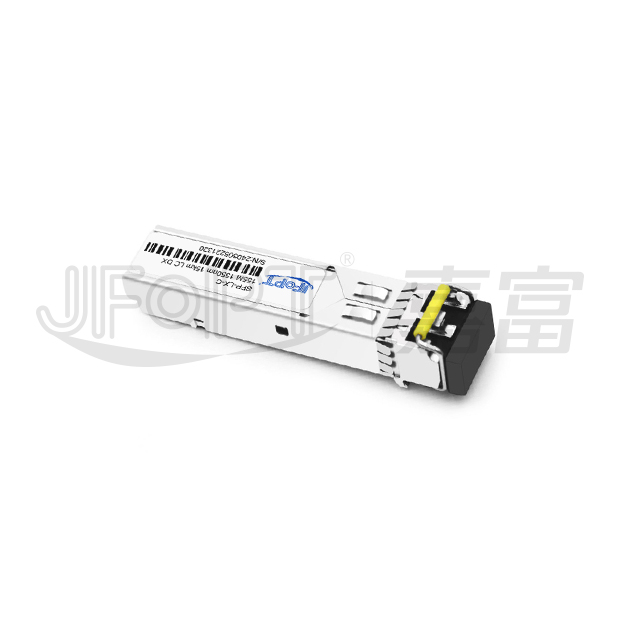

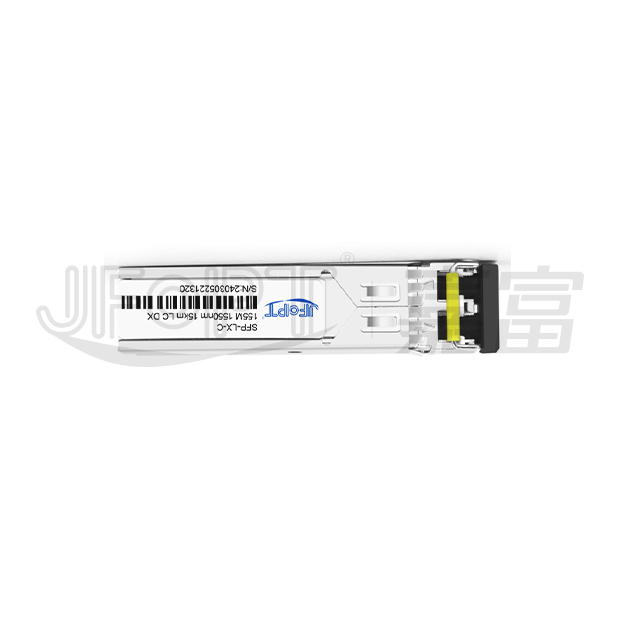

JFOPT SFP 155M 1550nm LC DX Series Single-Mode Optical Module | 15-200 km

Product model	JFTSM-SFP-0155-15-15/80/100/120/160/200-LCD	Manufacturer brand	JFOPT
Package type	SFP	Optical connector	Duplex LC
Max data rate	≤155Mbps	Channel data rate	-
Effective transmission distance	15km 40km 80km 100km 120km 160km 200km
Wavelength	1550nm	Operating voltage	3.3V
Fiber type	SMF	Core size	90/125
Transmitter type	FP	Receiver type	IDP
TX power	15KM -15~-8dbm 40KM -8~-3dbm 80KM -5~-0dbm 100KM -3~2dbm 120KM 0~5dbm 160KM 200KM 2~7dbm	Receiver sensitivity	15KM 40KM -28dBm 80KM 100KM 120KM -34dBm 160KM -35dBm 200KM -45dBm
Digital optical monitoring(DDM)	YES	Receiver overload	15KM 40KM -8dBm 80KM 100KM 120KM 160KM 200KM -10dBm
Power consumption	<1W	Protocols	SFP MSA SFF-8472
Operating temperature(commercial)	0℃~+70℃	Storage temperature(commercial)	-40℃~+85℃
Operating temperature(industrial)	-40℃~+85℃	Storage Temperature(industrial)	-40℃~+85℃

PRODUCTION LINE INTRODUCTION

JFOPT continues to invest in optical transceiver production, covering a full range of optical transceiver such as 1*9, SFP, 10G, 25G, 100G, 200G, 400G, 800G GPON/EPON/XG/XGSPON OLT transceiver. At the same time, our company provides TOSA, ROSA, BOSA semi-finished device solutions for the downstream peer. JFOPT's production line has a daily production capacity of 10,000 optical transceivers and 20,000 optical devices. In addition, JFOPT's optical transceiver have industry-leading high temperature resistance and anti-interference capability, and are widely used in computing centers, operators, traffic security, power facilities and other industries.

PRODUCT PRESENTATION

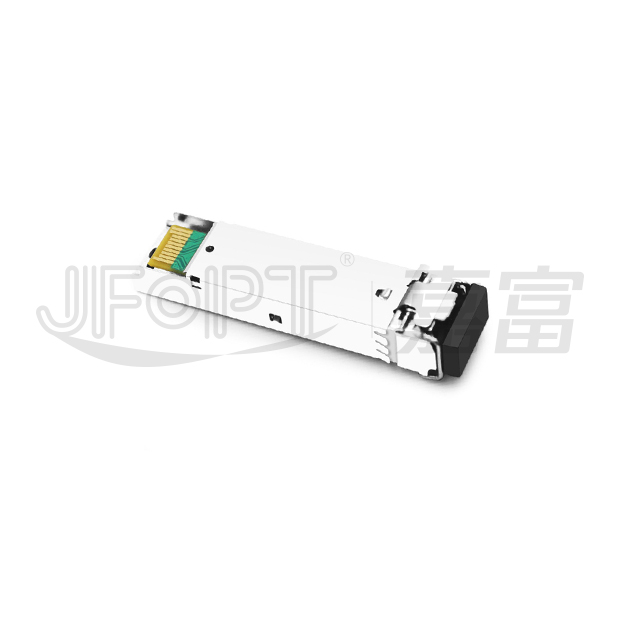

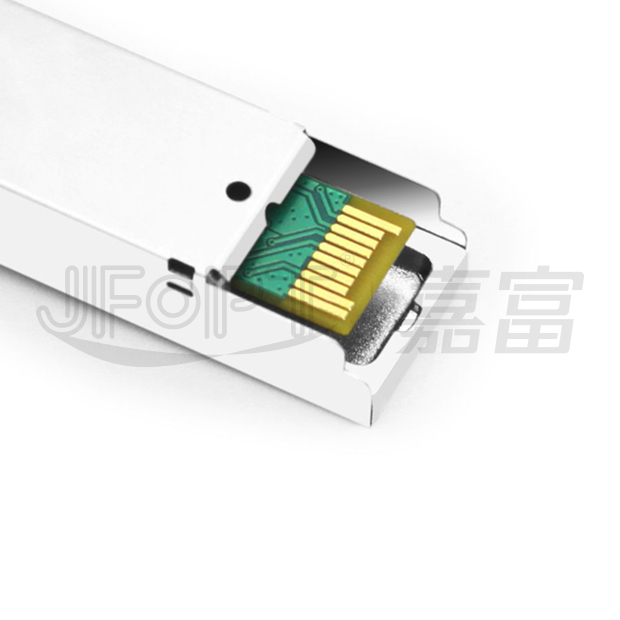

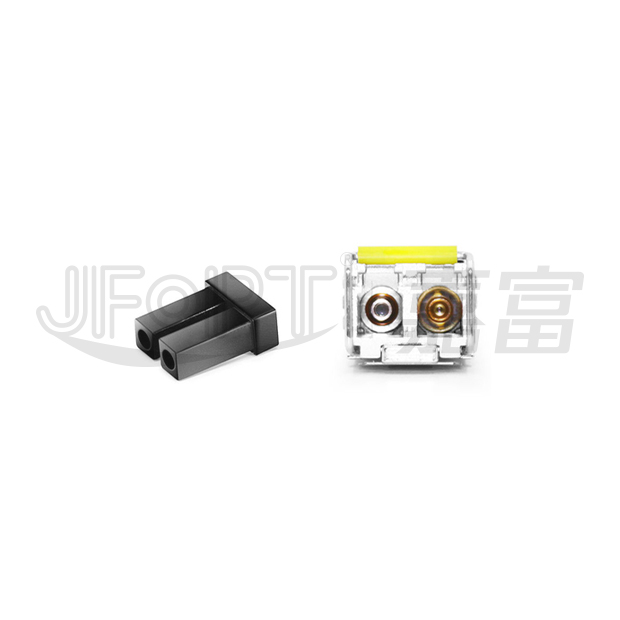

The JFOPT SFP 155M 1550nm LC DX Transceiver series is a compact, single-mode transceiver designed for long-distance duplex optical data communication, supporting applications such as Fast Ethernet and OC-3/STM-1 SDH/SONET. This small form-factor pluggable module is available for transmission distances of 15km, 80km, 100km, 120km, 160km, and 200km. Featuring a 20-pin SFP connector, it enables hot-plug functionality for easy installation and maintenance. Optimized for single-mode fiber, the transceiver operates at a standard wavelength of 1550nm. The transmitter section incorporates a high-performance multiple quantum well 1550nm DFB laser, compliant with Class 1 laser safety standards under IEC 60825. On the receiver side, the module utilizes an advanced optical detection system, including an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a precision limiting post-amplifier IC, ensuring reliable signal reception and processing. The SFP 155M 1550nm LC DX Transceiver series is fully compliant with the SFF-8472 Multi-Source Agreement (MSA), guaranteeing industry-standard compatibility and interoperability for seamless integration into network systems.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

Operating data rate up to 155Mbps					15km with 9/125 µm SMF 40km with 9/125 µm SMF 80km with 9/125 µm SMF 100km with 9/125 µm SMF 120km with 9/125 µm SMF 160km with 9/125 µm SMF 200km with 9/125 µm SMF
Single 3.3V power supply and TTL control logic interface					Hot-pluggable SFP footprint duplex LC connector interface

APPLICATION

Fast ethernet				SDH/SONET
ATM switches and routers				Other optical links

STANDARD COMPLIANCE

ORDERING INFORMATION

Part No.	Data Rate	Fiber	Distance	Interface	Temperature	DDMI
JFTSM-SFP-0155-15-15-LCD	155Mbps	SMF	15km	LC	Standard	YES
					Industrial
JFTSM-SFP-0155-15-80-LCD	155Mbps	SMF	80km	LC	Standard	YES
					Industrial
JFTSM-SFP-0155-15-100-LCD	155Mbps	SMF	100km	LC	Standard	YES
					Industrial
JFTSM-SFP-0155-15-120-LCD	155Mbps	SMF	120km	LC	Standard	YES
					Industrial
JFTSM-SFP-0155-15-160-LCD	155Mbps	SMF	160km	LC	Standard	YES
					Industrial
JFTSM-SFP-0155-15-200-LCD	155Mbps	SMF	200km	LC	Standard	YES
					Industrial

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min.	Max.	Unit
Storage temperature	TS	-4.0	+85	℃
Supply voltage	VCC	-0.5	3.6	V
Operating relative humidity	-	-	95	%
Exceeding any one of these values may destroy the device immediately

RECOMMENDED OPERATING ENVIRONMENT

Parameter		Symbol		Min	Typical	Max	Unit
Operating case temperature		Tc	JFTSM-SFP-0155-15-15/80/100/120/160/200-LCD	0	-	+70	°C
				-40	-	+85
Power supply voltage		Vcc		3.15	3.3	3.45	V
Power supply current		Icc		-	-	300	mA
Date rate	OC-3/STM-1	-		-	155	-	Mbps
	100M	-		-	100	-

PERFORMANCE SPECIFICATIONS–ELECTRICAL

Parameter		Symbol	Min.	Typ.	Max.	Unit	Notes
Transmitter
LVPECL inputs(Differential)		Vin	400	-	2000	mVpp	AC coupled inputs
Input impedance (Differential)		Zin	85	100	115	ohm	Rin > 100 kohm @ DC
TX_disable	Disable	-	2	-	Vcc+0.3	V	-
TX_disable	Enable	-	0	-	0.8	V	-
TX_FAULT	Fault	-	2	-	Vcc+0.3	V	-
TX_FAULT	Normal	-	0	-	0.5	V	-
Receiver
LVPECL outputs (Differential)		Vout	400	-	2000	mVpp	AC coupled output
Output impedance (Differential)		Zout	85	100	115	ohms	-
RX_LOS	LOS	-	2	-	Vcc+0.3	V	-
RX_LOS	Normal	-	0	-	0.8	V	-
MOD_DEF ( 0:2 )		VoH	2.5	-	-	V	With serial ID
MOD_DEF ( 0:2 )		VoL	0	-	0.5	V	With serial ID

OPTICAL AND ELECTRICAL CHARACTERISTICS

Parameter	Symbol	Unit	1550nm FP and PIN, 15km			1550nm DFB and PIN, 40km			1550nm DFB and PIN, 80km
Parameter	Symbol	Unit	Min.	Typical	Max.	Min.	Typical	Max.	Min.	Typical	Max.
9µm core diameter SMF	L	km	-	15	-	-	40	-	-	80	-
Data rate	-	Mbps	-	100/155	-	-	100/155	-	-	100/155	-
Transmitter
Center wavelength	λC	nm	1480	1550	1580	1480	1550	1580	1480	1550	1580
Spectral width(RMS)	Δλ	nm	-	-	3	-	-	1	-	-	1
Side mode suppression ratio	SMSR	dB	-	-	-	30	-	-	30	-	-
Average output power	Pout	dBm	-15	-	-8	-8	-	-3	-5	-	0
Extinction ratio	ER	dB	10	-	-	10	-	-	10	-	-
Rise/Fall time(20%～80%)	tr/tf	ns	-	-	2	-	-	2	-	-	2
Output optical eye	-	-	IUT-T G.957 compliant			IUT-T G.957 compliant			IUT-T G.957 compliant
TX disable assert time	t_off	us	-	-	10	-	-	10	-	-	10
Receiver
Center wavelength	λC	nm	1260	-	1600	1260	-	1600	1260	-	1600
Receiver sensitivity	Pmin	dBm	-	-	-28	-	-	-28	-	-	-34
Receiver overload	Pmax	dBm	-8	-	-	-8	-	-	-10	-	-
Optical path penalty	-	-	-	-	1	-	-	1	-	-	1
LOS de-assert	LOSD	dBm	-	-	-29	-	-	-29	-	-	-35
LOS assert	LOSA	dBm	-42	-	-	-42	-	-	-45	-	-
LOS hysteresis	-	dB	0.5	-	-	0.5	-	-	0.5	-	-

Parameter	Symbol	Unit	1550nm DFB and PIN, 100km			1550nm DFB and PIN, 120km			1550nm DFB and PIN, 160km			1550nm DFB and APD, 200km
Parameter	Symbol	Unit	Min.	Typical	Max.	Min.	Typical	Max.	Min.	Typical	Max.	Min.	Typical	Max.
9µm core diameter SMF	L	km	-	100	-	-	120	-	-	160	-	-	200	-
Data rate	-	Mbps	-	100/155	-	-	100/155	-	-	100/155	-	-	100/155	-
Transmitter
Center wavelength	λC	nm	1480	1550	1580	1480	1550	1580	1480	1550	1580	1480	1550	1580
Spectral width (-20dB)	Δλ	nm	-	-	1	-	-	1	-	-	1	-	-	1
Side mode suppression ratio	SMSR	dB	30	-	-	30	-	-	30	-	-	30	-	-
Average output power	Pout	dBm	-3	-	2	0	-	5	2	-	7	2	-	7
Extinction ratio	ER	dB	10	-	-	10	-	-	10	-	-	10	-	-
Rise/Fall time(20%～80%)	tr/tf	ns	-	-	2	-	-	2	-	-	2	-	-	2
Output optical eye	-	-	IUT-T G.957 compliant			IUT-T G.957 compliant			IUT-T G.957 compliant			IUT-T G.957 compliant
TX disable assert time	t_off	us	-	-	10	-	-	10	-	-	10	-	-	10
Receiver
Center wavelength	λC	nm	1260	-	1600	1260	-	1600	1260	-	1600	1260	-	1600
Receiver sensitivity	Pmin	dBm	-	-	-34	-	-	-34	-	-	-35	-	-	-45
Receiver overload	Pmax	dBm	-10	-	-	-10	-	-	-10	-	-	-10	-	-
Optical path penalty	-	-	-	-	1	-	-	1	-	-	1	-	-	1
LOS de-assert	LOSD	dBm	-	-	-35	-	-	-35	-	-	-36	-	-	-46
LOS assert	LOSA	dBm	-45	-	-	-45	-	-	-45	-	-	-55	-	-
LOS hysteresis	-	dB	0.5	-	-	0.5	-	-	0.5	-	-	0.5	-	-

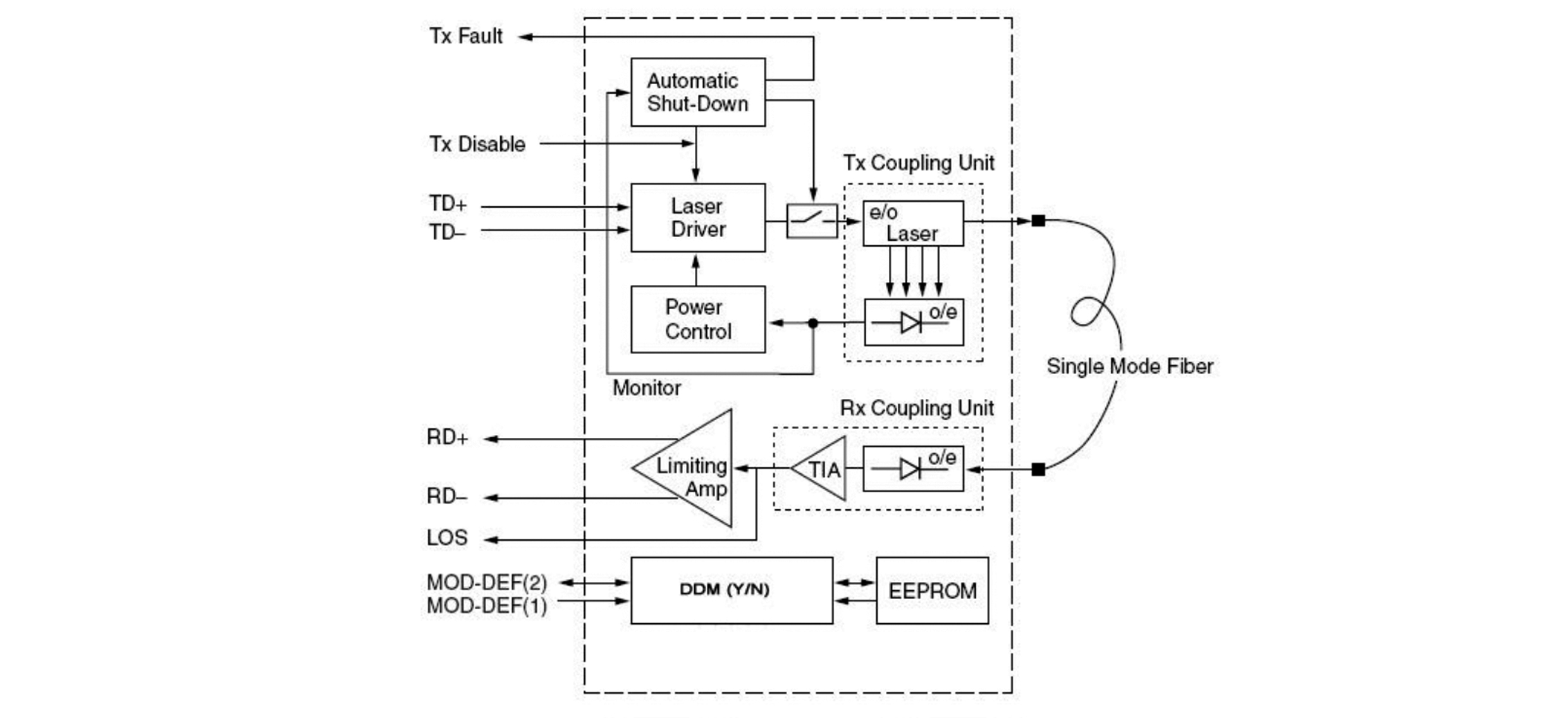

FUNCTIONAL DESCRIPTION OF TRANSCEIVER

SFP TRANSCEIVER ELECTRICAL PAD LAYOUT

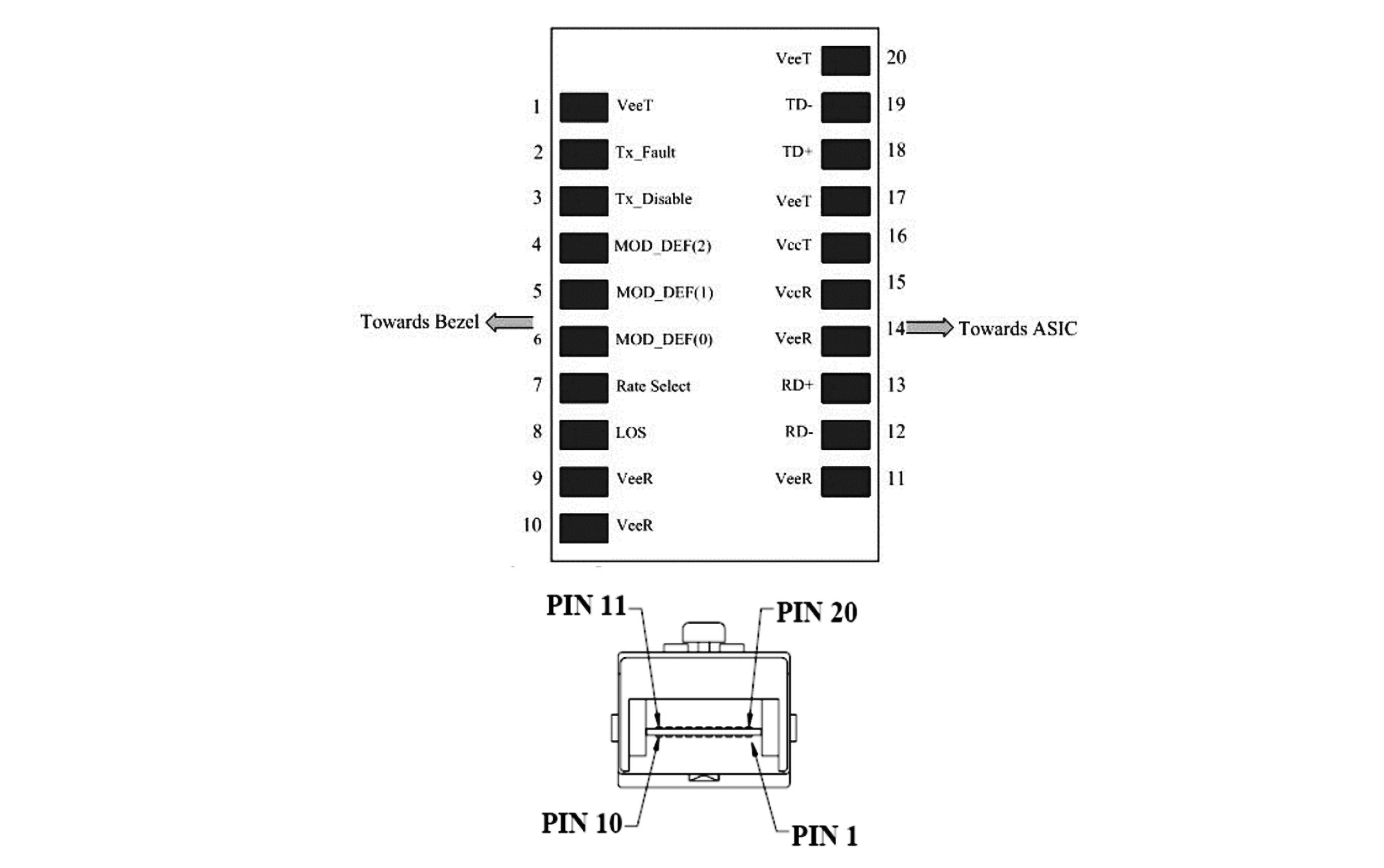

PIN FUNCTION DEFINITIONS

Pin	Name	Function	Plug Seq.	Notes
1	VeeT	Transmitter ground	1	5)
2	TX fault	Transmitter fault indication	3	1)
3	TX disable	Transmitter disable	3	2) Module disables on high or open
4	MOD-DEF2	Module definition 2	3	3) 2 wire serial ID interface.
5	MOD-DEF1	Module definition 1	3	3) 2 wire serial ID interface.
6	MOD-DEF0	Module definition 0	3	3) Grounded within the module.
7	Rate select	Not connect	3	Function not available
8	LOS	Loss of signal	3	4)
9	VeeR	Receiver ground	1	5)
10	VeeR	Receiver ground	1	5)
11	VeeR	Receiver ground	1	5)
12	RD-	Inv. received data out	3	6)
13	RD+	Received data out	3	6)
14	VeeR	Receiver ground	1	5)
15	VccR	Receiver power	2	7) 3.3V ± 5%
16	VccT	Transmitter power	2	7) 3.3V ± 5%
17	VeeT	Transmitter ground	1	5)
18	TD+	Transmit data In	3	8)
19	TD-	Inv. transmit data In	3	8)
20	VeeT	Transmitter ground	1	5)

Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kinds. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

2) TX disable is an input that is used to shutdown the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled

3) Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K – 10K resistor on the host board. The pull-up voltageshall be VccT or VccR .
Mod-Def 0 is grounded by the module to indicate that the module is present
Mod-Def 1 is the clock line of two wire serial interface for serial ID
Mod-Def 2 is the data line of two wire serial interface for serial ID

4) LOS is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use).Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

5) VeeR and VeeT may be internally connected within the SFP module.

6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 400 and 2000 mV differential (200 –1000 mV single ended) when properly terminated.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP connector pin. Maximum supply current is 300Ma. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1ohm should be used in order to maintain the required voltage at the SFP input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP transceiver module will result in an inrush current of no more than 30Ma greater than the steady state value.VccR and VccT may be internally connected within the SFP transceiver module.

8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 400 – 2000mV (200 – 1000mV single-ended).
