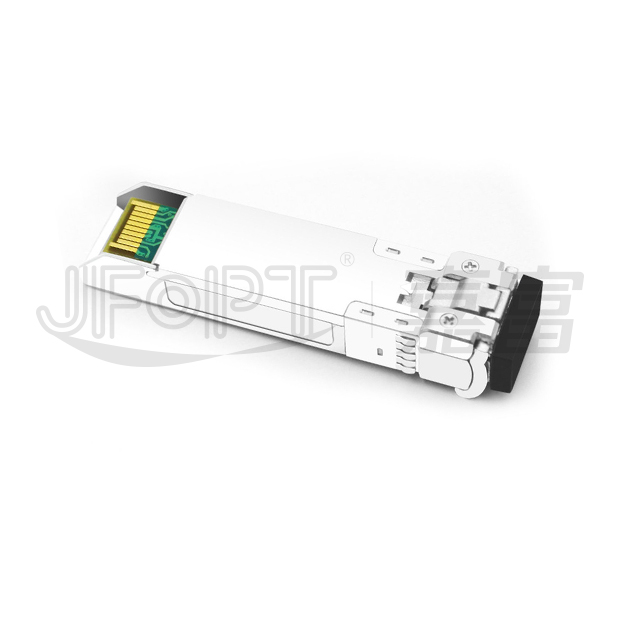

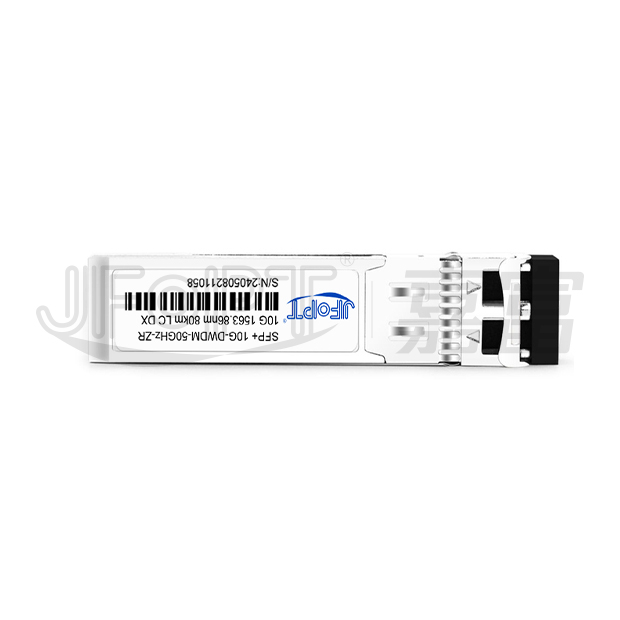

Product model
|
JFTSM-SFP+10-50DW-80(ZR)-LCD
|
Manufacturer brand
|
JFOPT
|
|
Package type
|
SFP+
|

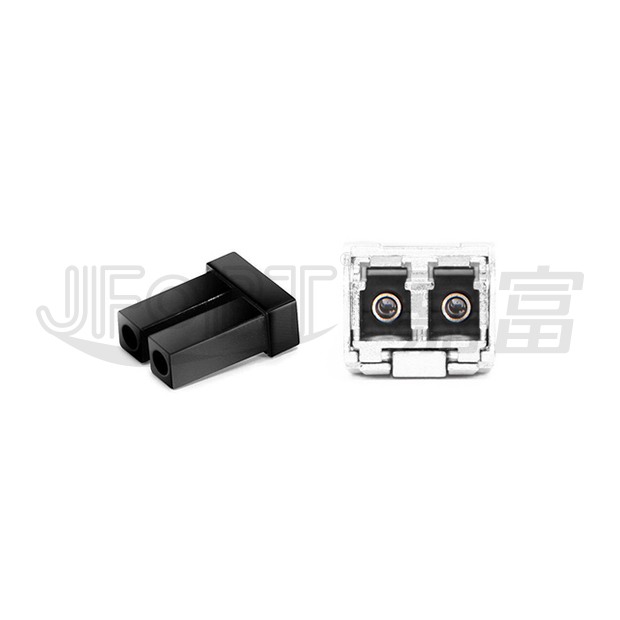

Optical connector
|
LC Duplex
|
|
Max data rate
|
11.3Gbps
|
Channel data rate
|
10.3125Gbps
|
|
Effective transmission distance
|
80km
|
||
|
Wavelength
|
1529.16~1567.13nm（（Tunable）;1563.86nm-1528.77nm
|
Operating voltage
|
3.3V
|
|
Fiber type
|
SMF
|
Core size
|
9/125
|
|
Transmitter type
|
Monolithic MZM Tunable TOSA
|
Receiver type
|
APD
|
|
TX power
|
-1~3dBm,-1~4dBm;0~5dBm
|
Receiver sensitivity
|
-23dBm
|
|
Digital optical monitoring(DOM)
|
YES
|
Receiver overload
|
-7dBm
|
|
Power consumption
|
C<2.0W,I<2.5W;C<1.65W
|
Protocols
|
SFF-8431
SFF-8472
SFF-8690
ITU-T G.698.1
|
|
Operating temperature(Commercial)
|
0℃~+70℃
|
Storage temperature(Commercial)
|
-40℃~+85℃
|
|
Operating temperature(Industrial)
|
-40℃~+85℃
|
Storage temperature(Industrial)
|
-40℃~+85℃
|
PRODUCTION LINE INTRODUCTION
JFOPT continues to invest in optical transceiver production, covering a full range of optical transceiver such as 1*9, SFP, 10G, 25G, 100G, 200G, 400G, 800G GPON/EPON/XG/XGSPON OLT transceiver. At the same time, our company provides TOSA, ROSA, BOSA semi-finished device solutions for the downstream peer. JFOPT's production line has a daily production capacity of 10,000 optical transceivers and 20,000 optical devices. In addition, JFOPT's optical transceiver have industry-leading high temperature resistance and anti-interference capability, and are widely used in computing centers, operators, traffic security, power facilities and other industries.

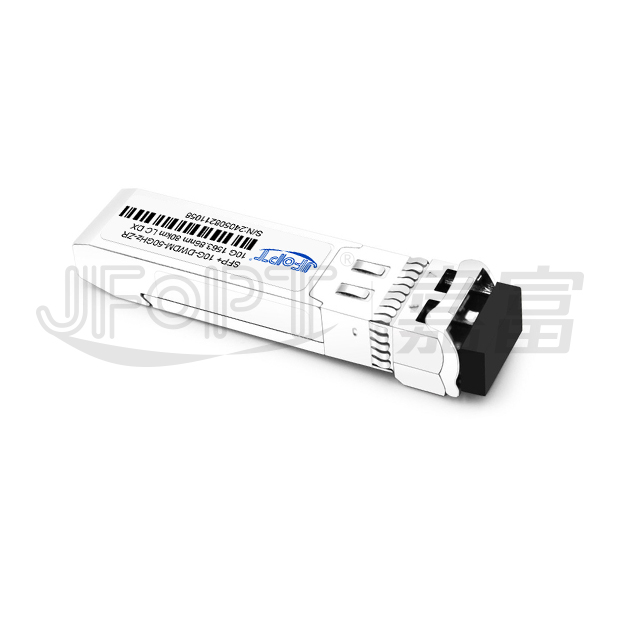

PRODUCT PRESENTATION
The JFOPT SFP+ 10G 50GHz DWDM 80km ZR LC DX transceiver is a high-performance cost-effective solution supporting multi-rate data transmission from 9.95Gbps to 11.3Gbps with CDR and 8.5Gbps bypassing CDR, delivering 80km transmission over single-mode fiber (SMF); featuring dual-section design with transmitter integrating laser driver/TTOSA and receiver combining APD photodiode with transimpedance amplifier (TIA); hot-pluggable into 20-pin connector with high-speed electrical interface based on low-voltage logic, 100-ohm differential impedance and AC coupling; TX_DIS disables optical output via LVTTL high-level input, Tx_Fault signals laser/safety issues, and RX_LOS indicates incoming optical signal loss; equipped with serial EEPROM supporting monitoring/configuration via 2-wire SFP management interface, with memory organized into lower area storing basic digital diagnostic (DD) data and upper area housing specific data in high-memory tables.
TRANSCEIVER SERIES PRODUCTS
PRODUCTION & TESTING EQUIPMENT
FEATURES
| Up to 80km transmission on SMF | Support multi rate 9.95Gbps to 11.3Gbps with CDR,8.5Gbps bypass CDR | ||||||||
| Monolithic MZM tunable TOSA | APD receiver | ||||||||
| 50GHz ITU-based channel spacing (C-Band) with a wavelength locker | Total 96 channels | ||||||||
| SFI electrical interface | 2-wire interface for integrated Digital diagnostic monitoring | ||||||||
| SFP+ MSA package with duplex LC conn | Hot pluggable | ||||||||
| Very low EMI and excellent ESD protection | Power consumption less than 2.5W | ||||||||
| Operating case temperature: -5~85°C |
APPLICATION
| DWDM 10Gb/s SONET/SDH | DWDM 10Gb/s ethernet & 10Gb/s fibre channel | ||||||||
| DWDM 10Gb/s SONET/SDH w/FEC | DWDM 10Gb/s ethernet & 10Gb/s fibre channel w/FEC |
STANDARD COMPLIANCE
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Max. | Unit | Notes | ||||
| Storage temperature | Ts | -40 | 85 | ℃ | - | ||||
| Supply voltage | Vcc3 | 0 | 3.63 | V | - | ||||
| Relative humidity | RH | 5 | +85 | % | Note1 | ||||
RECOMMENDED OPERSTING CONDITIONS
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes | |||
| Operating case temperature | Tc | -5 | 25 | 85 | °C | - | |||
| Supply voltage | Vcc | 3.13 | 3.3 | 3.47 | V | - | |||
| Power consumption | P | - | - | 2.5 | W | - | |||
| Data rate | - | 8.5 | 10.3125 | 11.3 | Gbps | - | |||
| Transmission distance | - | - | - | 80 | Km | - | |||
TRANSMITTER OPERATING CHARACTERISTIC-OPTICAL & ELECTRICAL
| Parameter | Symbol | Min. | Typical | Max | Unit | Note | |||
| Data rate | DR | 8.5 | 10.3125 | 11.3 | Gbps | - | |||
| Center wavelength | CW | 191.30 | - | 196.05 | THz | - | |||
| Wavelength range | λC | 1529.16 | - | 1567.13 | nm | - | |||
| Center frequqncy variation | CFV | - | - | +/-2.5 | GHz | - | |||
| -20dB spectral width | Δλ20 | - | - | 0.3 | nm | - | |||
| Side mode suppression ratio | SMSR | 30 | - | - | nm | - | |||
| Laser off power | Poff | - | - | -30 | dBm | - | |||
| Optical eye mask | EMM | 5 | - | - | % | - | |||
| Average optical power | PO | -1 | - | 3 | dBm | - | |||
| Extinction ratio | ER | 8.2 | - | dB | - | ||||
| Cross point of eye | CP | 40 | - | 52 | % | - | |||
| Transmitter dispersion renalty | TDP | - | - | 2 | dB | - | |||
| Relative intensity noise | RIN 12OMA | - | - | -128 | dB/Hz | - | |||
| Optical eye mask | ORLT | - | - | -27 | dB | - | |||
| Tx Input diff voltage | VI | 200 | - | 700 | mV | - | |||
RECEIVER OPERATING CHARACTERISTIC-OPTICAL & ELECTRICAL
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note | |||
| Data rate | DR | 8.5 | 10.3125 | 11.3 | Gbps | - | |||
| Center wavelength | CW | 1260 | - | 1600 | nm | - | |||
| Sensitivity @(BER=1E-12, PRBS 2^31-1, NRZ, 9.95Gbps~10.7Gbps data rate | Psen | - | - | -23 | dBm | - | |||
| Sensitivity @(BER=1.0E-04, PRBS 2^31- 1, NRZ,11.3Gbps data rate) | Psen | - | - | -26 | dBm | - | |||
|
B2B OSNR Tolerance @ 1E-4
|
- | - | - | 16 | dB | - | |||
| Input optical power(no damaged) | IOP | 4 | - | - | dBm | - | |||
| Saturation power（EOL） | SP | -7 | - | - | dBm | - | |||
| Loss of signal - asserted | LosA | -35 | - | - | dBm | - | |||
| Loss of signal - deasserted | LosD | - | - | -28 | dBm | - | |||
| Hysteresis | LosH | 0.5 | - | - | dB | - | |||
| Rx output diff voltage | Vo | 250 | - | 850 | mV | - | |||
| Loss of signal voltage | VOH | Vcc-0.5 | - | Vcc+0.3 | V | - | |||
| VOL | 0 | - | 0.4 | V | - | ||||
DIGITAL DIAGNOSTIC FUNCTIONS
| Parameter | Symbol | Min. | Typical | Max | Units | Notes | |||
| Temperature monitor absolute error | DMI_Temp | -3 | - | 3 | ℃ | Over operating temperature | |||
| Supplyvoltage monito rabsolute error | DMI_Vcc | -3% | - | 3% | V | - | |||
| Bias current monitor absolute error | DMI_Ibias | -10% | - | 10% | mA | - | |||
| Lase rpower monitor absolute error | DMI_Tx | -3 | - | 3 | dB | - | |||
| RX power monitor absolute error | DMI_Rx | -3 | - | 3 | dB | - | |||
CONTROL AND STATUS I/O TIMING CHARACTERISTICS
| Parameter | Symbol | Min. | Typical | Max | Units | Notes | |||
| TX disable assert time | t_off | - | - | 100 | µs | Note1 | |||
| TX disable negate time | t_on | - | - | 2 | ms | Note2 | |||
| Time to initialize including reset of TX_fault |
t_init | - | - | 300 | ms | Note3 | |||
| Time to initialize cooled module and time to power up a cooled module to power level II | t_start_up_co oled |
- | - | 90 | s | Note4 | |||
| TX fault assert time | t_fault_on | - | - | 1 | ms | Note5 | |||
| TX fault reset time | t_reset | 10 | - | - | µs | Note6 | |||
| LOS assert time | t_loss_on | - | - | 100 | µs | Note7 | |||
| LOS deassert time | t_loss_off | - | - | 100 | µs | Note8 | |||
Notes: [1] Time from rising edge of TX Disable to when the optical output falls below 10% of nominal. [2] Time from falling edge of TX Disable to when the modulated optical output rises above 90% of nominal. [3] From power on or negation of TX Fault using TX Disable. [4] From power supply or hot plug or TX Disable negated during power up, or TX Fault recovery, until cooled power level I part (or cooled power level II part during Fault recovery) the SFP+ is fully operational [5] Time from fault to TX fault on. [6] Time from TX fault to TX nominal. [7] Time from LOS state to RX LOS assert. [8] Time from non-LOS state to RX LOS deassert. |
|||||||||

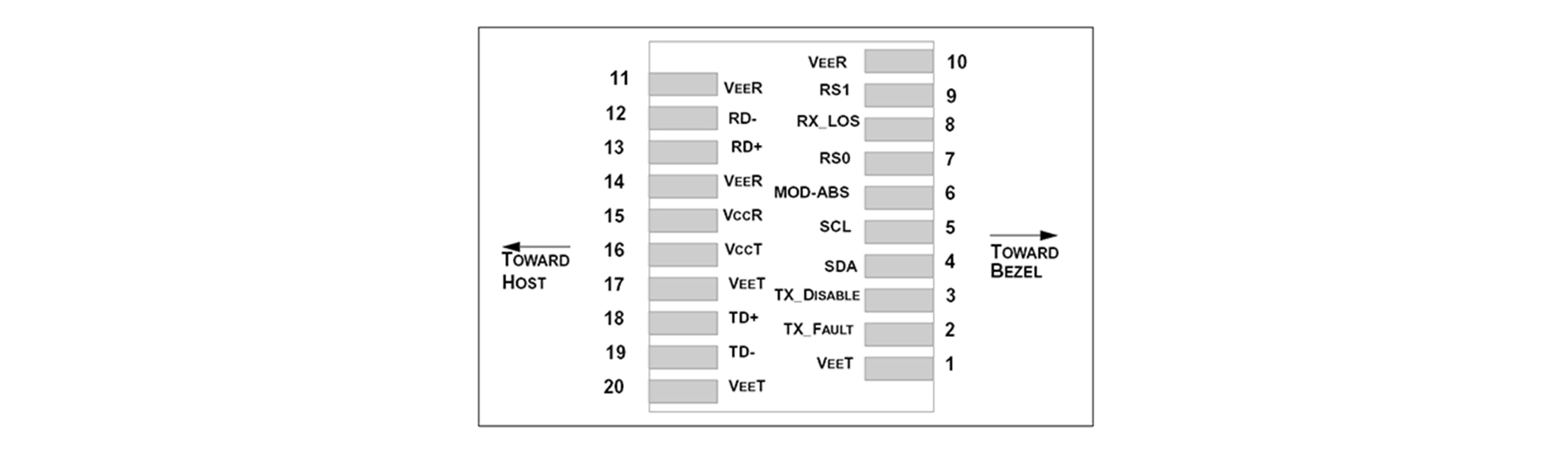

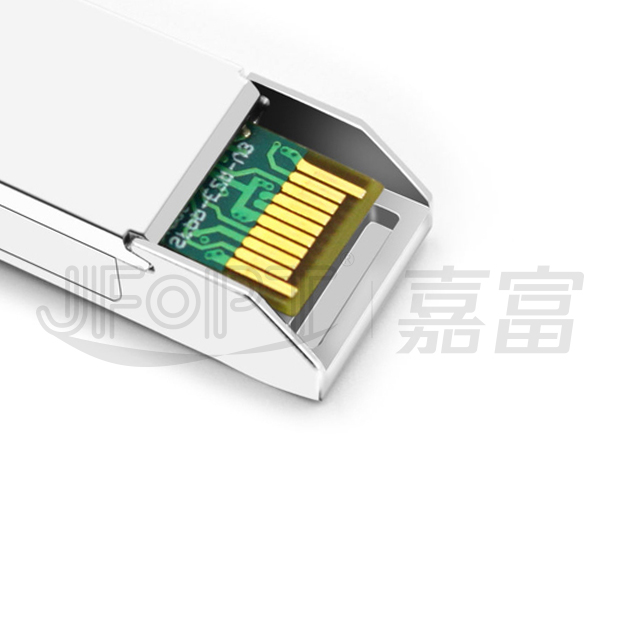

PIN-OUT DEFINITIONS
| Logic | Symbol | Name/Description | Note | ||||||
| 1 | - | VeeT | Module transmitter ground | Note1 | |||||
| 2 | LVTTL-O | TX_fault | Module transmitter fault | Note2 | |||||
| 3 | LVTTL-I | TX_disable | Transmitter disable;Turnsofftrans mitterlaseroutput | Note3 | |||||
| 4 | LVTTL-I/O | SDA | 2-Wire serial interface data line(Same as MOD-DEF2 asdefinedin the INF-8074i) | Note4 | |||||
| 5 | LVTTL-I/O | SCL | 2-Wire serial interface clock(Same as MOD-DEF1 as defined intheINF-8074i) | Note4 | |||||
| 6 | MOD-ABS | Module absent, connected to VeeT or VeeR in the module | Note5 | ||||||
| 7 | LVTTL-I | RS0 | Rate select 0 | - | |||||
| 8 | LVTTL-O | RX_LOS | Receiver Loss of Signal indication (In FC designated as RX_LOS, in SONET designated as LOS, and in ethernet designated at signal detect) | Note2 | |||||
| 9 | LVTTL-I | RS1 | Rate select 1 | - | |||||
| 10 | - | VeeR | Module receiver ground | Note1 | |||||
| 11 | - | VeeR | Module receiver ground | Note1 | |||||
| 12 | CML-O | RD- | Receiver inverted data output | - | |||||
| 13 | CML-O | RD+ | Receiver non inverted data output | - | |||||
| 14 | - | VccR |
    Module receiver ground
|
Note1 | |||||
| 15 | - | VeeR | Module receiver 3.3 V supply | - | |||||
| 16 | - | VccT | Module transmitter 3.3 V supply | Note1 | |||||
| 17 | - | VeeT | Module transmitter ground | - | |||||
| 18 | CML- I | TD+ | Transmitter non-inverted data input | - | |||||
| 19 | CML- I | TD- | Transmitter inverted data input | - | |||||
| 20 | - | VeeT | Module yransmitter ground | Note1 | |||||
Notes:
[1]The module signal ground pins, VeeR and VeeT, shall be isolated from the module case.
[2]This pin is an open collector/drain output pin and shall be pulled up with 4.7k-10kohms to Host_Vcc on the host board. Pull ups can be connected to multiple power supplies, however the host board design shall ensure that no module pin has voltage exceeding module VccT/R + 0.5 V.
[3]This pin is an open collector/drain input pin and shall be pulled up with 4.7k-10kohms to VccT in the module.
[4]See SFF-8431 4.2 2-wire Electrical Specifications.
[5]This pin shall be pulled up with 4.7k-10kohms to Host_Vcc on the host board.
