| Product model | JFTSM-SFP+10-100DW-40(ER)-LCD | Manufacturer brand | JFOPT |
| Package type | SFP+ | Optical connector | LC duplex |
| Max data rate | 11.3Gbps | Channel data rate | 10.5Gbps |
| Effective transmission distance | 40km | ||
| Wavelength | 1528.77nm to 1563.86nm | Operating voltage | 3.3V |
| Fiber type | SMF | Core size | 9/125 |
| Transmitter type | DWDM EML | Receiver type | IDP |
| TX power | -1~4dBm | Receiver sensitivity | -16dBm |
| Digital optical monitoring(DOM) | YES | Receiver overload | 0 |
| Power consumption | C<1.5W,I<1.8W | Protocols | SFF-8431 MSA SFF-8432 MSA SFF-8472 |
| Operating temperature(Commercial) | 0℃~+70℃ | Storage temperature(Commercial) | -40℃~+85℃ |
| Operating temperature(Extended) | -20℃~+85℃ | Storage temperature(Industrial) | -40℃~+85℃ |
JFOPT continues to invest in optical transceiver production, covering a full range of optical transceiver such as 1*9, SFP, 10G, 25G, 100G, 200G, 400G, 800G GPON/EPON/XG/XGSPON OLT transceiver. At the same time, our company provides TOSA, ROSA, BOSA semi-finished device solutions for the downstream peer. JFOPT's production line has a daily production capacity of 10,000 optical transceivers and 20,000 optical devices. In addition, JFOPT's optical transceiver have industry-leading high temperature resistance and anti-interference capability, and are widely used in computing centers, operators, traffic security, power facilities and other industries.

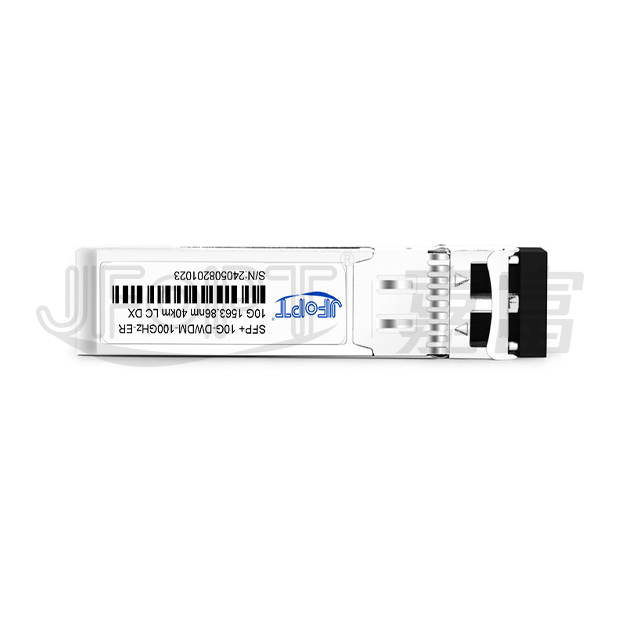

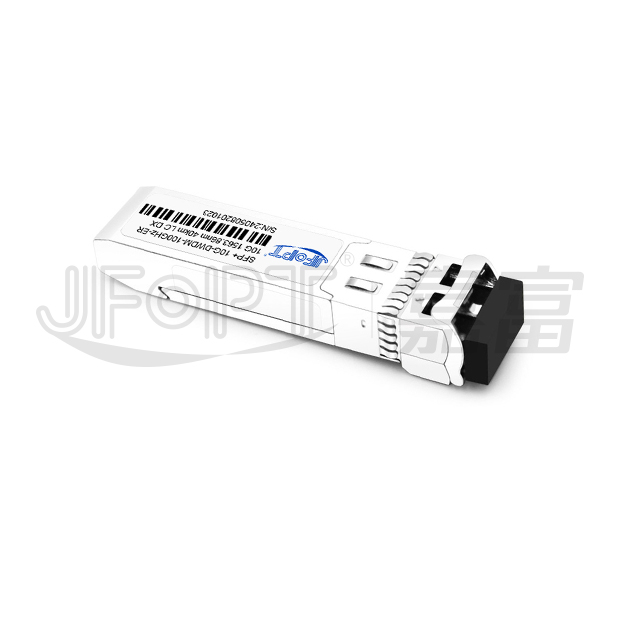

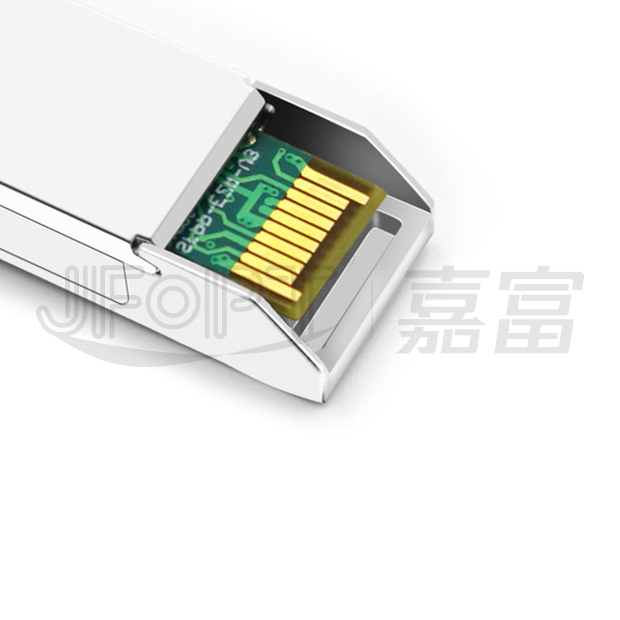

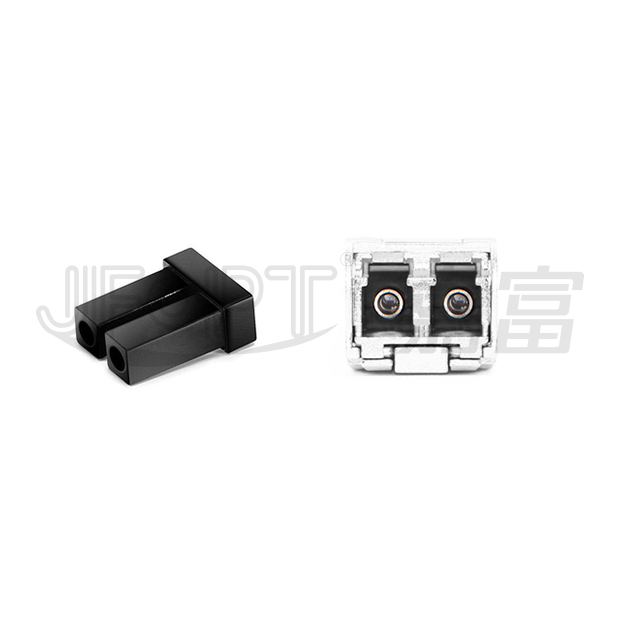

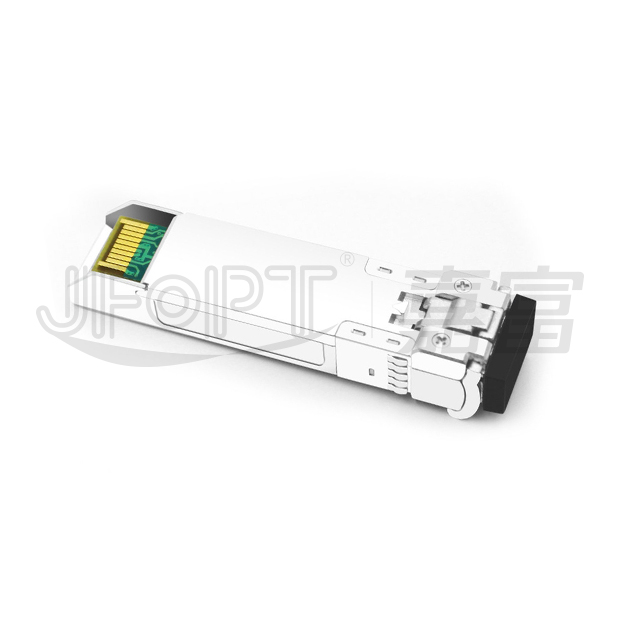

The JFOPT SFP+ 10G 100GHz DWDM 40km ER LC DX series single-mode transceiver is a compact pluggable module designed for duplex optical data communications. Ideal for deployment in DWDM networking equipment within metropolitan access and core networks, this module operates at nominal DWDM wavelengths from 1528nm to 1566nm, in accordance with ITU-T specifications. It is fully compliant with SFF-8431 and SFF-8432 MSA standards.
| Available in all C-band wavelengths on the 100GHz DWDM ITU grid | Duplex LC connector | ||||||||
| Temperature-stabilized DWDM EML transmitter | Power dissipation (0℃ to 70℃) < 1.5W | ||||||||
| Power dissipation (-40℃ to 85℃) < 1.8W | Dispersion tolerance : 800ps/nm | ||||||||
| Hot-pluggable SFP+ footprint | Built-in digital diagnostic functions, including optical power monitoring | ||||||||
| Commercial temperature range: 0℃ to 70℃ |
| 10GBASE-ER/EW | 10G fiber channel | ||||||||
| OBSAI rates 6.144 Gb/s, 3.072 Gb/s,1.536 Gb/s, 0.768Gb/s | CPRI rates 9.830 Gb/s,7.373Gb/s,6.144 Gb/s, 4.915 Gb/s, 2.458 Gb/s,1.229 Gb/s, 0.614Gb/s | ||||||||
| Other optical links |
| Parameter | Symbol | Min | Typ. | Max | Unit | Ref. | |||
| Module form factor | BR | 9.95 | - | 10.5 | Gb/s | 1 | |||
| Number of lanes | BER | - | - | 10-12 | - | 2 | |||
| Maximum aggregate data rate | Lmax | - | 40 | - | km | - | |||
*Notes: 1. 10GBASE-ER, 10GBASE-EW, 1200-SM-LL-L 10GFC. 2. Tested with a PRBS 231-1 test pattern. |
|||||||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | ||||
| Storage temperature | Ts | -40 | - | 85 | °C | ||||
| Supply voltage | Vcc | -0.5 | - | 4 | V | ||||
| Operating relative humidity | - | - | - | 85 | % | ||||
| Parameter | Symbol | Min. | Typ. | Max | Unit | Notes | |||
| Power supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | - | |||
| Power supply current | Icc (0℃ to 70℃) | - | 350 | 455 | mA | - | |||
| Icc (-40℃ to 85℃) | - | 350 | 545 | mA | - | ||||
| Date rate | DR | 0.6 | - | 11.3 | Gbps | Date rate | |||
Transmitter |
|||||||||
| TX_dis | Disable | - | 2 | - | Vcc+0.3 | V | - | ||
| Enable | - | 0 | - | 0.8 | - | ||||
| TX_FAULT | Fault | - | 2 | - | Vcc+0.3 | V | - | ||
| Normal | - | 0 | - | 0.5 | - | ||||
| CML inputs (Differential) | Vin | 250 | - | 1000 | mVpp | AC coupled input | |||
| Input impedance (Differential) | Zin | 85 | 100 | 115 | ohm | Rin > 100 kohm @ DC | |||
Receiver |
|||||||||
| CML outputs (Differential) | Vout | 350 | - | 700 | mVpp | AC coupled outputs | |||
| RX_LOS | Loss | - | 2 | - | Vcc+0.3 | V | - | ||
| Normal | - | 0 |
 -
|
 0.8
|
- | ||||
| Output impedance(Differential) | Zout | 85 | 100 | 115 | ohm | - | |||
| MOD_DEF ( 0:2 ) | VoH | 2.5 | - | - | V | With serial ID | |||
| VoL | 0 | - | 0.5 | V | |||||
| Parameter | Symbol | Min. | Typ. | Max. | Unit | ||||
| Data rate | - | 0.6 | - | 11.3 | Gbps | ||||
Transmitter |
|||||||||
| Side mode suppression ratio | SMSR | 30 | - | - | dB | ||||
| Center wavelength spacing | - | - | 100 | - | GHz | ||||
| - | 0.8 | - | nm | ||||||
| Average output power | Pout | -1 | - | 4 | dBm | ||||
| Average launch power (Tx: OFF) | POFF | - | - | -30 | dBm | ||||
| Extinction ratio | ER | 6 | - | - | dB | ||||
| Transmitter dispersion penalty @800ps/nm | TDP | - | - | 3.0 | dB | ||||
| Pout@TX disable asserted | Pout | - | - | -45 | dBm | ||||
| Relative intensity noise | RIN | - | - | -128 | dB/Hz | ||||
| TX jitter | TXj | Per 802.3ae requirements | |||||||
Receiver |
|||||||||
| Receiver sensitivity | Pmin | - | - | -16 | dBm | ||||
| Receiver overload | Pmax | 0 | - | - | dBm | ||||
| LOS de-assert | LOSD | - | - | -17 | dBm | ||||
| LOS assert | LOSA | -30 | - | - | dBm | ||||
| LOS hysteresis | - | 0.5 | - | - | dB | ||||
*Notes: 1. Output is coupled into a 9/125μm single-mode fiber. 2. Minimum average optical power measured at the BER less than 1E-12. The measurepattern is PRBS 231-1. 3. CML logic, internally AC coupled. |
|||||||||
| Channel | Frequency (THz) | Center wavelength(nm) | Channel | Frequency (THz) | Center wavelength(nm) | ||||
| 17 | 191.7 | 1563.86 | 40 | 194 | 1545.32 | ||||
| 18 | 191.8 | 1563.05 | 41 | 194.1 | 1544.53 | ||||
| 19 | 191.9 | 1562.23 | 42 | 194.2 | 1543.73 | ||||
| 20 | 192 | 1561.41 | 43 | 194.3 | 1542.94 | ||||
| 21 | 192.1 | 1560.61 | 44 | 194.4 | 1542.14 | ||||
| 22 | 192.2 | 1559.79 | 45 | 194.5 | 1541.35 | ||||
| 23 | 192.3 | 1558.98 | 46 | 194.6 | 1540.56 | ||||
| 24 | 192.4 | 1558.17 | 47 | 194.7 | 1539.77 | ||||
| 25 | 192.5 | 1557.36 | 48 | 194.8 | 1538.98 | ||||
| 26 | 192.6 | 1556.55 | 49 | 194.9 | 1538.19 | ||||
| 27 | 192.7 | 1555.75 | 50 | 195 | 1537.4 | ||||
| 28 | 192.8 | 1554.94 | 51 | 195.1 | 1536.61 | ||||
| 29 | 192.9 | 1554.13 | 52 | 195.2 | 1535.82 | ||||
| 30 | 193 | 1553.33 | 53 | 195.3 | 1535.04 | ||||
| 31 | 193.1 | 1552.52 | 54 | 195.4 | 1534.25 | ||||
| 32 | 193.2 | 1551.72 | 55 | 195.5 | 1533.47 | ||||
| 33 | 193.3 | 1550.92 | 56 | 195.6 | 1532.68 | ||||
| 34 | 193.4 | 1550.12 | 57 | 195.7 | 1531.9 | ||||
| 35 | 193.5 | 1549.32 | 58 | 195.8 | 1531.12 | ||||
| 36 | 193.6 | 1548.51 | 59 | 195.9 | 1530.33 | ||||
| 37 | 193.7 | 1547.72 | 60 | 196 | 1529.55 | ||||
| 38 | 193.8 | 1546.92 | 61 | 196.1 | 1528.77 | ||||
 39
|
193.9 | 1546.12 | - | - | - | ||||

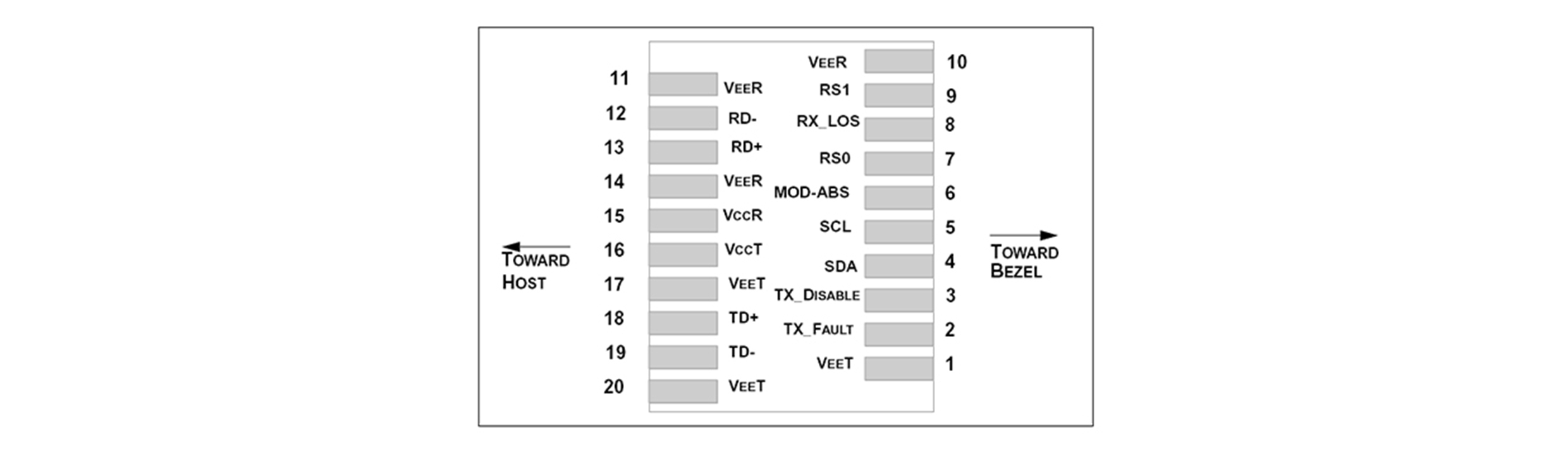

| Pin Num. | Name | Function | Plug Seq. | Notes | |||||
| 1 | VeeT | Transmitter ground | 1 | Note 5 | |||||
| 2 | TX fault | Transmitter fault indication | 3 | Note 1 | |||||
| 3 | TX disable | Transmitter disable | 3 | Note 2, module disables on high or open | |||||
| 4 | SDA | Module definition 2 | 3 | Note 3, data line for serial ID. | |||||
| 5 | SCL | Module definition 1 | 3 | Note 3, clock line for serial ID. | |||||
| 6 | MOD_ABS | Module definition 0 | 3 | Note 3 | |||||
| 7 | RS0 | RX rate select(LVTTL). | 3 | Rate select 0, optionally controls SFP+ module receiver. This pin is pulled low to VeeT with a>30K resistor.. | |||||
| 8 | LOS | Loss of signal | 3 | Note 4 | |||||
| 9 | RS1 | TX rate select(LVTTL). | 1 | Rate select 1, optionally controls SFP+ module transmitter. This pin is pulled low to VeeT with a >30K resistor. | |||||
| 10 | VeeR | Receiver ground | 1 | Note 5 | |||||
| 11 | VeeR | Receiver ground | 1 | Note 5 | |||||
| 12 | RD- | Inv. received data out | 3 | Note 6 | |||||
| 13 | RD+ | Received data out | 3 | Note 7 | |||||
| 14 | VeeR | Receiver ground | 1 | Note 5 | |||||
| 15 | VccR | Receiver power | 2 | 3.3V ± 5%, Note 7 | |||||
| 16 | VccT | Transmitter power | 2 | 3.3V ± 5%, Note 7 | |||||
| 17 | VeeT | Transmitter ground | 1 | Note 5 | |||||
| 18 | TD+ | Transmit data in | 3 | Note 8 | |||||
| 19 | TD- | Inv. transmit data in | 3 | Note 8 | |||||
| 20 | VeeT | Transmitter ground | 1 | Note 5 | |||||
Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K - 10K resistor on the host board. Pull up voltage between 2.0V and VccT, R+0.3V. When high,output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V
2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7-10 K_x0002_resistor. Its states are: Low (0 - 0.8V): Transmitter on(>0.8, < 2.0V): Undefined High (2.0 - 3.465V):Transmitter Disabled Open: Transmitter Disabled
3) Module absent, connected to VEET or VEER in the module.
4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K–10K resistor. Pull up voltage between 2.0V and VccT, R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.
5) VeeR and VeeT may be internally connected within the SFP+ module.
6) RD-/+: These are the differential receiver outputs. They are AC coupled 100 differential lines which should be terminated with100(differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board.
7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 300mA. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internall connected within the SFP+ transceiver module.
8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100 differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board.
