JFOPT QSFP28 100G LAN-WDM 40km Optical Module | 100GBASE-ER4 Duplex LC Transceiver

Product model	JFTSM-QSFP28-100-LW-40(ER4)-LCD	Manufacturer brand	JFOPT
Package type	QSFP28	Optical connector	LC DX
Max data rate	103.1Gbps	Channel data rate	25.78125Gbps
Effective transmission distance	40km
Wavelength	1310nm	Operating voltage	3.3V
Fiber type	SMF	Core size	9/125
Transmitter type	DFB	Receiver type	PIN
TX power	-2.9~4.5dBm	Receiver sensitivity	-18.6Bm
Digital optical monitoring(DDM)	YES	Receiver overload	-4.9dBm
Power consumption	<4.5W	Protocols	100GBASE-ER4 Ethernet Links Infiniband QDR and DDR interconnects
Operating temperature(Commercial)	0℃~+70℃	Storage temperature(Commercial)	-40℃~+85℃

PRODUCTION LINE INTRODUCTION

JFOPT continues to invest in optical transceiver production, covering a full range of optical transceiver such as 1*9, SFP, 10G, 25G, 100G, 200G, 400G, 800G GPON/EPON/XG/XGSPON OLT transceiver. At the same time, our company provides TOSA, ROSA, BOSA semi-finished device solutions for the downstream peer. JFOPT's production line has a daily production capacity of 10,000 optical transceivers and 20,000 optical devices. In addition, JFOPT's optical transceiver have industry-leading high temperature resistance and anti-interference capability, and are widely used in computing centers, operators, traffic security, power facilities and other industries.

PRODUCT PRESENTATION

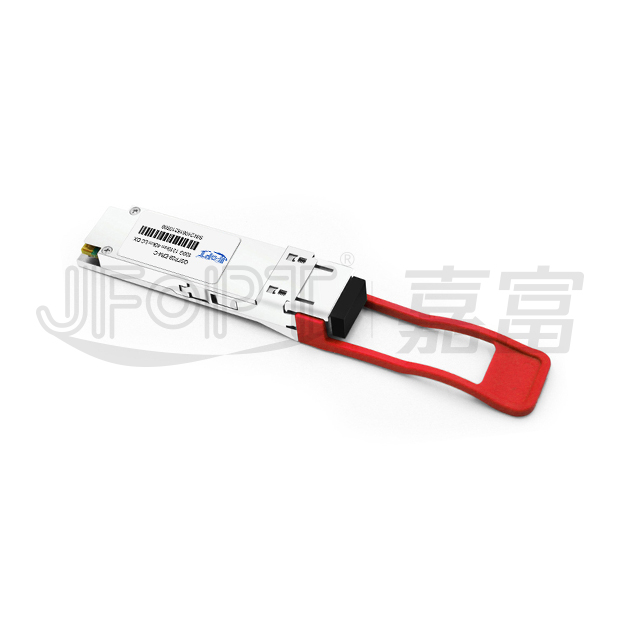

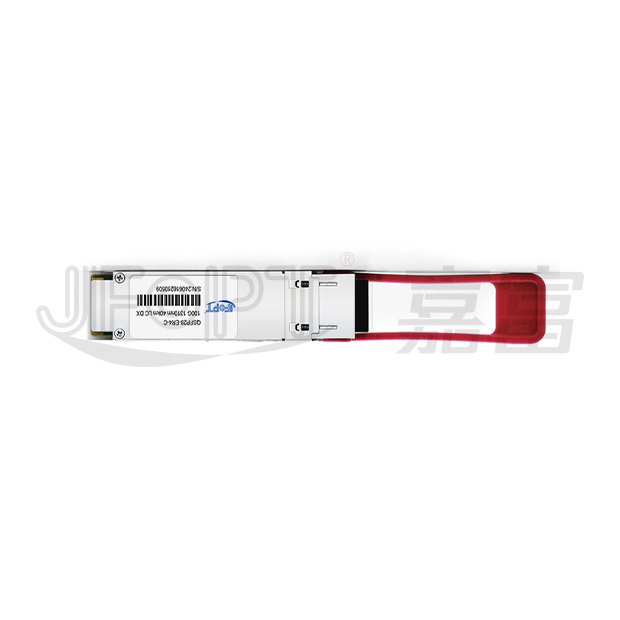

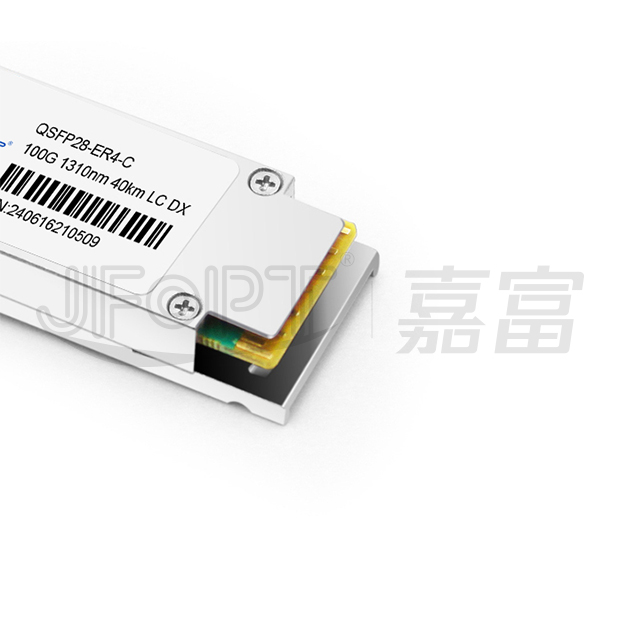

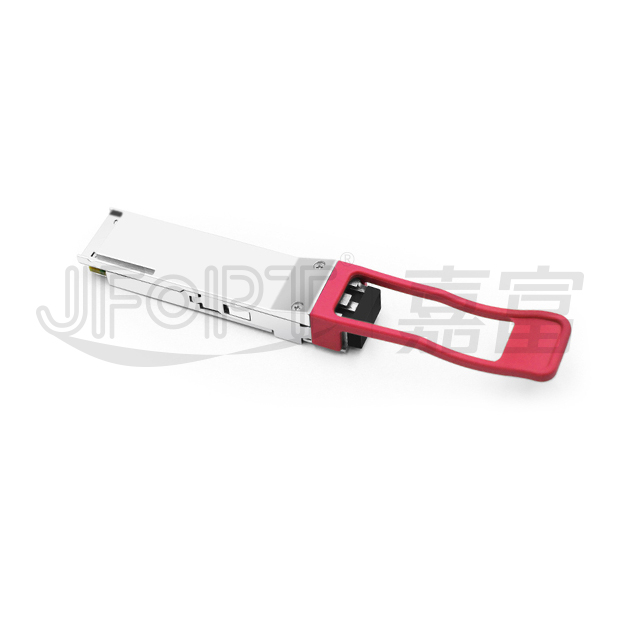

The JFOPT QSFP28 100G LAN-WDM 40km ER4 LC DX is a high-performance 100Gb/s transceiver module designed for optical communication applications compliant with the Ethernet 100GBASE-ER4 standard. It converts four 25Gb/s electrical input channels into four LAN WDM optical signals, multiplexing them into a single channel for 100Gb/s optical transmission. On the receiver side, it de-multiplexes the 100Gb/s optical input back into four LAN WDM optical signals and converts them into four electrical output channels.The central wavelengths of the four LAN WDM channels are 1295.56nm, 1300.05nm, 1304.58nm, and 1309.14nm, consistent with the LAN WDM wavelength grid defined in IEEE 802.3ba. Equipped with high-performance cooled LAN WDM DFB transmitters and high-sensitivity APD receivers, the module ensures exceptional performance for 100Gigabit Ethernet applications over links up to 40km.Designed according to the QSFP+ Multi-Source Agreement (MSA), the transceiver features a compact form factor, reliable optical/electrical connections, and a digital diagnostic interface. Built to withstand extreme operating conditions, including high temperatures, humidity, and EMI interference, it ensures robust and reliable performance in demanding environments.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

Compliant to ethernet 100GBASE-ER4					Supports 103.1Gb/s aggregate bit rate
Transmitter:cooled 4x25Gb/s LAN WDM TOSA(1295.56,1300.05,1304.58,1309.14nm)					Receiver:4x25Gb/sAPD ROSA

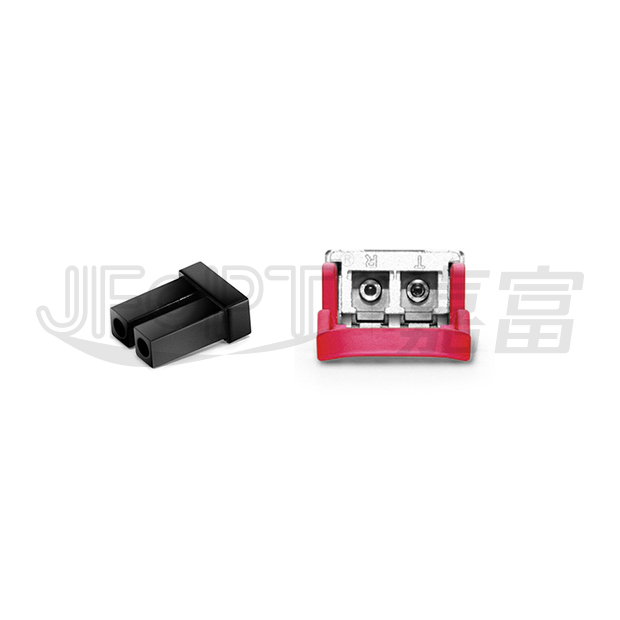

Up to 40km reach for G.652 SMF with FEC					Duplex LC optical receptacle
4x25G electrical interface(OIF CEI-28G-VSR)					Maximum power consumption 4.5W
Single+3.3V power supply					Case operating temperature:0~+70℃

APPLICATION

100GBASE-ER4 ethernet links

Infiniband QDR and DDR interconnects

STANDARD COMPLIANCE

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min.	Max.	Unit
Supply voltage	VCC	-0.5	+3.6	V
Storage temperature	TC	-20	+85	℃
Relative humidity	RH	5	85	%

These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.

RECOMMENDED OPERATING ENVIRONMENT

Parameter	Symbol	Min	Typical	Max	Unit
Power supply voltage	VCC	3.13	3.3	3.47	V
Operating case temperature	Tca	0	-	70	℃
Data rate per lane	fd	-	25.78125	-	Gb/s
Link distance	D	-	-	40	km

ELECTRICAL CHARACTERISTICS

Parameter	Symbol	Min	Typical	Max	Unit	Ref
Transmitter
Input differential impedance	Rin	90	100	110	Ω	1
Differential input voltage amplitude	Vin	900	-	-	mVp-p	2
Receiver
Output differential impedance	Rout	90	100	110	Ω	1
Differential output voltage amplitude	Vout	-	-	900	mVp-p	3
Notes: [1]AC coupled. [2]Differential input voltage amplitude is measuredbetween TxnP and TxnN. [3]Differentialoutput voltage amplitude is measured between RxnP and RxnN.

TRANSITTER SPECIFICATIONS-OPTICAL

Parameter		Symbol	Min	Typical	Max	Unit
Center wavelength	Ch0	λ0	1294.53	1295.56	1296.59	nm
	Ch1	λ1	1299.02	1300.05	1301.09	nm
	Ch2	λ2	1303.54	1304.58	1305.63	nm
	Ch3	λ3	1308.09	1309.14	1310.09	nm
Bit rate per channel		BR	25.78125±100ppm			Gb/s
Side mode suppression ratio		SMSR	30	-	-	dB
Average launch power,each lane		-	-2.9	-	4.5	dBm
Launch power in OMA minus TDP,each lane		OMA-TDP	-0.65	-	-	dBm
Transmission & dispersion penalty, each lane		TDP	-	-	2.5	dB
Relative intensity noise		RIN	-	-	-130	dB/Hz
Transmitter reflectance		RT	-	-	-12	dB
Extinction ratio		ER	7	-	-	dB
Transmitter eyemask definition{X1,X2,X3,Y1,Y2,Y3}		{0.25,0.4,0.45,0.25,0.28,0.4}
Average launch power of OFF transmitter,each lane		-	-	-	-30	dBm
Optical return loss tolerance		-	-	-	20	dB

RECEIVER SPECIFICATIONS-OPTICAL

Parameter		Symbol	Min.	Typical	Max.	Unit
Center wavelength	Ch0	λ0	1294.53	1295.56	1296.59	nm
	Ch1	λ1	1299.02	1300.05	1301.09	nm
	Ch2	λ2	1303.54	1304.58	1305.63	nm
	Ch3	λ3	1308.09	1309.14	1310.09	nm
Bit rate per channel		BR	25.78125±100ppm			Gb/s
Damage threshold,each lane		-	-	-	-3	dBm
Averagereceive power,each lane		-	-20.9	-	-4.9	dbm
Unstressed sensitivity(OMA) at 5x105 BER		OMA	-	-	-18.6	dBm
LOS assert		LOSA	-30	-	-	dBm
LOS de-assert		LOSD	-	-	-24	dBm

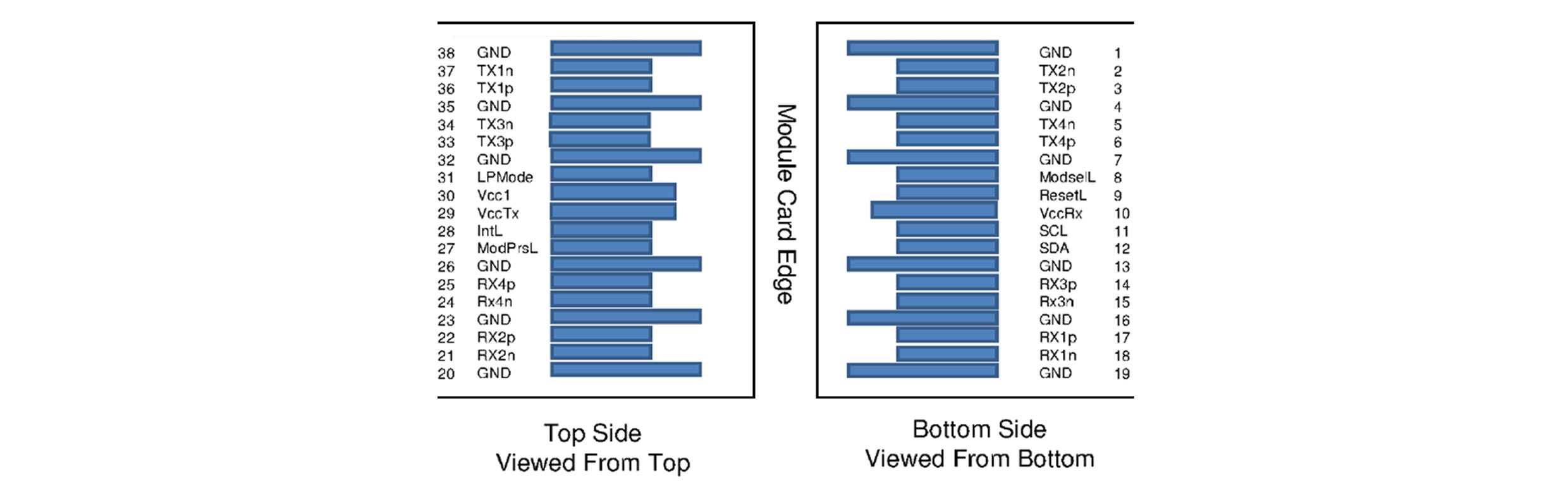

PIN DESCRIPTION

PIN DEFINITIONS

Pin	Symbol	Name/Description
1	GND	Ground
2	Tx2n	Transmitter inverted data input
3	Tx2p	Transmitter non-inverted data input
4	GND	Ground
5	Tx4n	Transmitter inverted data input
6	Tx4p	Transmitter non-inverted data input
7	GND	Ground
8	ModSelL	Module select
9	ResetL	Module reset
10	VCCRx	+3.3V power supply receiver
11	SCL	2-wire serial interface clock
12	SDA	2-wire serial interface data
13	GND	Ground
14	Rx3p	Receiver non-inverted data output
15	Rx3n	Receiver inverted data output
16	GND	Ground
17	Rxlp	Receiver non-inverted data output
18	Rx1n	Receiver inverted data output
19	GND	Ground
20	GND	Ground
21	Rx2n	Receiver inverted data output
22	Rx2p	Receiver non-inverted data output
23	GND	Ground
24	Rx4n	Receiver inverted data output
25	Rx4p	Receiver non-inverted data output
26	GND	Ground
27	ModPrsL	Module present
28	IntL	Interrupt
29	VCC Tx	+3.3V power supply transmitter
30	VCC1	+3.3V power Supply
31	LPMode	Low power mode
32	GND	Ground
33	Tx3p	Transmitter non-inverted data input
34	Tx3n	Transmitter inverted data input
35	GND	Ground
36	Txlp	Transmitter non-inverted dataInput
37	Tx1n	Transmitter inverted data input
38	GND	Ground
