Product model | JFTSM-QSFP56-200-85-01(SR4)-MPO8/12 | Manufacturer brand | JFOPT |
Package type | QSFP56 | Optical connector | MPO 8C/12C |
Max data rate | 200Gbps | Channel data rate | 53.125Gbps |
Effective transmission distance(OM3) | 70m | Effective transmission distance(OM4) | 100m |
Wavelength | 850nm | Operating voltage | 3.3V |
Fiber type | MMF | Core size | 50/125 |
Transmitter type | VCSEL | Receiver type | PIN |
TX power | -8.4~4.0dBm | Receiver sensitivity | -6.5dBm |
Digital optical monitoring(DOM) | YES | Receiver overload | 4dBm |
Power consumption | TSOM4-NAALA1C-01<5.5W TSOM4-NAALA1C-02<6W |
Protocols | 200G BASE-SR4 Ethernet |
Operating temperature(Commercial) | 0℃~+70℃ | Storage temperature(Commercial) | -40℃~+85℃ |
JFOPT continues to invest in optical transceiver production, covering a full range of optical transceiver such as 1*9, SFP, 10G, 25G, 100G, 200G, 400G, 800G GPON/EPON/XG/XGSPON OLT transceiver. At the same time, our company provides TOSA, ROSA, BOSA semi-finished device solutions for the downstream peer. JFOPT's production line has a daily production capacity of 10,000 optical transceivers and 20,000 optical devices. In addition, JFOPT's optical transceiver have industry-leading high temperature resistance and anti-interference capability, and are widely used in computing centers, operators, traffic security, power facilities and other industries.

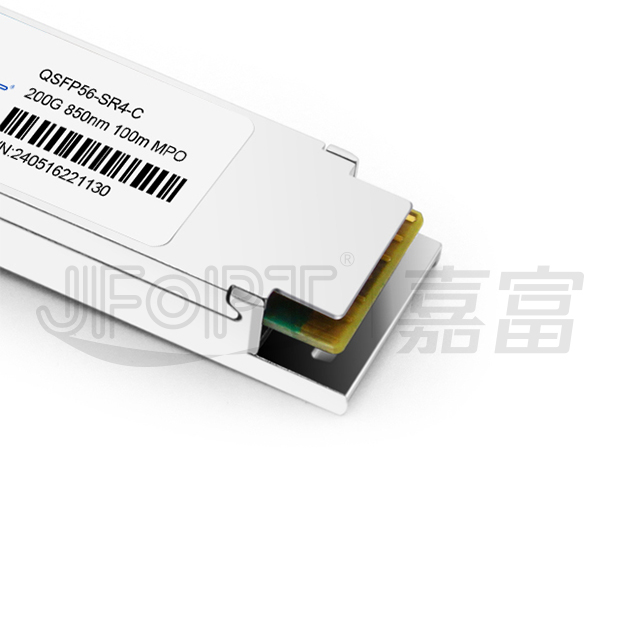

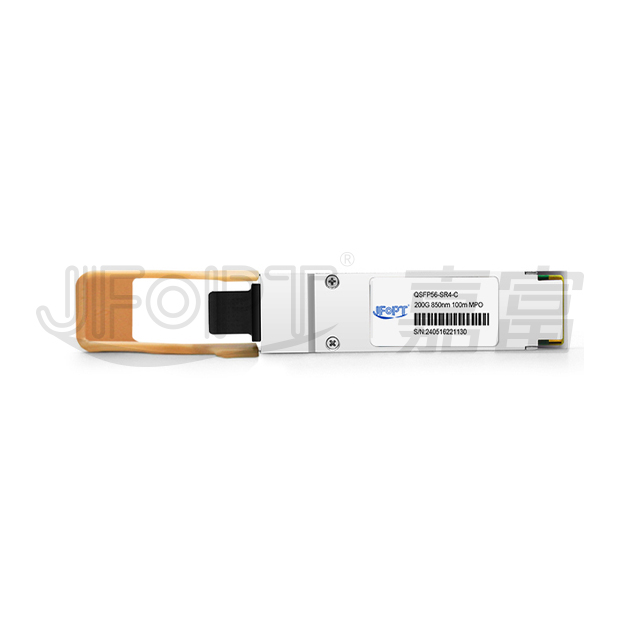

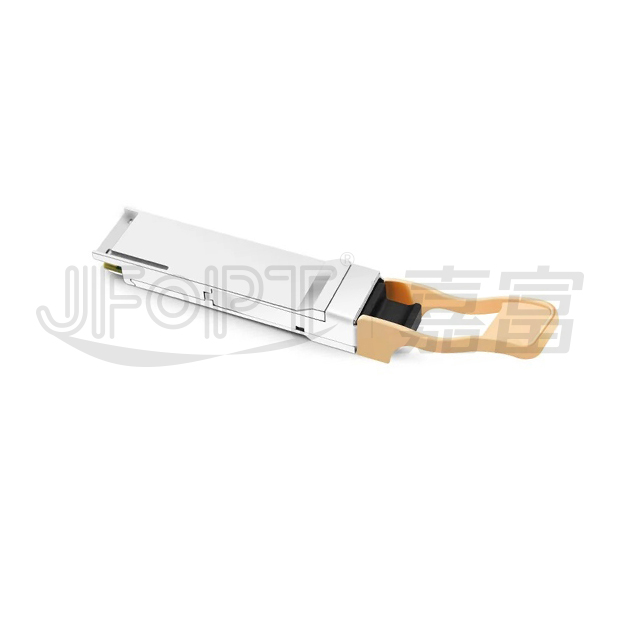

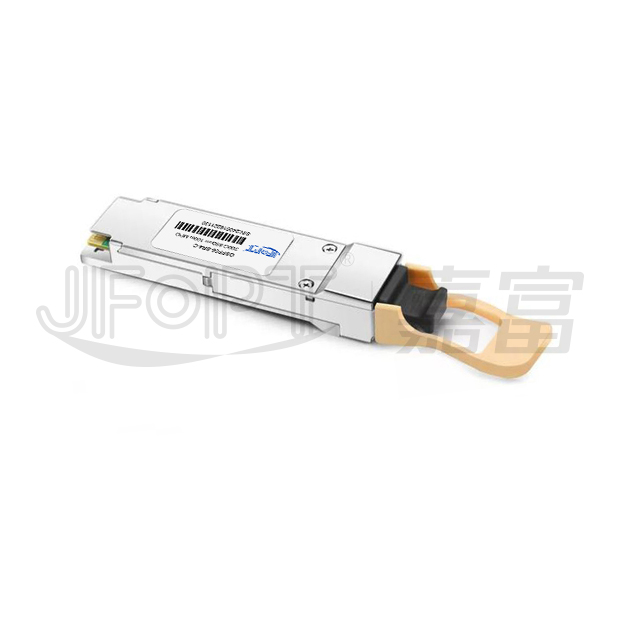

The JFOPT QSFP56 200G 850nm 100m SR4 MPO 8/12 Transceiver is a high-performance, pluggable fiber-optic module designed for 200Gbps short-range (SR) applications. It features four channels, each operating at 53.125Gbps, and supports data transmission distances of up to 70 meters over OM3 fiber and 100 meters over OM4 fiber. The transceiver employs an MPO receptacle for its optical interface and utilizes a 38-contact edge-type connector for its electrical interface. Optimized for multimode fiber systems, it operates at a nominal wavelength of 850nm, making it ideal for efficient and reliable short-range data communication and interconnect solutions.
Hot-pluggable QSFP56 form factor | Data Rate up to 53.125 Gb/s PAM4 per lane | ||||||||
4x53Gbps PAM4 transmitter and PAM4 receiver | 4 channels 850nm VCSEL laser array and 4 channels PIN photo-detector array | ||||||||
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF | Digital diagnostics functions are available via the I2C interface | ||||||||
Single 3.3V power supply and power dissipation: TSQM4-NAALA1C-01<5.5W TSQM4-NAALA1C-02<6W |

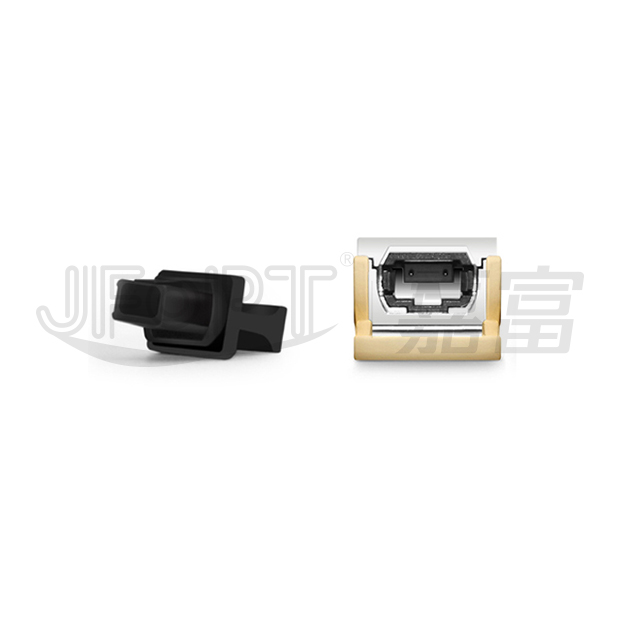

MPO-12 PC connector | ||||||||
Operating case temperature:0℃~+70℃ |
200G BASE-SR4 ethernet |
Parameter | Symbol | Min. | Max. | Unit | |||||
Power supply voltage | VCC | -0.5 | +3.6 | V | |||||
Storage temperature | TC | -40 | +85 | ℃ | |||||
Relative humidity | RH | 5 | 85 | % |
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
Parameter | Symbol | Min | Typical | Max | Unit | ||||
Power supply voltage | VCC | 3.13 | 3.3 | 3.47 | V | ||||
Operating case temperature | Tca | 0 | - | 70 | ℃ |
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Data rate per lane | DR | - | 53.125 | - | Gbps | - | |||
Transmitter |
|||||||||
Single ended output voltage tolerance | - | -0.3 | - | 4.0 | V | - | |||
Common mode voltage tolerance | - | 15 | - | - | mV | - | |||
Input differential impedance | Rin | - | 100 | - | Ω | - | |||
Differential input voltage swing | Vin | 300 | - | 1100 | mV | - | |||
Tx fault | VoL | -0.3 | - | 0.4 | V | At 0.7mA | |||
Receiver |
|||||||||
Single ended output voltage tolerance | - | -0.3 | - | 4 | V | - | |||
Differential output swing | Vout | 300 | - | 900 | mV | - | |||
Output differential impedance | Rout | - | 100 | - | Ω | - |
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Transmitter |
|||||||||
Center wavelength | λ | 820 | 850 | 880 | nm | - | |||
RMS spectral width | Pm | - | - | 0.6 | nm | 1 | |||
Average optical power | Po | -6.5 | - | 4 | dBm | 2 | |||
Extinction ratio | ER | 3 | - | - | dBm | - | |||
Optical modulation amplitude | OMA | -4.5 | - | 3 | dB | - | |||
Transmitter and dispersion eye closure | TDECQ | - | - | 4.5 | dB | - | |||
Optical return loss tolerance | ORL | - | - | 12 | dB | - | |||
Receiver |
|||||||||
Center wavelength | λ | 820 | - | 880 | nm | ![]() |
|||
Average receive power,each lane | - | -8.4 | - | 4 | dBm | - | |||
Receive power(OMAouter),each lane | - | - | - | 4 | dBm | - | |||
Receiver sensitivity(OMAAut) | Psens | - | - | -6.5 | dBm | 3 | |||
LOS asserted | Lsa | -30 | - | - | dBm | - | |||
LOS De-asserted | Lda | - | - | -10 | dBm | - | |||
LOS hysteresis | Lh | 0.5 | - | - | dB | - | |||
Note: [1]Trade-offs are available between spectral width,center wavelength and minimum OMA. [2]The optical power is launched into MMF. [3]BER=2.4E-4;PRBS31Q@26.5625GBd.Pre-FEC. |

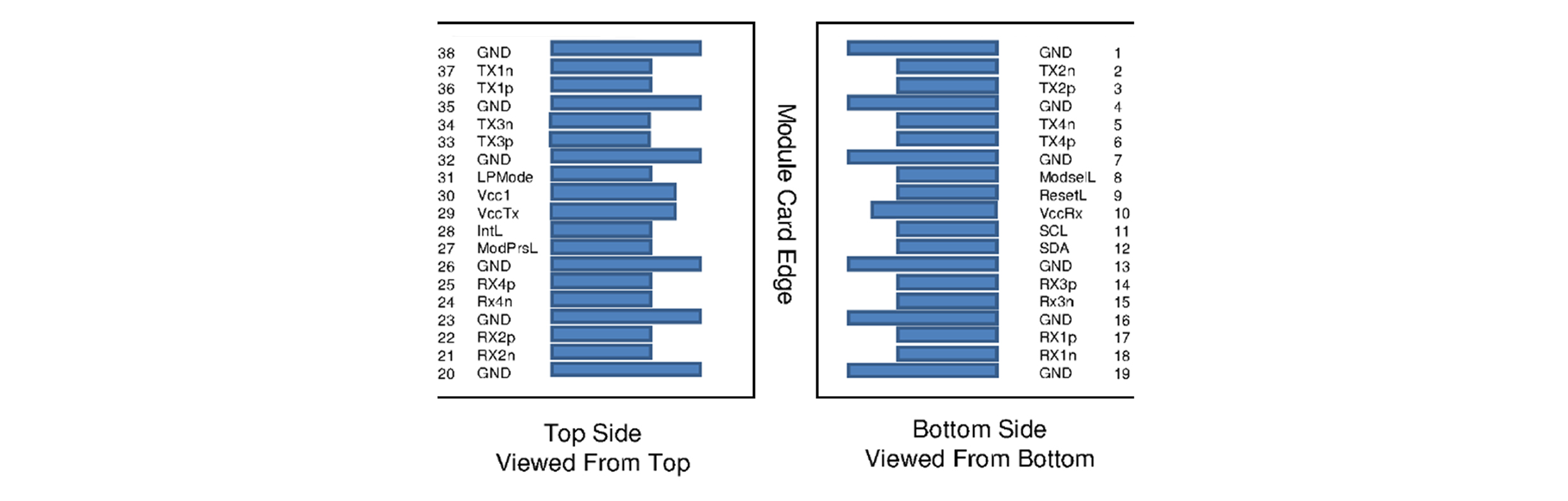

Pin | Symbol | Name/Description | |||||||
1 | GND | Ground | |||||||
2 | Tx2n | Transmitter inverted data input | |||||||
3 | Tx2p | Transmitter non-inverted data input | |||||||
4 | GND | Ground | |||||||
5 | Tx4n | Transmitter inverted data input | |||||||
6 | Tx4p | Transmitter non-inverted data input | |||||||
7 | GND | Ground | |||||||
8 | ModSelL | Module select | |||||||
9 | ResetL | Module reset | |||||||
10 | VCCRx | +3.3V power supply receiver | |||||||
11 | SCL | 2-wire serial interface clock | |||||||
12 | SDA | 2-wire serial interface data | |||||||
13 | GND | Ground | |||||||
14 | Rx3p | Receiver non-inverted data output | |||||||
15 | Rx3n | Receiver inverted data output | |||||||
16 | GND | Ground | |||||||
17 | Rxlp | Receiver non-inverted data output | |||||||
18 | Rx1n | Receiver inverted data output | |||||||
19 | GND | Ground | |||||||
20 | GND | Ground | |||||||
21 | Rx2n | Receiver inverted data output | |||||||
22 | Rx2p | Receiver non-inverted data output | |||||||
23 | GND | Ground | |||||||
24 | Rx4n | Receiver inverted data output | |||||||
25 | Rx4p | Receiver non-inverted data output | |||||||
26 | GND | Ground | |||||||
27 | ModPrsL | Module present | |||||||
28 | IntL | Interrupt | |||||||
29 | VCC Tx | +3.3V power supply transmitter | |||||||
30 | VCC1 | +3.3V power Supply | |||||||
31 | LPMode | Low power mode | |||||||
32 | GND | Ground | |||||||
33 | Tx3p | Transmitter non-inverted data input | |||||||
34 | Tx3n | Transmitter inverted data input | |||||||
35 | GND | Ground | |||||||
36 | Txlp | Transmitter non-inverted dataInput | |||||||
37 | Tx1n | Transmitter inverted data input | |||||||
38 | GND | Ground |
