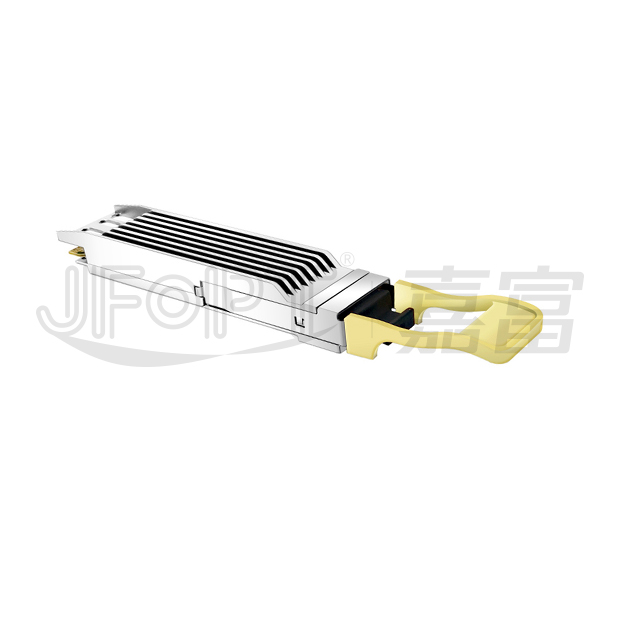

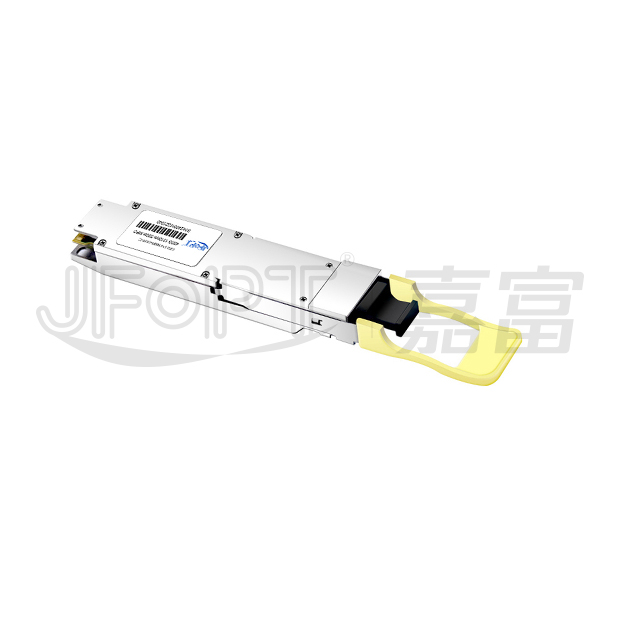

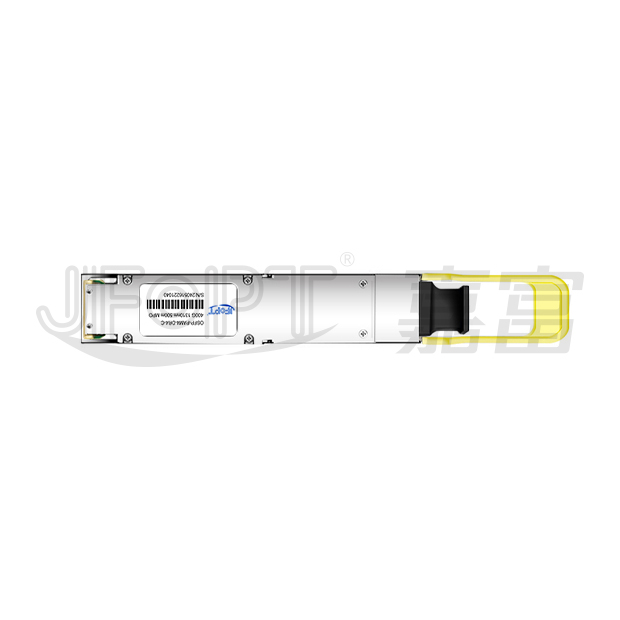

Product model
|
JFTSM-OSFP-400(4x100)-13-05(DR4)-MPO8/12
|
Manufacturer brand
|
JFOPT
|
Package type
|
OSFP
|
Optical connector
|
MPO 8C/12C
|
Max data rate
|
400Gbps
|
Channel data rate
|
53.125Gbps
|
Effective transmission distance
|
500m
|
||
Wavelength
|
1310nm
|
Operating voltage
|
3.3V
|
Fiber type
|
SMF
|
Core size
|
9/125
|
Transmitter type
|
DFB
|
Receiver type
|
PIN
|
TX power
|
-2.9~4.0dBm
|
Receiver sensitivity
|
-4.4dBm
|
Digital optical monitoring(DDM)
|
YES
|
Receiver overload
|
4dBm
|
Power consumption
|
<12W
|
Protocols
|
IEEE802.3bs and OSFP MSA
CMlS 4.0 12C interface 4x100G DR4 applications Data center |
Operating temperature(Commercial)
|
0℃~+70℃
|
Storage temperature(Commercial)
|
-40℃~+85℃
|
JFOPT continues to invest in optical transceiver production, covering a full range of optical transceiver such as 1*9, SFP, 10G, 25G, 100G, 200G, 400G, 800G GPON/EPON/XG/XGSPON OLT transceiver. At the same time, our company provides TOSA, ROSA, BOSA semi-finished device solutions for the downstream peer. JFOPT's production line has a daily production capacity of 10,000 optical transceivers and 20,000 optical devices. In addition, JFOPT's optical transceiver have industry-leading high temperature resistance and anti-interference capability, and are widely used in computing centers, operators, traffic security, power facilities and other industries.

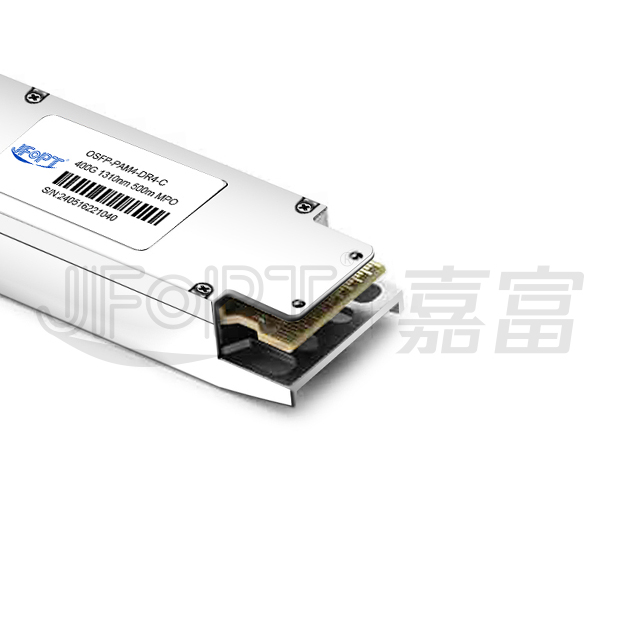

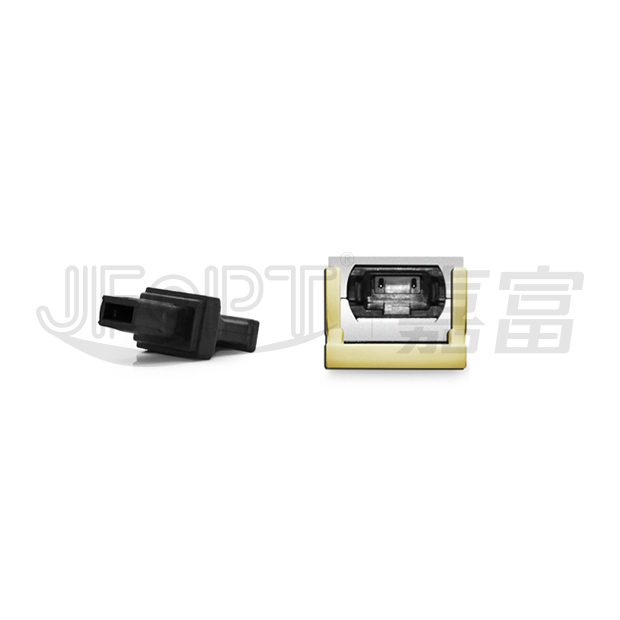

The JFOPT OSFP 400G (4x100G) 1310nm 500m DR4 MPO 8/12 Transceiver is a high-performance optical module designed for 500m optical communication applications. It converts 8 channels of 50Gb/s (PAM4) electrical input into 4 parallel optical signals, each supporting 100Gb/s, for a total data rate of 400Gb/s. On the receiver side, it reverses the process, converting 4 parallel optical signals of 100Gb/s back into 8 channels of 50Gb/s (PAM4) electrical output.The module features an MPO-12 connector for optical connections, with guide pins inside the receptacle ensuring proper alignment. To maintain accurate channel-to-channel connectivity, the cable should not be twisted. Electrical connections are achieved via an OSFP MSA-compliant edge-type connector.Designed according to the OSFP Multi-Source Agreement (MSA) Type 2, the transceiver integrates a compact form factor, robust optical/electrical connections, and a digital diagnostic interface. It is engineered to withstand harsh external conditions, including extreme temperatures, high humidity, and EMI interference, ensuring reliable performance in demanding environments.
Hot-pluggable OSFP form factor | MPO-12connector | ||||||||
Four parallel 1310nm optical lanes | Data rate 106.25Gbps PAM4 per lane | ||||||||
8x53.125GBd (PAM4)electrical interface | Up to 500m transmission on single mode fiber(SMF)with FEC | ||||||||
Digital diagnostics functions are available via the I2C interface | Single 3.3V power supply and power dissipation<12W | ||||||||
Operating case temperature:0℃~+70℃ |
4x100G DR4 applications | Data center |
Parameter | Symbol | Min. | Max. | Unit | |||||
Power supply voltage | VCC | -0.5 | +3.6 | V | |||||
Storage temperature | TC | -40 | +85 | ℃ | |||||
Relative humidity | RH | 5 | 85 | % |
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
Parameter | Symbol | Min | Typical | Max | Unit | ||||
Power supply voltage | VCC | 3.15 | 3.30 | 3.45 | V | ||||
Operating case temperature | Tca | 0 | - | 70 | ℃ |
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Data rate per lane | DR | - | 53.125 | - | Gbps | - | |||
Transmitter |
|||||||||
Input differential impedance | Rin | 90 | 100 | 110 | Ω | - | |||
Differential input voltage swing | Vin | 900 | - | 1100 | mVp-p | - | |||
Receiver |
|||||||||
Differential output swing | Vout | - | - | 900 | mVp-p | - | |||
Output differential impedance | Rout | 90 | 100 | 110 | Ω | - |
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Transmitter |
|||||||||
Center wavelength | λ | 1304.5 | 1310 | 1317.5 | nm | - | |||
Data rate,each lane | - | 53.125±100ppm | GBd | - | |||||
Side-mode suppression ratio | SMSR | 30 | - | - | dB | - | |||
Average optical power,per lane | Po | -2.9 | - | 4 | dBm | 1 | |||
Extinction ratio | ER | 3.5 | - | - | dBm | - | |||
Outer optical modulation amplitude | OMAouter | -0.8 | - | 4.2 | dBm | - | |||
Transmitterand dispersion eye | TDECQ | - | - | 3.4 | dB | - | |||
Optical return loss tolerance | ORL | - | - | 21.4 | dB | - | |||
Receiver |
|||||||||
Center wavelength | λ | 1304.5 | 1310 | 1317.5 | nm | - | |||
Data rate,each lane | - | 53.125±100ppm | GBd | - | |||||
Average receive power,each lane | - | -5.9 | - | 4 | dBm | - | |||
Receive power(OMAouter),each lane | - | - | - | 4.2 | dBm | - | |||
Receiver sensitivity(OMAouter), | - | - | - | -4.4 | dBm | 2 | |||
LOS asserted | Lsa | -15 | - | - | dBm | - | |||
LOS de-asserted | Lda | - | - | -8.9 | dBm | - | |||
LOS hysteresis | Lh | 0.5 | - | - | dB | - | |||
Note: [1]Averagelaunch power,each lane(min)is informative and notthe principal indicator of signal strength. [2]Atransmitter with launch power below this value cannot be compliant;however,a value abovethis does not ensure compliance. [3]Receiver sensitivity (OMAouter),each lane(max)is informative and is defined for a transmitter with SECQ of 0.9dB. |
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

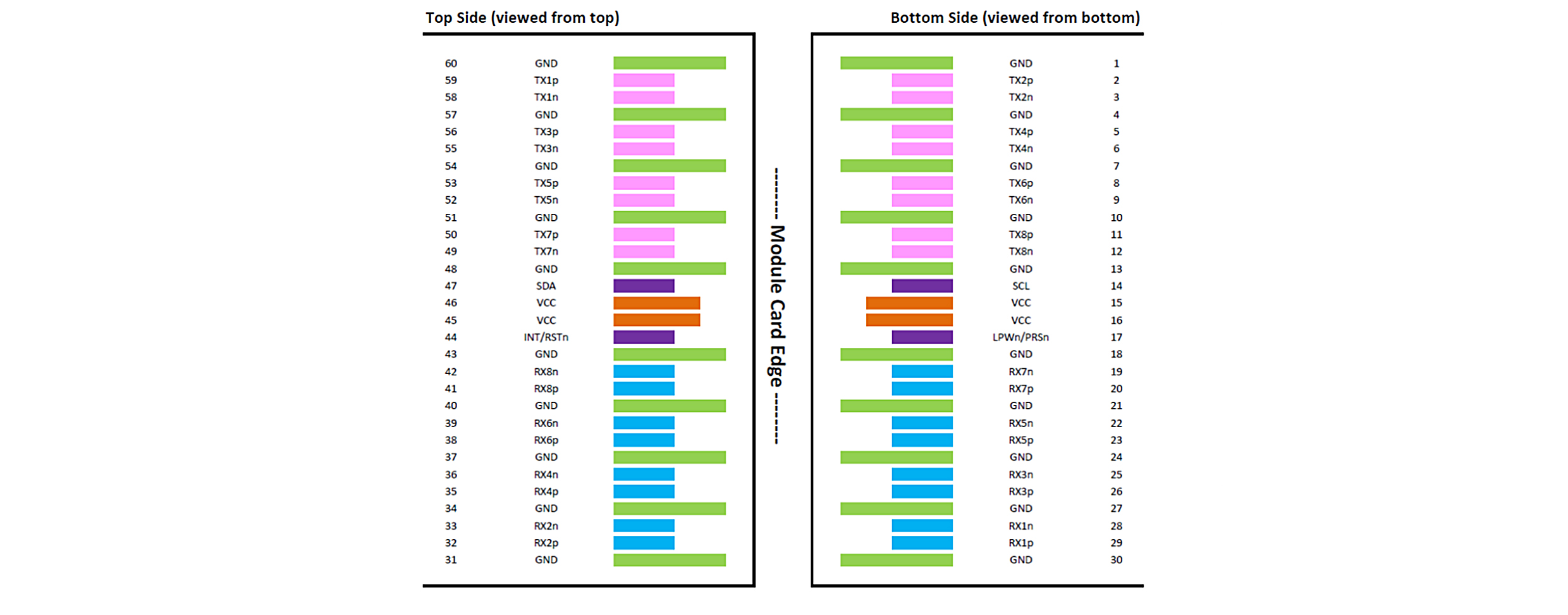

Pin | Symbol | Name/Description | |||||||
1 | GND | Ground | |||||||
2 | TX2p | Transmitter data non-inverted | |||||||
3 | TX2n | Transmitter dataInverted | |||||||
4 | GND | Ground | |||||||
5 | Tx4p | Transmitter data non-inverted | |||||||
6 | TX4n | Transmitter data inverted | |||||||
7 | GND | Ground | |||||||
8 | TX6p | Transmitter data non-inverted | |||||||
9 | TX6n | Transmitter data inverted | |||||||
10 | GND | Ground | |||||||
11 | TX8p | Transmitter data non-inverted | |||||||
12 | TX8n | Transmitter data inverted | |||||||
13 | GND | Ground | |||||||
14 | SCL | 2-wire serial interface clock | |||||||
15 | VCC | +3.3V power | |||||||
16 | VCC | +3.3V power | |||||||
17 | LPWn/PRSn | Low-power mode/module present | |||||||
18 | GND | Ground | |||||||
19 | RX7n | Receiver data inverted | |||||||
20 | RX7p | Receiver data non-inverted | |||||||
21 | GND | Ground | |||||||
22 | RX5n | Receiver data inverted | |||||||
23 | RX5p | Receiver data non-inverted | |||||||
24 | GND | Ground | |||||||
25 | RX3n | Receiver data inverted | |||||||
26 | RX3p | Receiver data non-inverted | |||||||
27 | GND | Ground | |||||||
28 | RX1n | Receiver data inverted | |||||||
29 | RX1p | Receiver data non-inverted | |||||||
30 | GND | Ground | |||||||
31 | GND | Ground | |||||||
32 | RX2p | Receiver data non-inverted | |||||||
33 | RX2n | Receiver data inverted | |||||||
34 | GND | Ground | |||||||
35 | RX4p | Receiver data non-inverted | |||||||
36 | RX4n | Receiver data inverted | |||||||
37 | GND | Ground | |||||||
38 | RX6p | Receiver data non-inverted | |||||||
39 | RX6n | Receiver data inverted | |||||||
40 | GND | Ground | |||||||
41 | RX8p | Receiver data non-inverted | |||||||
42 | RX8n | Receiver data inverted | |||||||
43 | GND | Ground | |||||||
44 | INT/RSTn | Module interrupt/module reset | |||||||
45 | VCC | +3.3V power | |||||||
46 | VCC | +3.3V power | |||||||
47 | SDA | 2-wire serial interface data | |||||||
48 | GND | Ground | |||||||
49 | TX7n | Transmitter data inverted | |||||||
50 | TX7p | Transmitter data non-inverted | |||||||
51 | GND | Ground | |||||||
52 | TX5n | Transmitter data inverted | |||||||
53 | TX5p | Transmitter data non-inverted | |||||||
54 | GND | Ground | |||||||
55 | TX3n | Transmitter data inverted | |||||||
56 | TX3p | Transmitter data non-inverted | |||||||
57 | GND | Ground | |||||||
58 | TX1n | Transmitter data inverted | |||||||
59 | TX1p | Transmitter data non-inverted | |||||||
60 | GND | Ground |
