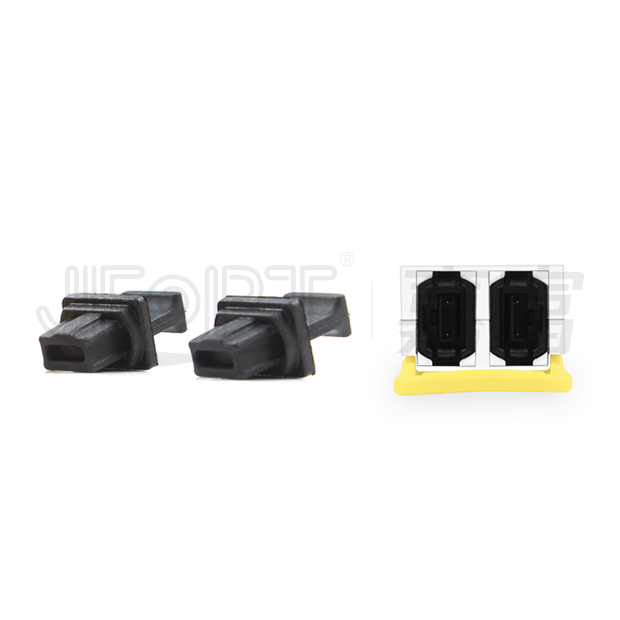

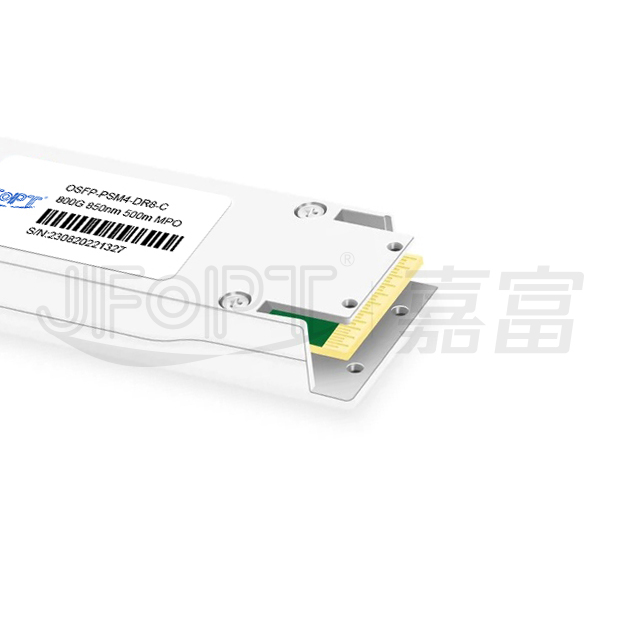

Product model
|
JFTSM-OSFP-800(1x100G)-PSM4-05-(DR8)-MPO16/2MPO8/12
|
Manufacturer brand
|
JFOPT
|
Package type
|
OSFP
|
Optical connector
|
Dual MTP-12 APC
|
Max data rate
|
800Gbps
|
Channel data rate
|
106.25 Gb/s
|
Effective transmission distance
|
500m
|
|
|
Wavelength
|
1310nm
|
Operating voltage
|
3.3V
|
Fiber type
|
SMF
|
Core size
|
9/125
|
Transmitter type
|
EML
|
Receiver type
|
PIN
|
TX power
|
-2.9~4.0dBm
|
Receiver sensitivity
|
-5.9dBm
|
Digital Optical Monitoring(DOM)
|
YES
|
Receiver overload
|
4dBm
|
Power consumption
|
<16.5W
|
Protocols
|
800G Ethernet
2x400G Ethernet
IB NDR
|
Operating temperature(Commercial)
|
0℃~+70℃
|
Storage temperature(Commercial)
|
-40℃~+85℃
|
JFOPT continues to invest in optical transceiver production, covering a full range of optical transceiver such as 1*9, SFP, 10G, 25G, 100G, 200G, 400G, 800G GPON/EPON/XG/XGSPON OLT transceiver. At the same time, our company provides TOSA, ROSA, BOSA semi-finished device solutions for the downstream peer. JFOPT's production line has a daily production capacity of 10,000 optical transceivers and 20,000 optical devices. In addition, JFOPT's optical transceiver have industry-leading high temperature resistance and anti-interference capability, and are widely used in computing centers, operators, traffic security, power facilities and other industries.

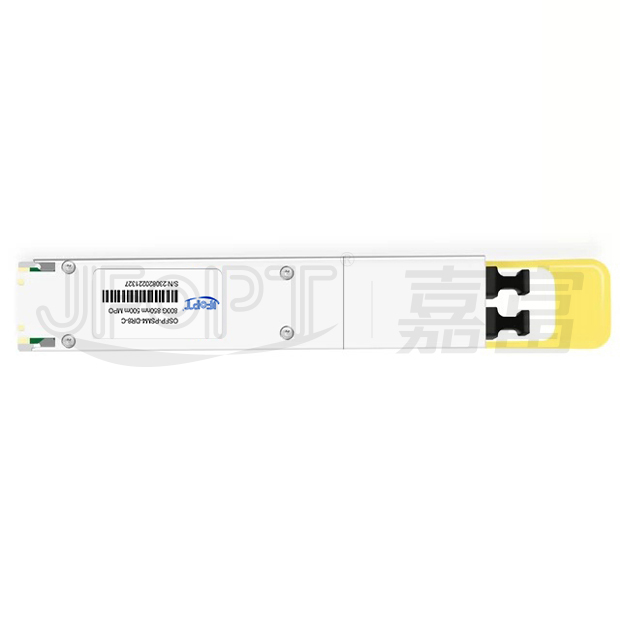

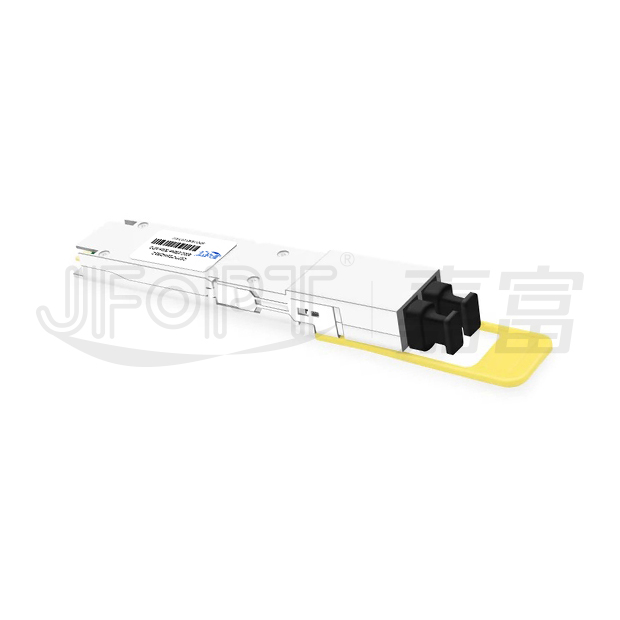

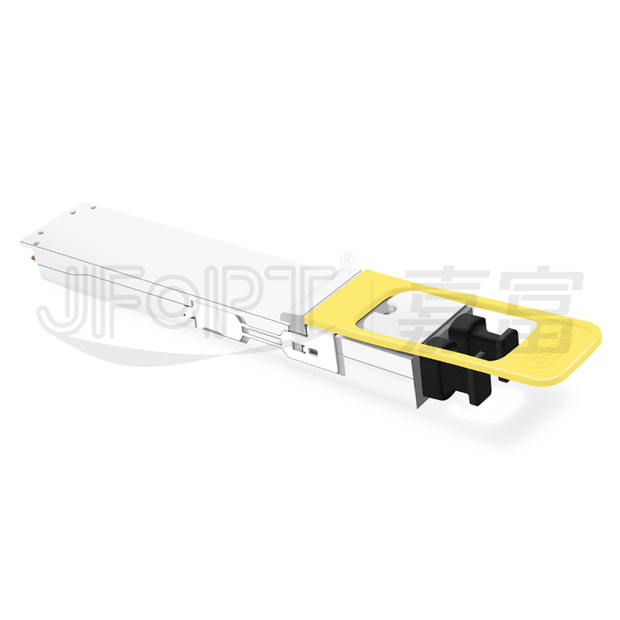

The JFOPT OSFP 800G PSM4 500m DR8 2MPO8/12 Transceiver is an advanced 8-channel, pluggable fiber-optic module designed for high-speed 800Gbps Ethernet applications. This high-performance transceiver is ideal for data communication and interconnect solutions, supporting data rates of up to 106.25Gbps per lane over single-mode fiber, with transmission distances of up to 500 meters. The optical interface utilizes Dual MPO-12 APC receptacles for efficient connectivity.Optimized for multi-mode fiber systems, the transceiver operates at a nominal wavelength of 850nm. Its electrical interface features a 60-contact edge-type connector, ensuring robust and reliable performance. Designed for efficiency and high-speed networking, this module is a cutting-edge solution for next-generation data communication requirements.
Hot-pluggable OSFP form factor | Silicon photonics integrated solution | ||||||||
Data rate 106.25Gb/s PAM4 per lane | 8x106Gbps PAM4 transmitter and PAM4 receiver | ||||||||
Maximum link length of500m on single mode fiber | Digital diagnostics functions are available via the I2C interface | ||||||||
Single 3.3V power supply and power dissipation<16.5W | Dual MTP-12 APC connector | ||||||||
Operating case temperature:0℃~+70℃ |
800G ethernet | 2x400G ethernet | |||||||
IB NDR |
Parameter | Symbol | Min. | Max. | Unit | |||||
Power supply voltage | VCC | -0.5 | +3.6 | V | |||||
Storage temperature | TC | -40 | +85 | ℃ | |||||
Relative humidity | RH | 5 | 85 | % |
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
Parameter | Symbol | Min | Typical | Max | Unit | ||||
Power supply voltage | VCC | 3.15 | 3.30 | 3.45 | V | ||||
Operating case temperature | Tca | 0 | - | 70 | ℃ |
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Data rate per lane | DR | - | 106.25 | - | Gbps | - | |||
Transmitter |
|||||||||
Common mode voltage tolerance | - | 15 | - | - | mV | - | |||
Input differential impedance | Rin | - | 100 | - | Ω | - | |||
Differential input voltage swing | Vin | 300 | - | 900 | mV | - | |||
Tx fault | VoL | -0.3 | - | 0.4 | V | At 0.7mA | |||
Receiver |
|||||||||
Differential output swing | Vout | 300 | - | 900 | mV | - | |||
Output differential impedance | Rout | - | 100 | - | Ω | - |
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Transmitter |
|||||||||
Center wavelength | λ | 1304.5 | 1310 | 1317.5 | nm | - | |||
Side-mode suppression ratio | SMSR | 30 | - | - | dB | - | |||
Average optical power | Po | -2.9 | - | 4 | dBm | 1 | |||
Extinction ratio | ER | 3.5 | - | - | dBm | - | |||
Outer optical modulation amplitude (OMAouter),each lane | OMA | -0.8 | - | 4.2 | dB | - | |||
Transmitter and dispersion eye closure | TDECQ | - | - | 3.4 | dB | - | |||
Optical return loss tolerance | ORL | - | - | 21.4 | dB | - | |||
Receiver |
|||||||||
Center wavelength | λ | 1304.5 | 1310 | 1317.5 | nm | ![]() |
|||
Average receive power,each lane | - | -5.9 | - | 4 | dBm | - | |||
Receive power(OMAouter),each lane | - | - | - | 4.2 | dBm | - | |||
Note: [1]Theoptical power is launched into SMF. [2]BER=2.4E-4;PRBS31Q@106.25GBd. |
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

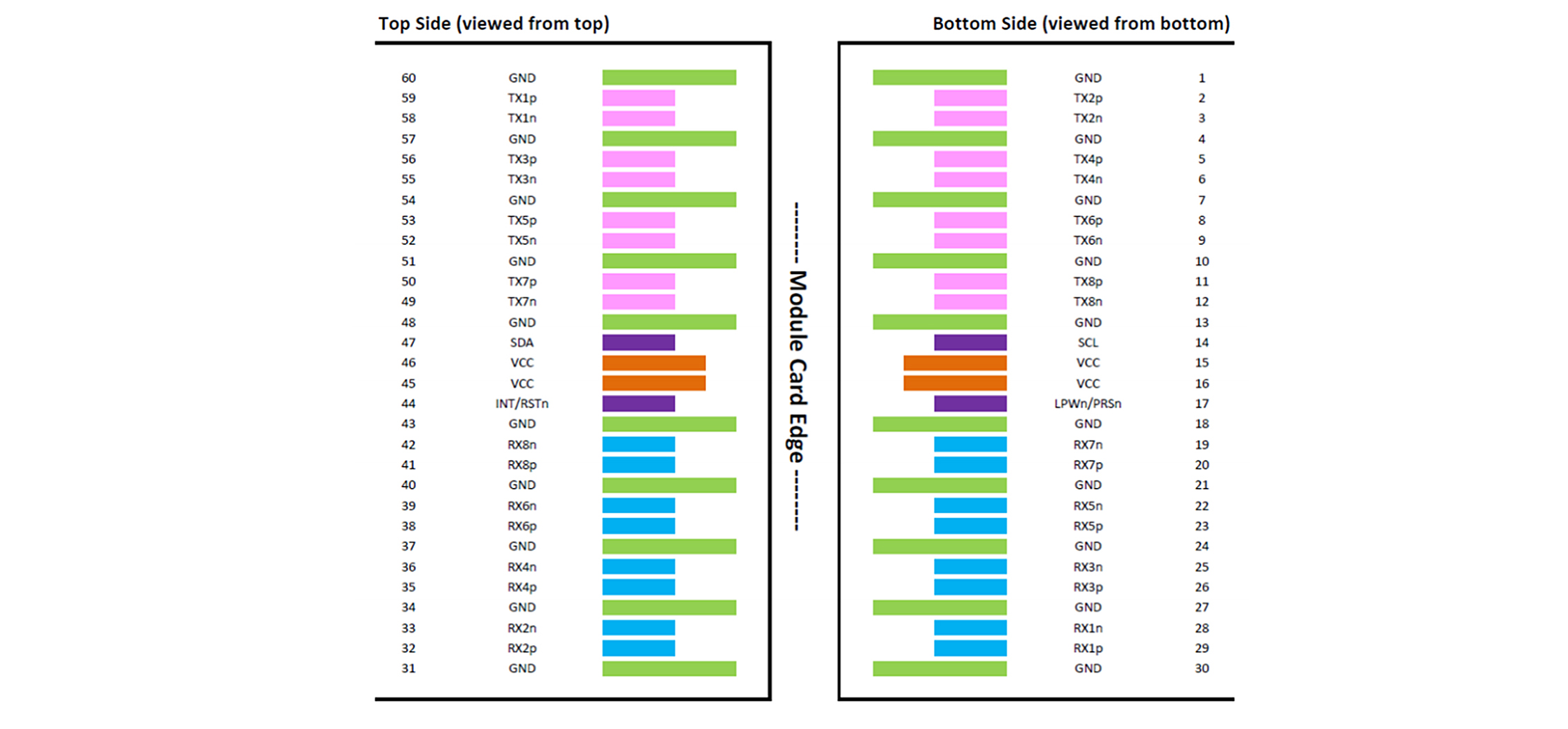

Pin | Symbol | Name/Description | |||||||
1 | GND | Ground | |||||||
2 | TX2p | Transmitter data non-inverted | |||||||
3 | TX2n | Transmitter data inverted | |||||||
4 | GND | Ground | |||||||
5 | Tx4p | Transmitter data non-inverted | |||||||
6 | TX4n | Transmitter data inverted | |||||||
7 | GND | Ground | |||||||
8 | TX6p | Transmitter data non-inverted | |||||||
9 | TX6n | Transmitter data inverted | |||||||
10 | GND | Ground | |||||||
11 | TX8p | Transmitter data non-inverted | |||||||
12 | TX8n | Transmitter data inverted | |||||||
13 | GND | Ground | |||||||
14 | SCL | 2-wire Serial interface clock | |||||||
15 | VCC | +3.3V Power | |||||||
16 | VCC | +3.3V Power | |||||||
17 | LPWn/PRSn | Low-power mode/module present | |||||||
18 | GND | Ground | |||||||
19 | RX7n | Receiver data inverted | |||||||
20 | RX7p | Receiver data non-inverted | |||||||
21 | GND | Ground | |||||||
22 | RX5n | Receiver data inverted | |||||||
23 | RX5p | Receiver data non-inverted | |||||||
24 | GND | Ground | |||||||
25 | RX3n | Receiver data inverted | |||||||
26 | RX3p | Receiver data non-inverted | |||||||
27 | GND | Ground | |||||||
28 | RX1n | Receiver data inverted | |||||||
29 | RX1p | Receiver data non-inverted | |||||||
30 | GND | Ground | |||||||
31 | GND | Ground | |||||||
32 | RX2p | Receiver data non-inverted | |||||||
33 | RX2n | Receiver data inverted | |||||||
34 | GND | Ground | |||||||
35 | RX4p | Receiver data non-inverted | |||||||
36 | RX4n | Receiver data inverted | |||||||
37 | GND | Ground | |||||||
38 | RX6p | Receiver data non-inverted | |||||||
39 | RX6n | Receiver data inverted | |||||||
40 | GND | Ground | |||||||
41 | RX8p | Receiver data non-inverted | |||||||
42 | RX8n | Receiver data inverted | |||||||
43 | GND | Ground | |||||||
44 | INT/RSTn | Module interrupt/module reset | |||||||
45 | VCC | +3.3V power | |||||||
46 | VCC | +3.3V power | |||||||
47 | SDA | 2-wire serial interface data | |||||||
48 | GND | Ground | |||||||
49 | TX7n | Transmitter data inverted | |||||||
50 | TX7p | Transmitter data non-inverted | |||||||
51 | GND | Ground | |||||||
52 | TX5n | Transmitter data inverted | |||||||
53 | TX5p | Transmitter data non-inverted | |||||||
54 | GND | Ground | |||||||
55 | TX3n | Transmitter dataInverted | |||||||
56 | TX3p | Transmitter data non-inverted | |||||||
57 | GND | Ground | |||||||
58 | TX1n | Transmitter data inverted | |||||||
59 | TX1p | Transmitter data non-inverted | |||||||
60 | GND | Ground |
