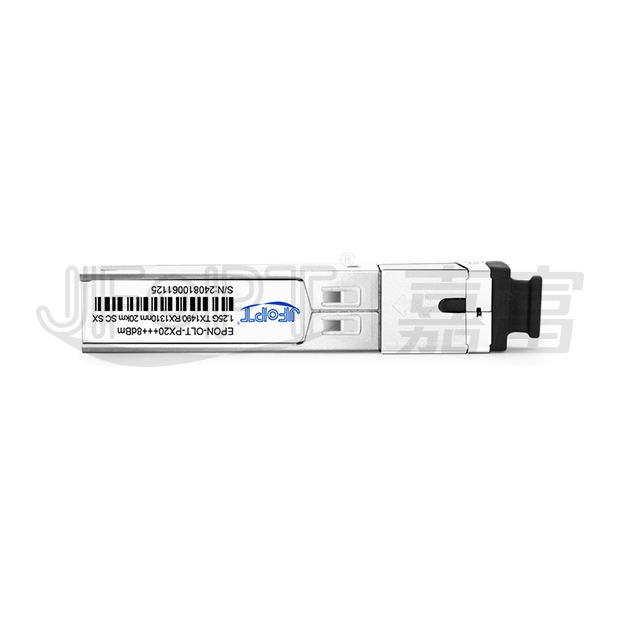

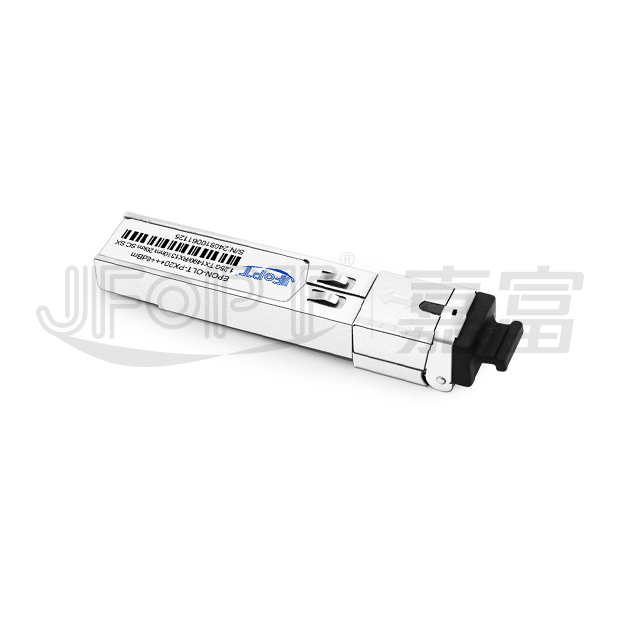

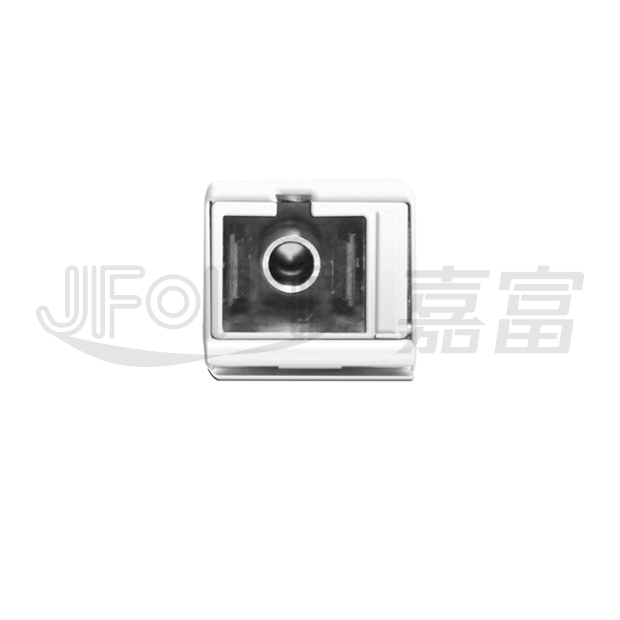

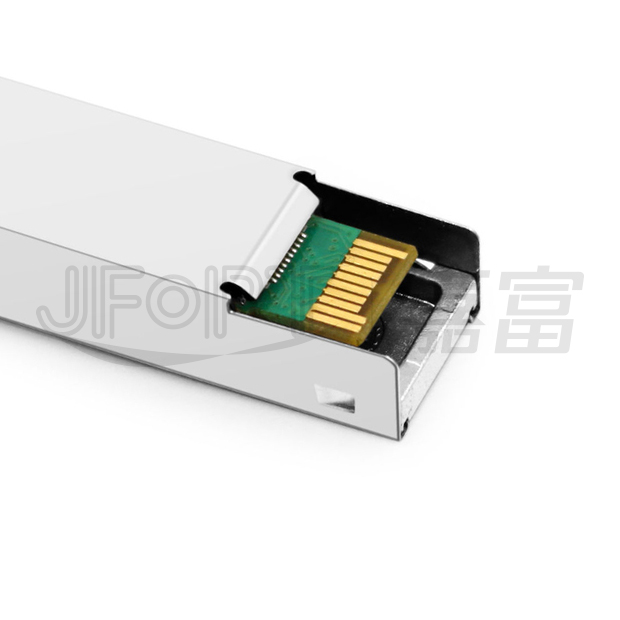

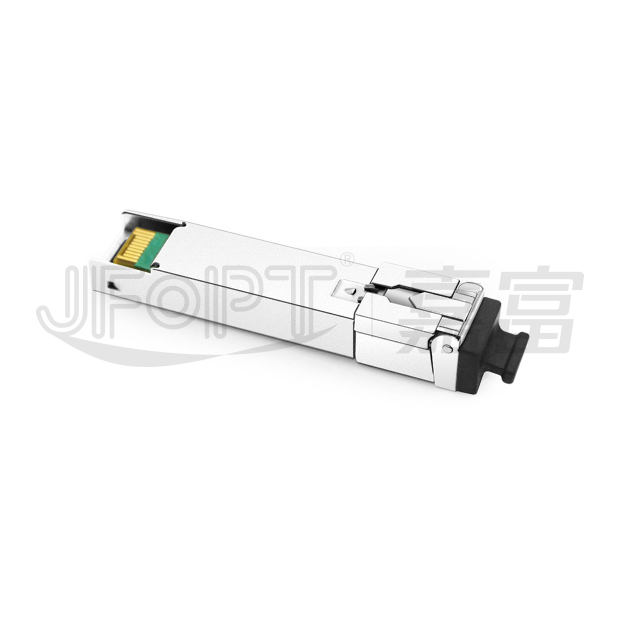

JFOPT EPON OLT PX20+++ 8dBm SFP Transceiver - Premium 1.25G SC OLT Module, 20km SMF

Product model	JFTSM-SFP-EPON-PX20+++8dBm-1.25-1413-20-SCS	Manufacturer brand	JFOPT
Package type	SFP	Interface type	SC
Max data rate	1.25Gbps	Channel data rate
Effective transmission distance	20km
Wavelength	1490/1310nm	Operating voltage	3.3V
Fiber type	SMF	Core size	9/125
Transmitter type		Receiver type
TX power		Receiver sensitivity
Digital optical monitoring(DOM)	YES	Receiver overload
Power consumption
Operating temperature(Commercial)		Storage temperature(Commercial)
Operating temperature(Industrial)		Storage temperature(Industrial)
Operating temperature(Extended)		Storage Temperature(Industrial)

PRODUCTION LINE INTRODUCTION

JFOPT continues to invest in optical transceiver production, covering a full range of optical transceiver such as 1*9, SFP, 10G, 25G, 100G, 200G, 400G, 800G GPON/EPON/XG/XGSPON OLT transceiver. At the same time, our company provides TOSA, ROSA, BOSA semi-finished device solutions for the downstream peer. JFOPT's production line has a daily production capacity of 10,000 optical transceivers and 20,000 optical devices. In addition, JFOPT's optical transceiver have industry-leading high temperature resistance and anti-interference capability, and are widely used in computing centers, operators, traffic security, power facilities and other industries.

PRODUCT PRESENTATION

The JFOPT EPON OLT PX20+++ 8dBm Transceiver is a premium-grade 1.25G SFP module engineered for Optical Line Terminal (OLT) deployments, delivering 1490nm downstream transmission and 1310nm upstream reception over single-mode fiber (SMF) with a 20km reach. Featuring an SC connector interface and compliant with the highest-performance PX20+++ class offering an 8dBm optical budget, it incorporates 100 Ohm differential impedance for both transmitter inputs and receiver outputs. The module utilizes internal AC coupling on data lines, provides optimized differential termination, and significantly reduces differential-to-common mode conversion to ensure exceptional signal integrity, reliable termination quality, and minimized electromagnetic interference (EMI).

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

1.25Gb/s serial optical interface compliant to 802.3AH specifications small form factor pluggable module “SFP”					1490 nm DFB transmitter, 1310 nm APD photodetector BURST receiver
All-metal housing for superior EMI performance					Operating case temperature: 0 to 70 °C or-40 to 85 °C
Low power consumption					Cost effective OLT solution

APPLICATION

GEPON networks

FTTX

STANDARD COMPLIANCE

ORDER INFORMATION

Part No.	Data Rate	Tx Power	Connector Type	Fiber Type	Distance	Temp.	DDMI
JFTSM-SFP-EPON-PX20+++8dBm-1.25-1413-20-SCS	1.25GBPs	7~9dBm	SC	Single Fiber	20km	0~+70°C	YES

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min.	Max.	Unit
Power Supply Voltage	VCC	0	3.6	V
Storage Temperature	Tc	-40	85	℃
Operating Case Temperature	Tc	0	70	℃
	TI	-40	85
Relative Humidity	RH	5	95	%
RX Input Average Power	Pmax	-	-7	dBm
These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute maximum ratings can cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.

RECOMMENDED OPERATING ENVIRONMENT

Parameter	Symbol	Min.	Typical	Max.	Unit
Power Supply Voltage	VCC	3.135	3.3	3.465	V
Power Supply Current	Icc	-	-	350	mA
Operating Case Temperature	TC	0	25	70	℃
	TI	-40	25	85
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.

OPTICAL CHARACTERISTICS

Parameters	Unit	Values
Operating Reach	m	2 - 20K
Transmitter
Center Wavelength	nm	1490
Side Mode Suppression Ratio (min)	dB	30
Launched power
– maximum (Average)	dBm	11
– typical (Average)	dBm	8
– minimum (Average)	dBm	7
Average Launch Power of OFF Transmitter (max)	dBm	-30
Extinction Ratio (min)	dB	9
Optical Return Loss Tolerance (min)	dB	12
Receiver
Center Wavelength (range)	nm	1310
Receive Overload (max) in Average Power(note 1)	dBm	-8
Receive Sensitivity (min) in A Power(note 1)	dBm	-30
Receiver Reflectance (max)	dB	-12
Los Assert(min)	dBm	-33
Los Dessert(max)	dBm	-30
Los Hysteresis(min)	dB	0.5
Receiver power (damage, Max)	dBm	-7
Notes: 1. Average optical power shall be measured using the methods specified in TIA/EIA-455-95. 2. Power budget is defined as the different between the Rx sensitivity andthe Tx output power of the interface.

ELECTRICAL CHARACTERISTICS

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Data Rate	-	-	1.25	-	Gbps	-
Power Consumption	-	-	800	1000	mW	-
Transmitter
Single Ended Output Voltage Tolerance	-	-0.3	-	4	V	-
Common Mode Voltage Tolerance	-	15	-	-	mV	-
Tx Input Diff Voltage	VI	180	-	1200	mV	-
Tx Fault	VoL	-0.3	-	0.4	V	At 0.7mA
Data Dependent Input Jitter	DDJ	-	-	0.1	UI	-
Data Input Total Jitter	TJ	-	-	0.28	UI	-
Receiver
Single Ended Output Voltage Tolerance	-	-0.3	-	4	V	-
Rx Output Diff Voltage	Vo	400	‐	2400	mV	LOS Assert Time LOS De‐assert Time
LOS Assert Time	TAssert	‐	‐	500	ns
LOS De‐assert Time	TDeassert	‐	‐	500	ns
Receiver Threshold Settling Time	TSETTLING	‐	‐	250	ns

DITITAL DIAGNOSTIC FUNCTIONS

Parameter	Symbol	Min.	Max	Unit	Notes
Temperature Monitor Absolute Error	DMI_Temp	-3	3	degC	Over Operating Temp
Laser Power Monitor Absolute Error	DMI_TX	-3	3	dB	-
Supply Voltage Monitor Absolute Error	DMI_VCC	-0.08	0.08	V	Full Operating Range
Bias Current Monitor	DMI_Ibias	-10%	10%	mA	-

OLT SFP MODULE PIN DEFINITION

PIN	Logic	Symbol	Name / Description	Note
1	-	VeeT	Module Transmitter Ground	1
2	LVTTL-O	TX_Fault	Module Transmitter Fault	-
3	LVTTL-I	TX_Dis	Transmitter Disable; Turns off Transmitter Laser Output	-
4	LVTTL-I/O	SDA	2-Wire Serial Interface Data Line	2
5	LVTTL-I	SCL	2-Wire Serial Interface Clock	2
6	-	MOD_DEF0	Module Definition, Grounded in the Module	-
7	-	NC	Not Connect	-
8	LVTTL-O	RX_LOS	Receiver Loss of Signal Indication Active LOW	-
9	-	VeeR	Module Receiver Ground	-
10	-	VeeR	Module Receiver Ground	1
11	-	VeeR	Module Receiver Ground	1
12	LVPECL-O	RD-	Receiver Inverted Data Output	-
13	LVPECL-O	RD+	Receiver Data Output	-
14	-	VeeR	Module Receiver Ground	1
15	-	VccR	Module Receiver 3.3 V Supply	-
16	-	VccT	Module Receiver 3.3 V Supply	-
17	-	VeeT	Module Transmitter Ground	1
18	CML-I	TD+	Transmitter Non-Inverted Data Input	-
19	CML-I	TD-	Transmitter Inverted Data Input	-
20	-	VeeT	Module Transmitter Ground	1
Note: 1. Module ground pins GND are isolated from the module case. 2. Shall be pulled up with 4.7K-10Kohms to a voltage between 3.15V and 3.45V on the host board.
