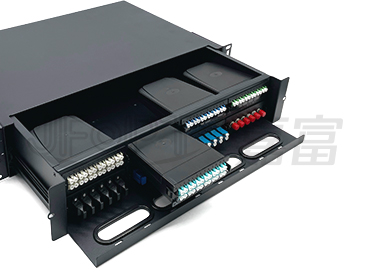

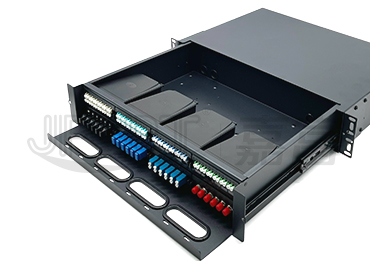

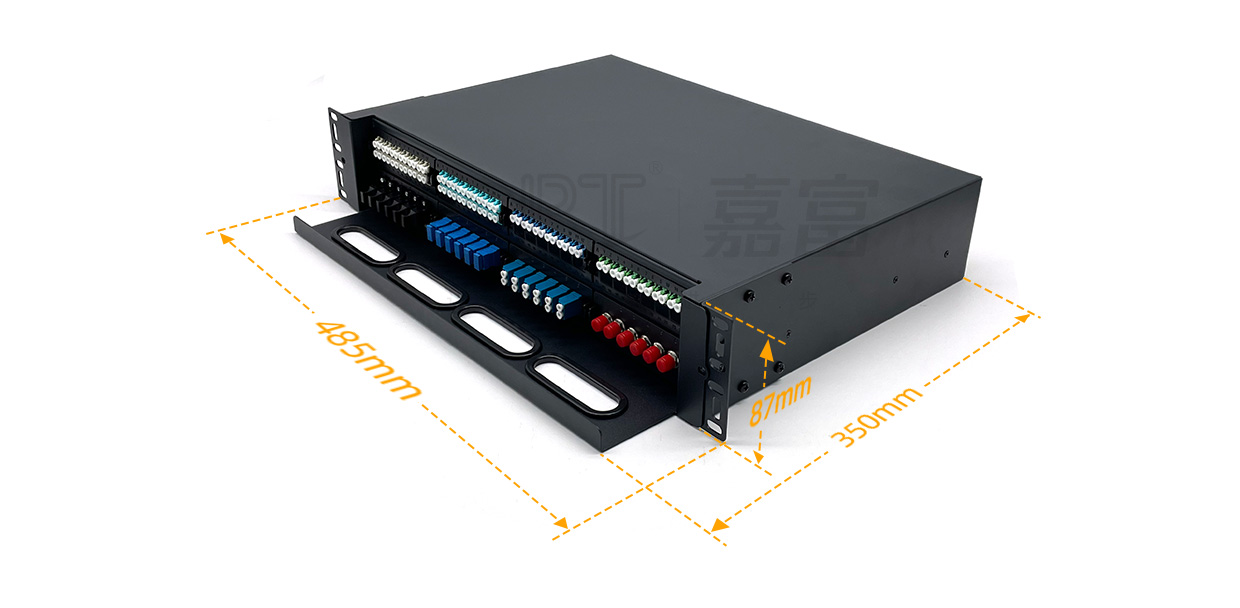

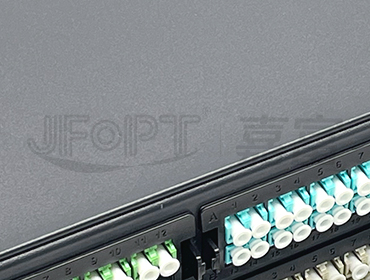

2U MPO/MTP Plastic Cassettes Patch Panel Max 192F

12-fiber cassette and 24-fiber cassette for option / Max capacity 192

Model:JFOPP-RMP/MPO20-B-004F

Purchase consultation

Product Specification

Data Sheets

DESCRIPTION

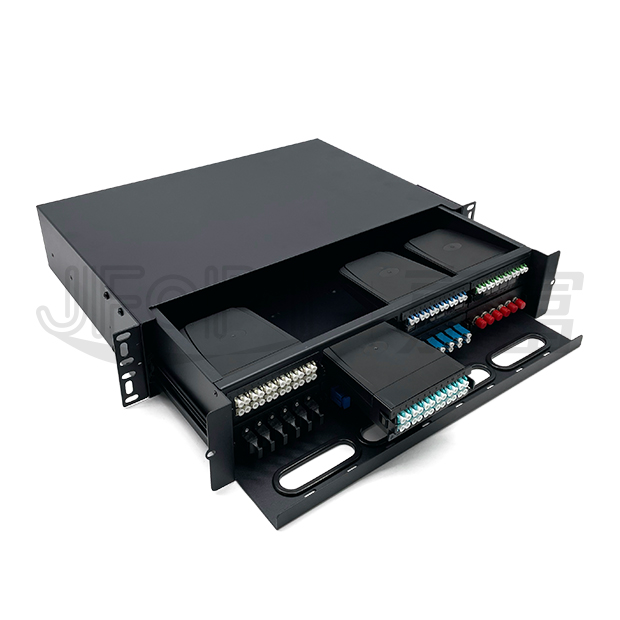

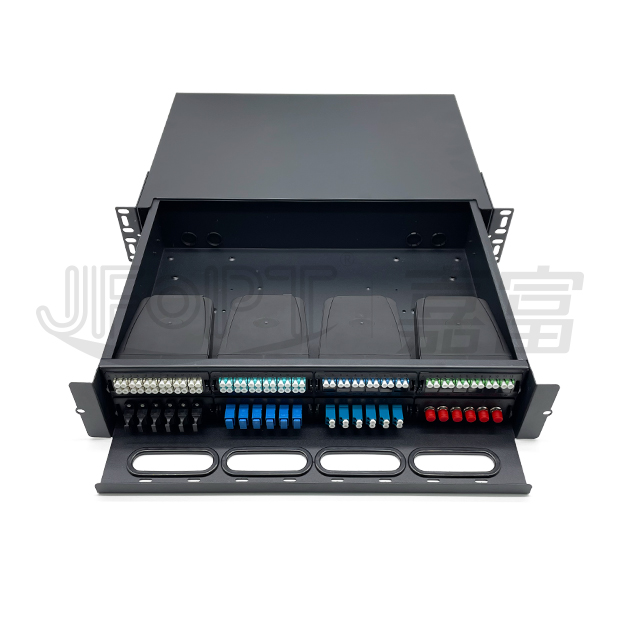

JFOPP-RMP/MPO20-B-004F Sliding MPO/MTP HD enclosure adopts modular design and is sliding rail drawer design for easy construction and operation. The enclosure is equipped with a front cable tray, which is fully equipped with a maximum of 192 cores, and can be configured with 12 cores or 24 cores Cassettes.It is mainly used in high-density fiber cabling systems, fast cabling systems, backbone networks, highly integrated devices and devices, data centers, SAN systems, etc.

FEATURES

Sliding design

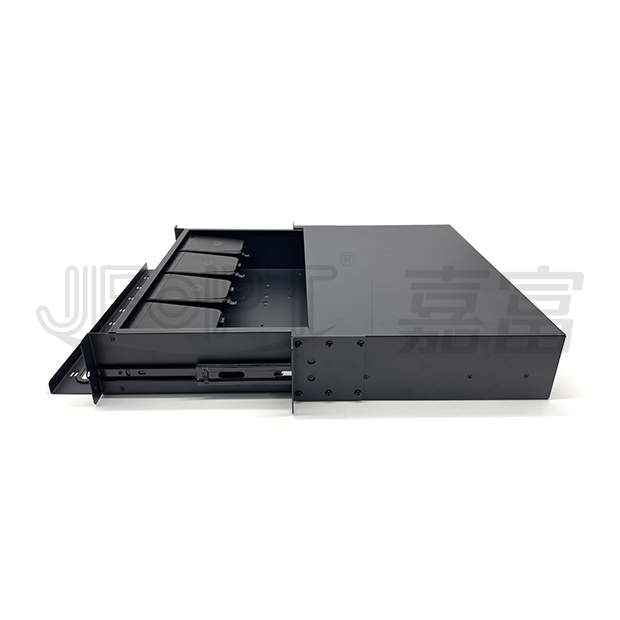

The Enclosure adopts high-quality guide rail, and the tray can be completely extracted from the chassis, which is convenient for jumper docking and optical cable storage operation.

Cassettes installation

Flexible configuration by using removable modular design, optional adapter panel or MPO cassette module to realize different configuration requirements of ports and meet various wiring schemes.

Optical cable introduction

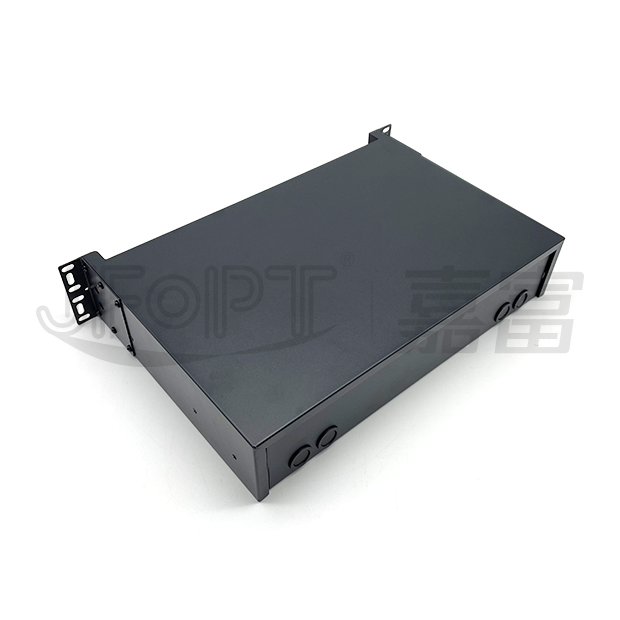

The rear of the chassis is equipped with a plurality of cable inlet, and the chassis is equipped with a plurality of optical cable winding and fixing points.

High quality

Made of high quality cold rolled steel sheet, compressive and impact resistant. Electrostatic spraying, uniform, wear-resistant and anti-corrosion, beautiful appearance.

STANDARDS COMPLIANCE
