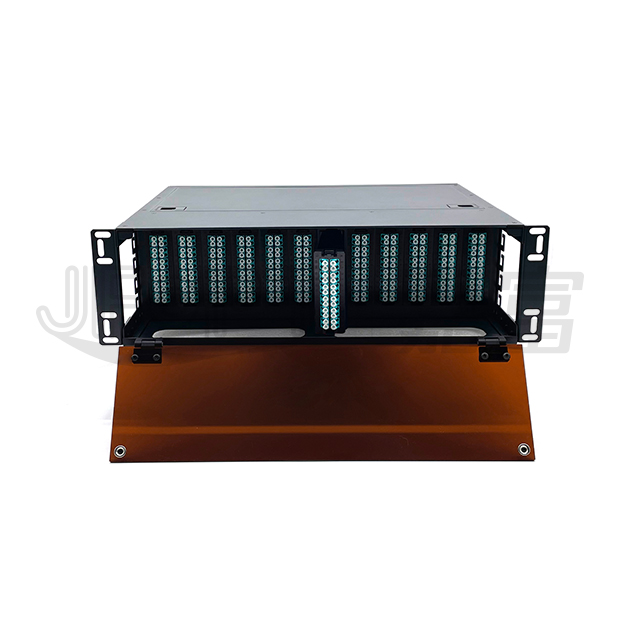

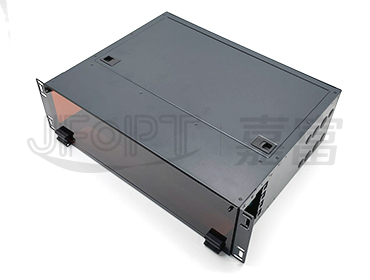

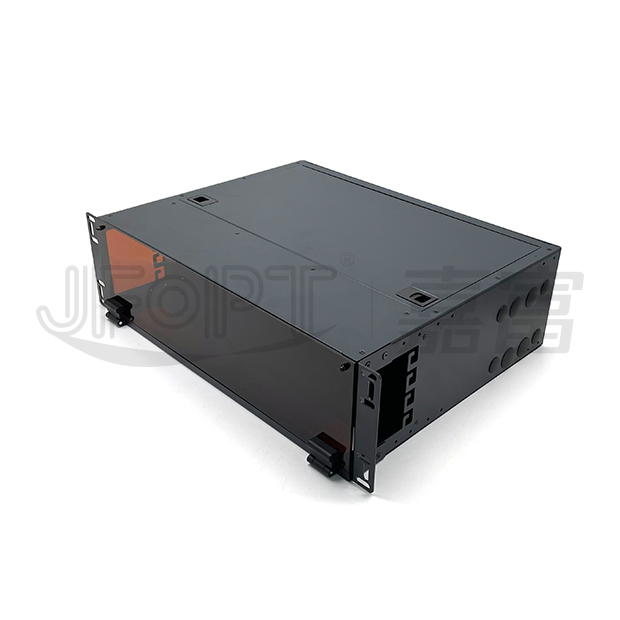

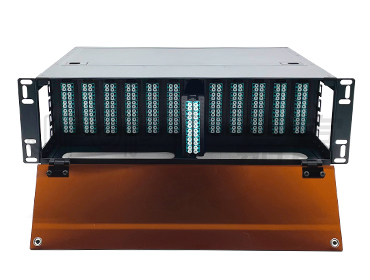

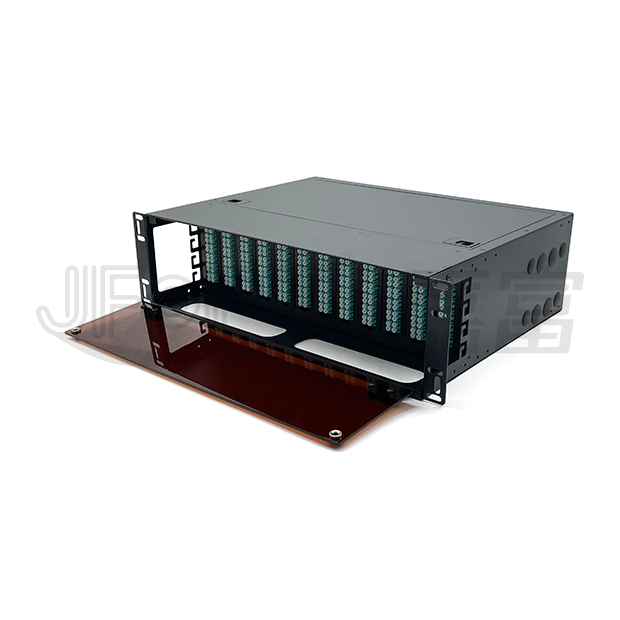

3U MPO/MTP Plastic Cassettes Patch Panel Max 288F

12-fiber cassette and 24-fiber cassette for option / Max capacity 288

Model:JFOPP-RMP/MPO30-A-007F

Purchase consultation

Product Specification

Data Sheets

DESCRIPTION

JFOPP-RMP/MPO30-A-007F Fixed MPO/MTP HD enclosure adopts modular design and is equipped with quick-opening upper cover for easy construction and operation and operation and can hold up to 288 fibers in 3U space. It is mainly used in high-density fiber cabling systems, fast cabling systems, backbone networks, highly integrated devices and devices, data centers, SAN systems, etc.

FEATURES

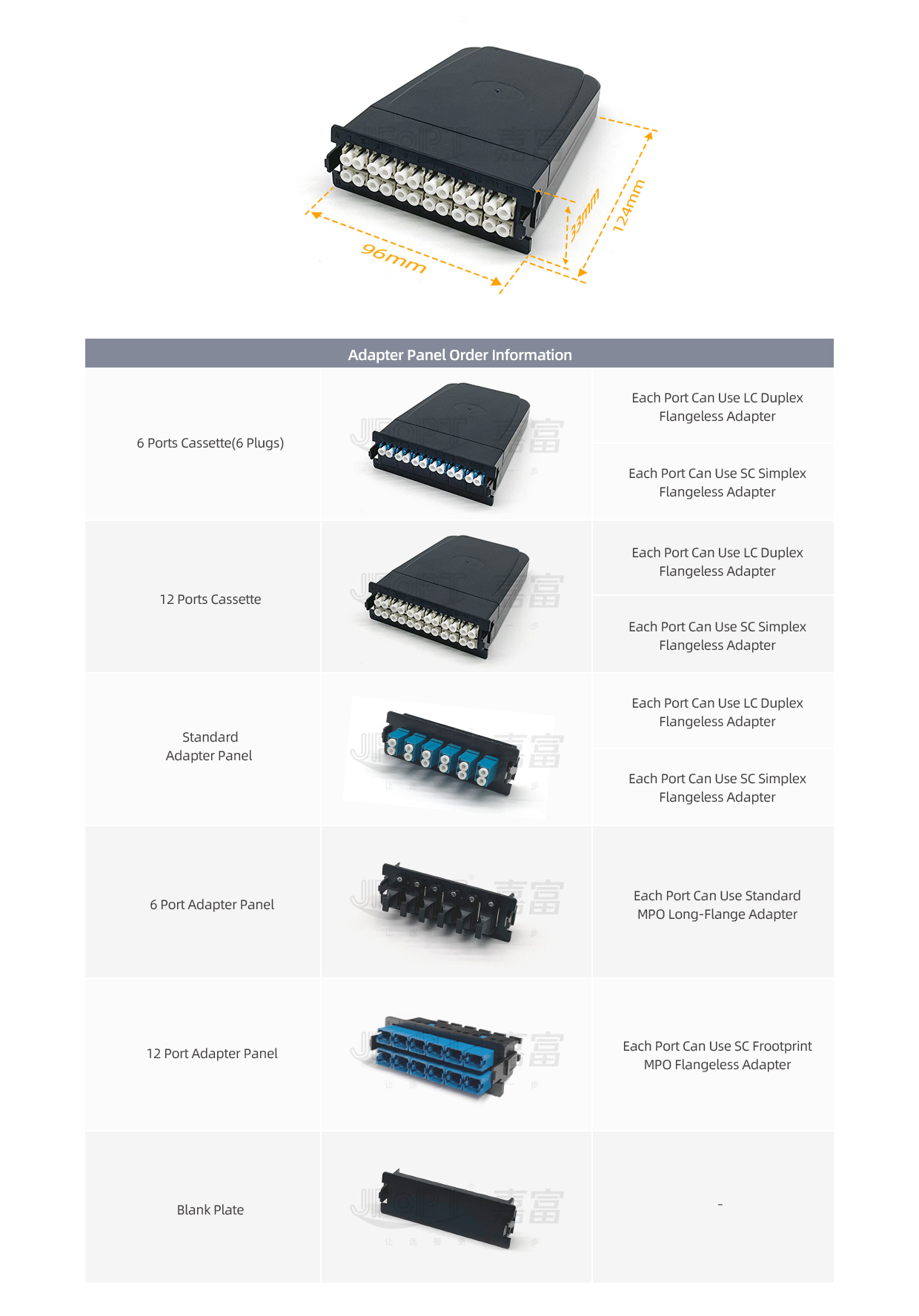

Cassettes installation

Modular MPO cassettes design can achieve rapid replacement and wiring, and reach max capacity 288 fibers in 12 MPO cassette module.

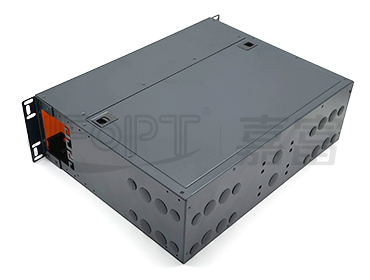

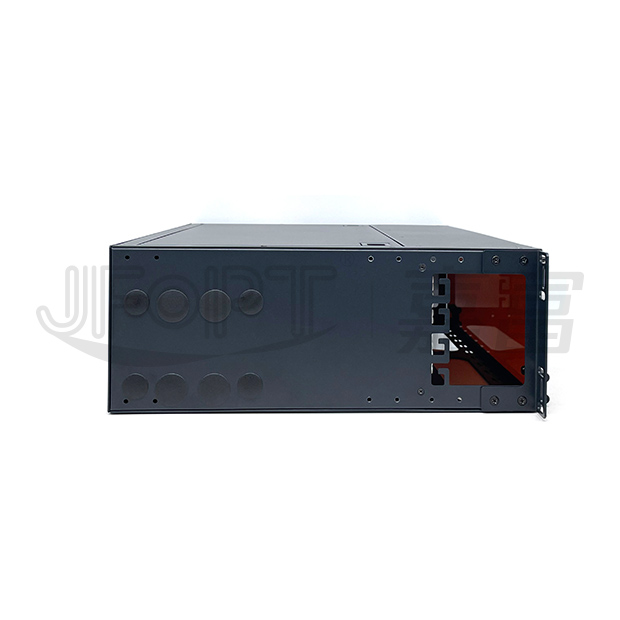

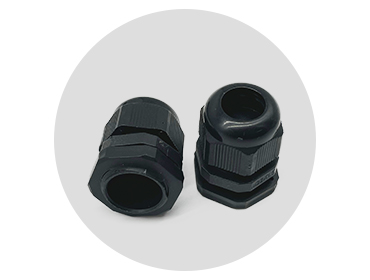

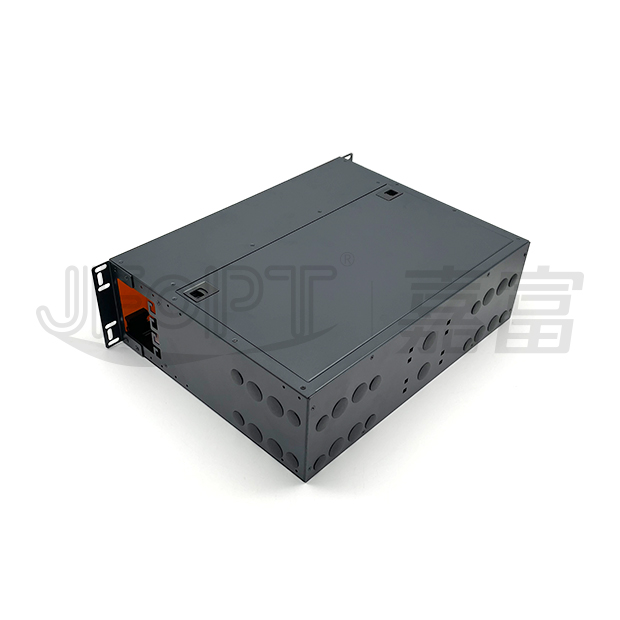

Cable entry

There are ten 25mm and eight 20mm cable inlets at the rear of the patch panel,two 25mm and two 20mm cable inlets at both lateral sides, waterproof cable gland can be removed as needed.

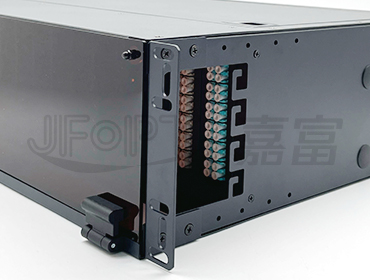

Adjustable mounting ears

The mounting holes of the chassis mounting ears are adjustable to meet the actual wiring requirements of the user.

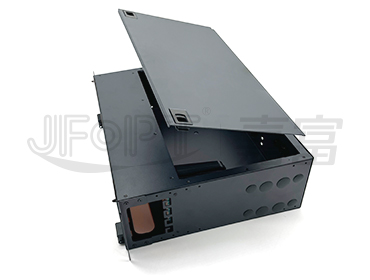

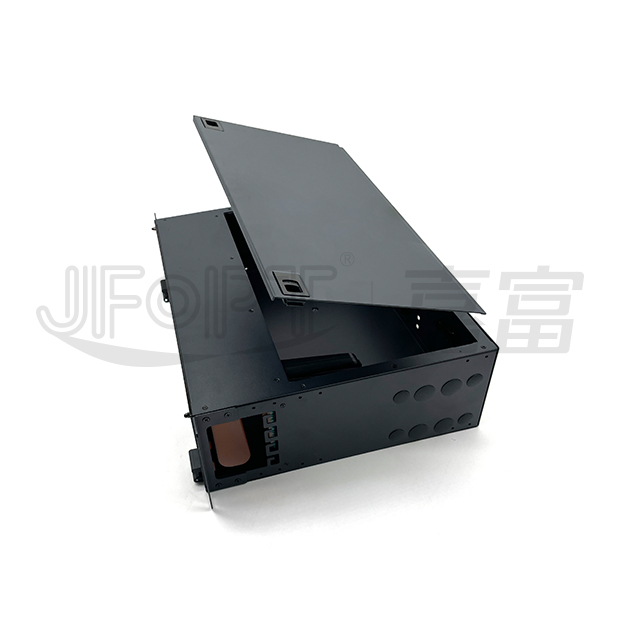

Easy to open the upper cover design

The upper cover of the wiring box adopts the door latch locking mode, and the upper cover can be opened without using tools.

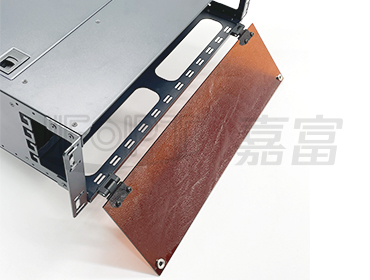

Door design

The flip-down door design effectively protects the front cabling, preventing interference or damage.

High quality

Made of high quality cold rolled steel sheet, compressive and impact resistant. Electrostatic spraying, uniform, wear-resistant and anti-corrosion, beautiful appearance.

STANDARDS COMPLIANCE
