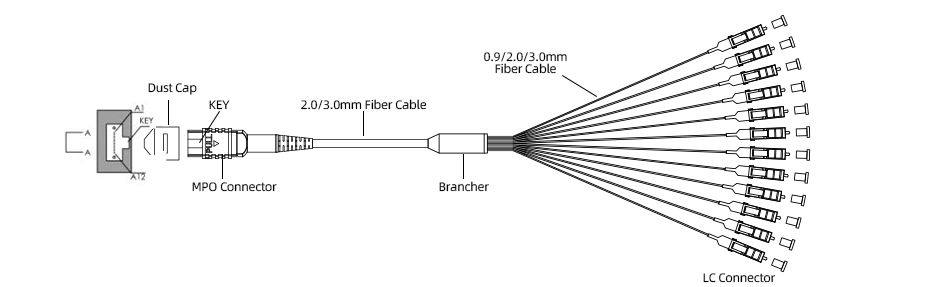

In high-density integrated fiber optic environments such as data center facilities, MPO branch fiber patch cables fully leverage the advantages of high-density multi-core optical cables and MPO/MTP connectors. Through an intermediary branching structure, connections from MPO to common connectors like LC, SC, FC, ST, and MTRJ are achieved. This flexible and efficient design is widely applied to various connection requirements, providing an ideal solution for complex network wiring.

Some common types of fiber patch cables include MPO-8LC, MPO-12LC, and MPO-24LC. Fiber cables with outer diameters of 0.9mm, 2.0mm, and 3.0mm are applied according to different environments.

By connecting high-speed ports (MPO) with low-speed ports (LC), the conversion between 40G/100G and 10G/25G is achieved on one end.

Features of MPO-LC branch patch cables

High-density wiring, saving space

Occupying less cabinet space, it efficiently manages vertical management compared to traditional patch cables.

Convenient wiring, saving time

100% factory pre-terminated and tested to ensure transmission performance, it can be quickly configured and networked, reducing on-site installation time.

Multiple specifications to choose from

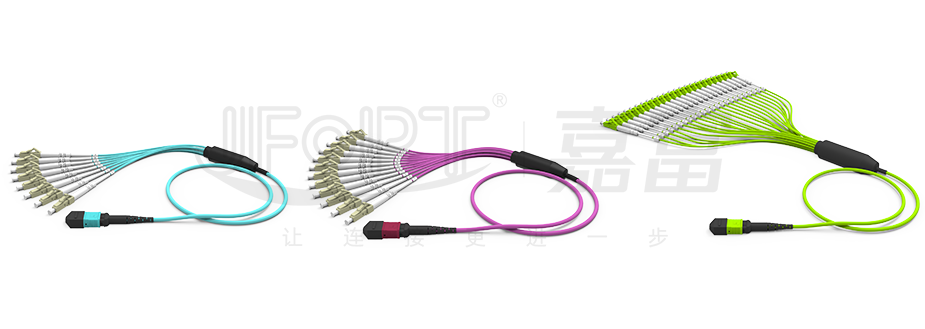

Available in different connector types such as MPO-LC, MPO-SC, MPO-FC, and different transmission modes such as single mode (OS2) and multi-mode (OM3, OM4, OM5), as well as different core counts such as 8-core, 12-core, 16-core, and 24-core.

Convenient for relocation or changes

Reducing the inconvenience caused by crowded fiber cables in LAN and storage network centers, increasing airflow circulation, making it easier to move or change cables.

Specific applications of MPO-LC branch patch cables

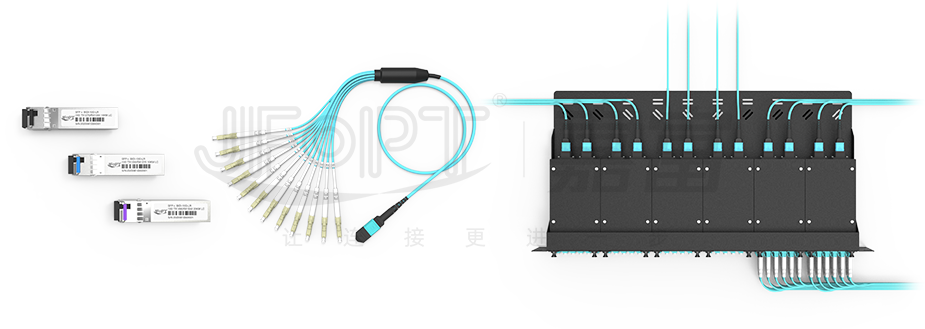

10G Link Connection:

Using MPO-LC branch fiber patch cables to connect 10G SFP+ optical modules, with MPO adapter panels (placed in high-density patch panels for easy management).

40G to 10G Link Connection:

Using MPO-4DLC branch fiber patch cables to connect 40G QSFP+ optical modules with 10G SFP+ optical modules.

100G to 10G Link Connection:

Using MPO-LC branch fiber patch cables to connect 100G QSFP28 optical modules with 10G SFP+ optical modules, with MPO-LC pre-terminated module boxes (placed in high-density patch panels for easy management).

The Technical Specifications of MPO Branch Patch Cables

MPO Connector
Insertion Loss (dB)	Standard Single-mode Loss	Low Insertion Loss for Single-mode	Standard Multimode Loss	Low Insertion Loss for Multimode
	≤0.6	≤0.35	≤0.6	≤0.30
Return Loss (dB)	≥60		≥20
Durability (dB)	≤0.2 500 mating cycles
Operating Temperature (℃)	-20 ~ +70
Testing Wavelength (nm)	1310		850
LC/SC/FC/ST Standard Connectors
Fiber Type	Single-mode		Multimode
Connector Type	UPC	APC	PC
Insertion Loss (dB)	≤0.3(maximum value) ≤0.2(typical value)
Return Loss (dB)	≤50	≥60	≥30
Durability (dB)	≤0.2 1000 mating cycles
Operating Temperature (℃)	-20 ~ +70
Testing Wavelength (nm)	1310		850
