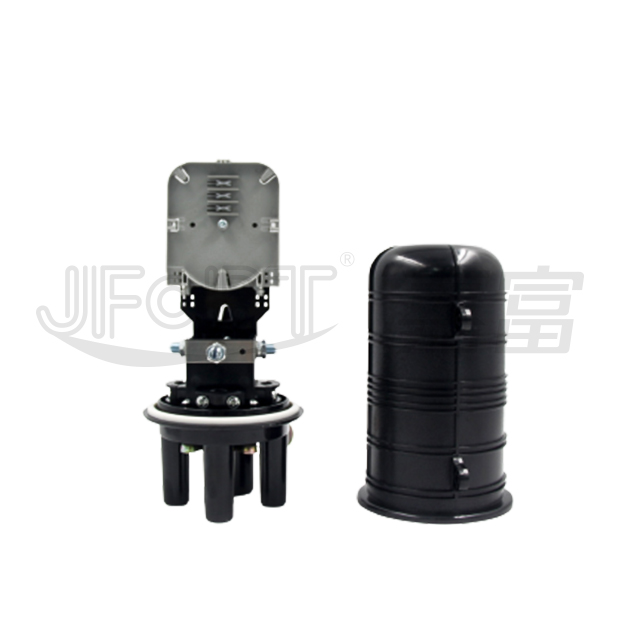

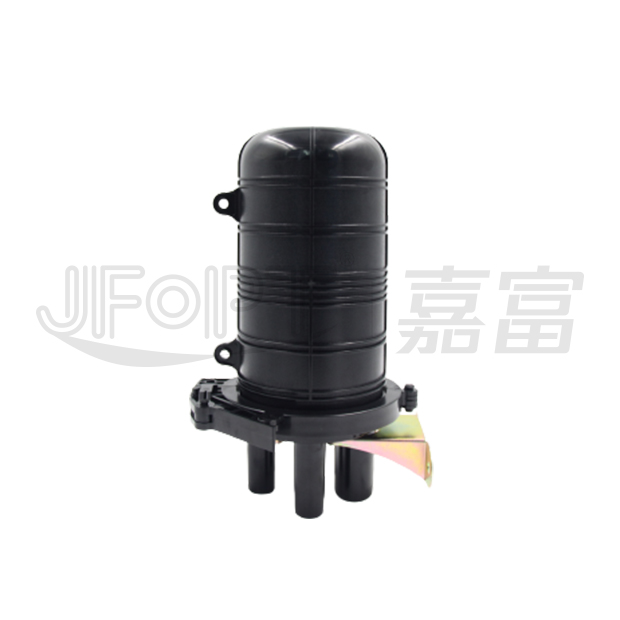

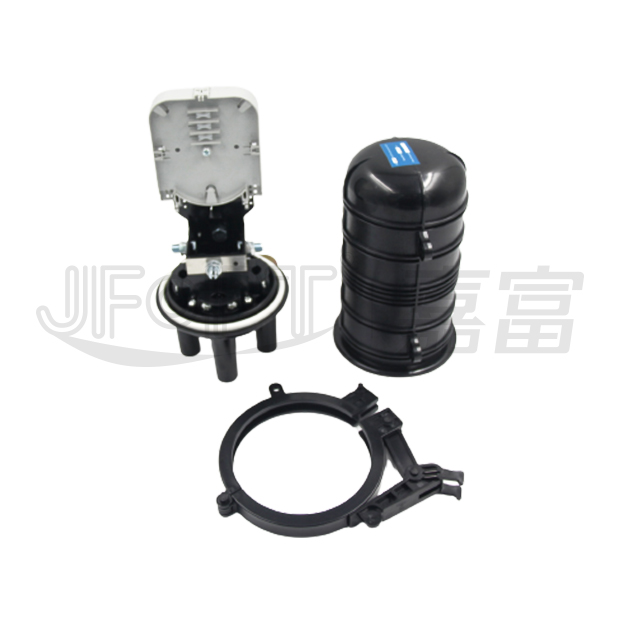

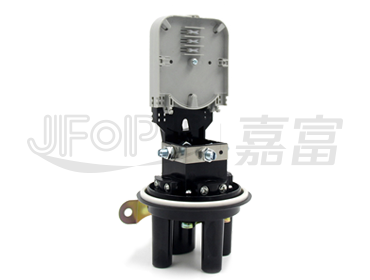

Dome Type Heat Shrinkable Sealing Fiber Optical Splice Closure (DH1-A)
High capacity/IP68 / Fiber fusion / Fiber storage / Long service life
Model:JFOSC-DH1-A
Share:
Purchase consultation
Product Specification
Data Sheets
Related Recommendation
APPLICATION

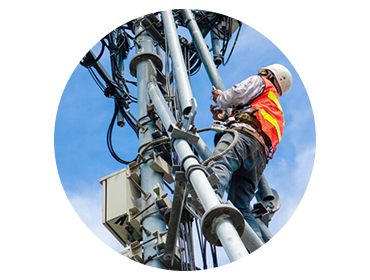

Pole connection

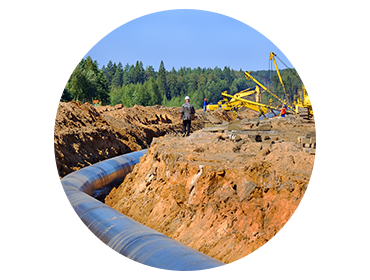

Buried connection
Wall connection

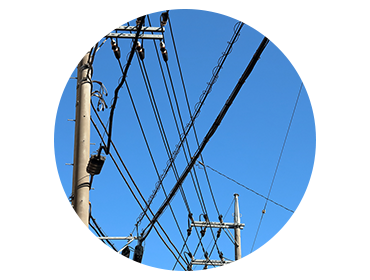

Overhead connection
Pipeline connection
FEATURES
Firm structure
The closure body is injection-molded from high engineering plastics. It has good resistance to alkali salt corrosion, aging resistance, oxidation resistance,and strong mechanical structure, can withstand severe climate change and harsh working environment, protection grade reaches IP68.
High quality metal materials

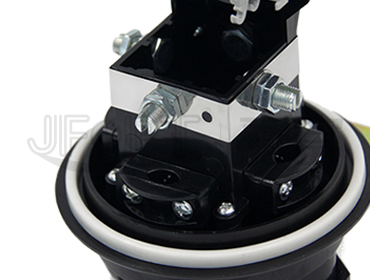

Internal optical cable fixing devices and fasteners are made of high-quality stainless steel metal materials, which are not easy to age.
Good sealing
There is a sealing ring inside the closure, which has good sealing performance and moisture-proof performance, sturdy and durable, high shock resistance and impact resistance.

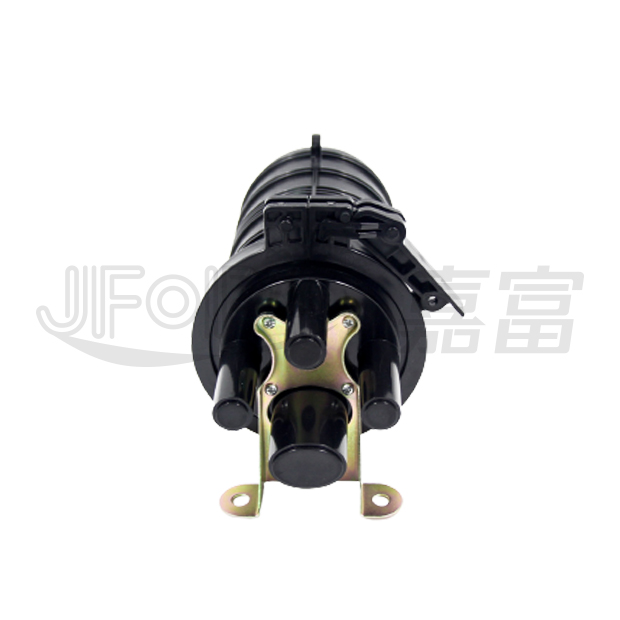

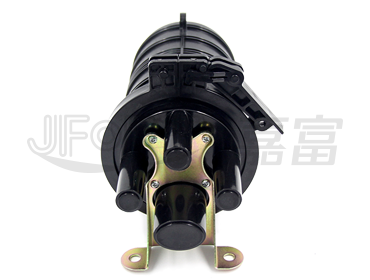

Convenient wiring
One cable inlets and three cable outlets on the bottom of closure. Optical cable fixing device inside, convenient for fixing optical cable.

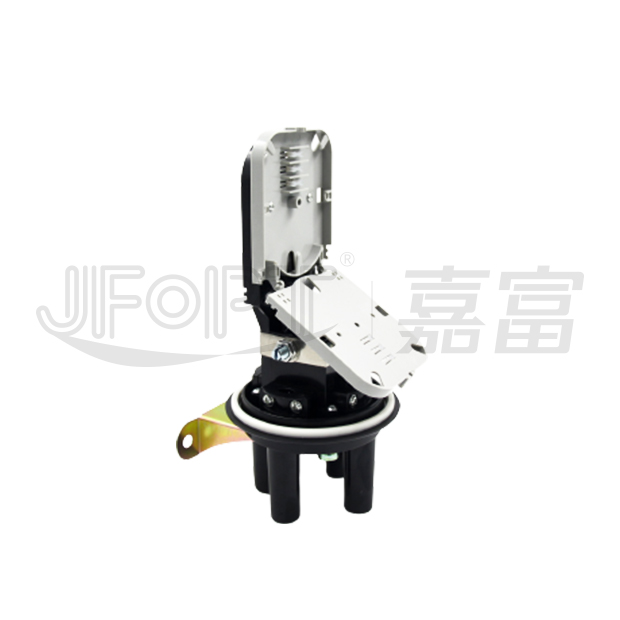

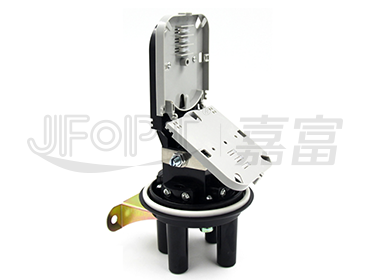

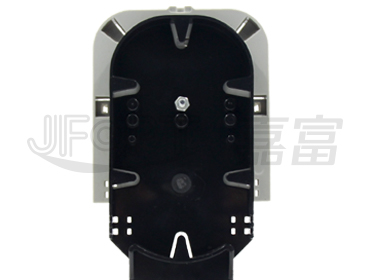

Storage and Splicing Design
The splice tray inside can be book-turned, there is enough space for the fiber storage to ensure that the curvature radius is greater than 40mm at any position, and there is no additional attenuation in the splice tray.
Convenient wiring
The splice closure can be installed 2 units 2*8 PLC splitter or 1 unit 2*16 PLC splitter (Non-connectorized).




ACCESSORIES

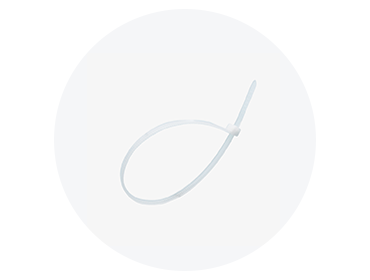

Cable tie 10pcs

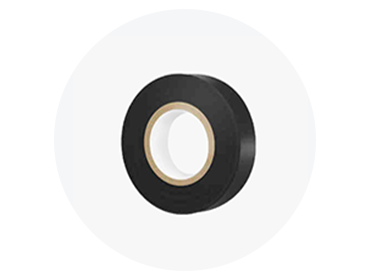

Insulation Tape 1pc

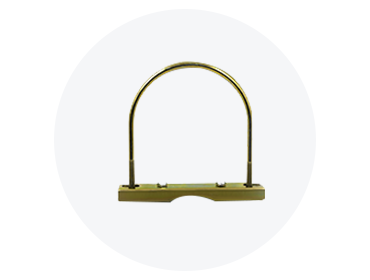

Hoop 1pc

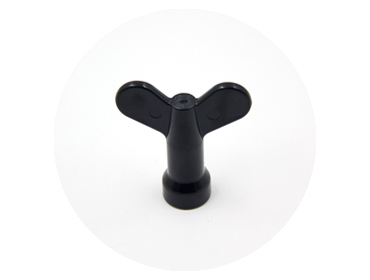

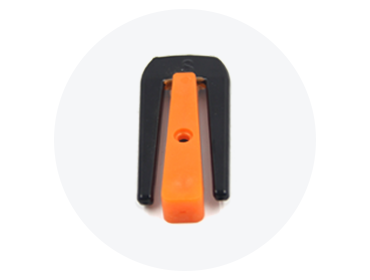

Nut wrench 1pc

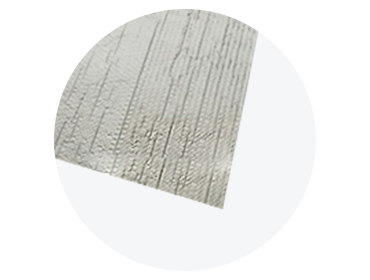

Insulated aluminum foil 1pc

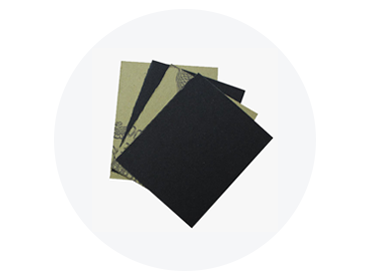

Abrasive pape 1pc

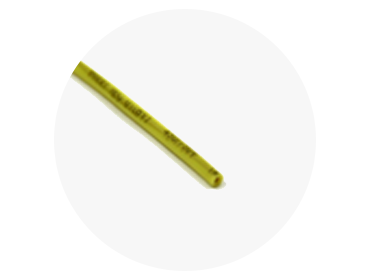

Ground wire 1pc

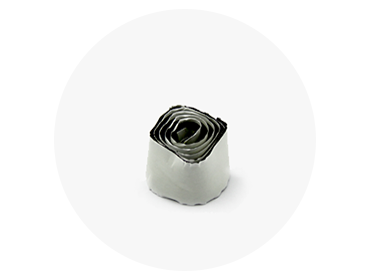

Self-adhesive strip 1pc

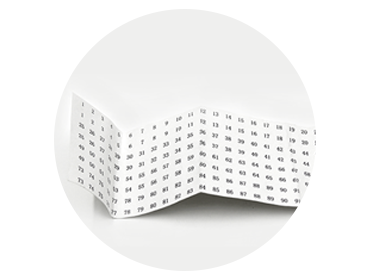

Label 1pc

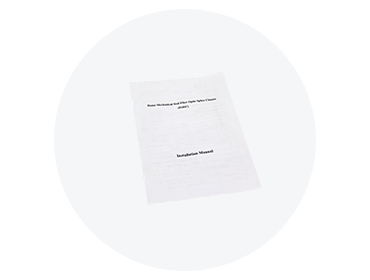

Manual 1pc

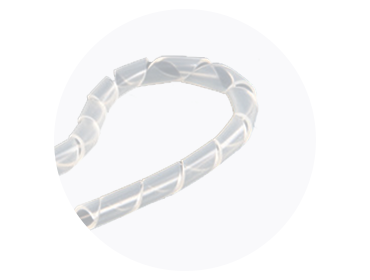

Snake tube 1pc
Splice protector xcores

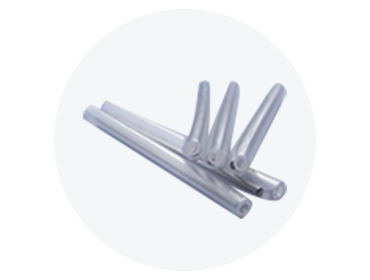

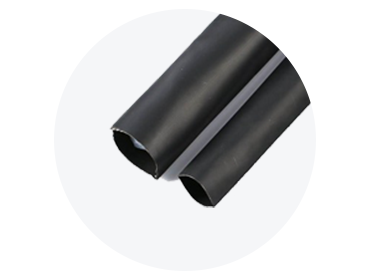

Heat shrinkable sleeve 4pcs
Heat shrinkable sleeve branch clamp 1pc
STANDARDS COMPLIANCE
Comply with TLC certification standards
Comply with ROHS certification standards
Compliant with CE certification standards
Comply with YD / T814.1-2004 standard
Meets FCC certification standards
Passed ISO9001: 2015
Conforms to the latest industry standards such as IEC
Protection ingress IP68

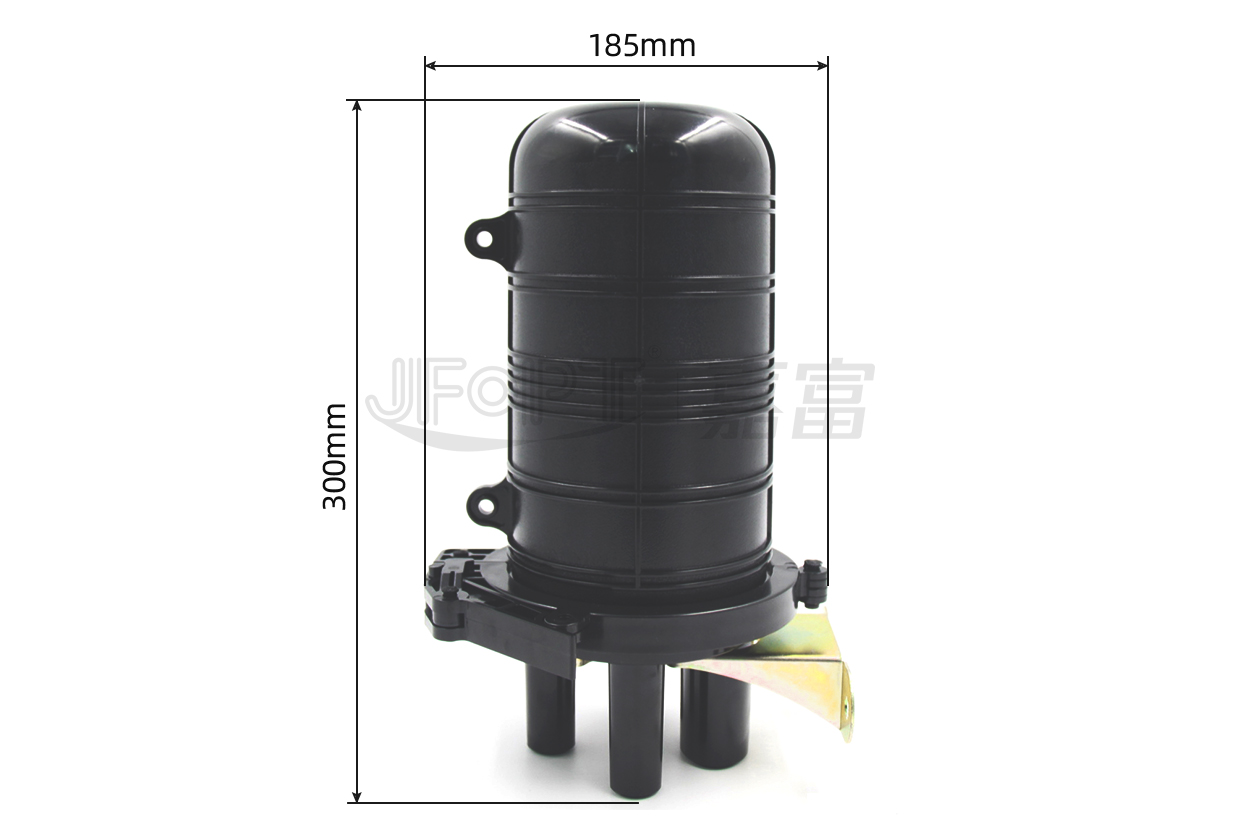

DIMENSION

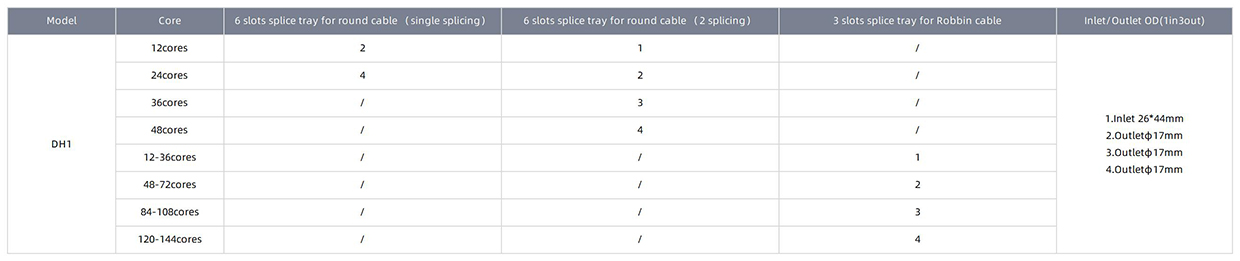

PERFORMANCE
