In the complex cabling environment of a data center, choosing the right fiber distribution panel and utilizing its functions to the fullest are crucial. Next, this article will provide a detailed explanation of how to efficiently utilize fiber distribution panels in a data center to create a more flexible and efficient cabling environment.

Fiber distribution panels are indispensable components

Whether they are pull-out or fixed type, empty fiber distribution panels always come with various accessories such as screws, metal clips, and so on. The front panel of a fiber distribution panel does not require additional installation; however, several key accessories directly determine the efficiency of the fiber distribution panel's usage. Taking a 1U pull-out fiber distribution panel as an example, three common accessories will be introduced below, which can effectively promote the full utilization of the fiber distribution panel.

Fiber Distribution Panel Modules

The fiber splice trays in the fiber distribution panel are primarily used to connect adapter panels, ensuring smooth transmission of fiber signals. Simultaneously, splice trays can be conveniently installed inside fiber cabinets to accommodate fiber module boxes and facilitate orderly wiring. Additionally, additional multi-fiber pigtails need to be precisely spliced with input fiber cables. Subsequently, these fiber pigtails will connect to fiber adapters installed on the front panel, thus establishing a complete fiber communication link. Such a design enables fiber distribution panels to play a crucial role in fiber communication networks, ensuring efficient and stable signal transmission.

Jumpers in 1U High-Density Fiber Distribution Panels

The operation of connecting jumpers in fiber distribution panels is quite common, usually requiring only the installation of two cable management spools and four fiber adapter panels on the distribution panel. Such a design not only simplifies the installation process but also greatly improves the efficiency of fiber network connections. Fiber distribution panels provide a convenient and manageable environment for storing and managing fiber jumpers. It is worth mentioning that the two spools installed in pull-out distribution panels can effectively assist in managing and organizing fiber jumpers, ensuring orderly arrangement and minimizing confusion.

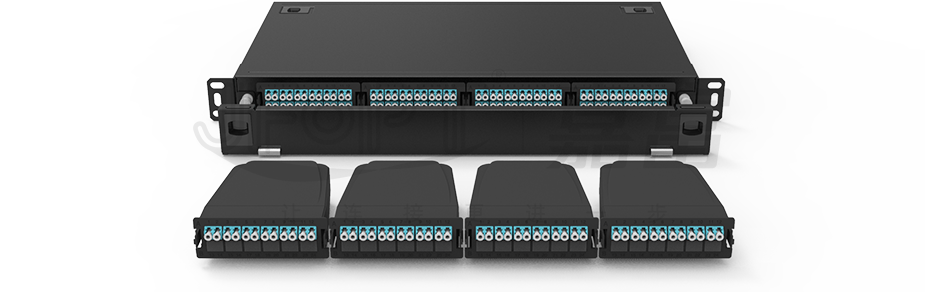

With the rapid development of 40G/100G networks, the demand for transmission between MPO 40G/100G and LC 10G interfaces is becoming increasingly prominent. To meet this demand, we have introduced an efficient conversion solution aimed at minimizing installation time while ensuring excellent connection quality. This solution has been widely adopted and received unanimous praise from users. Additionally, we have specially designed a 1U rack-mounted enclosure with a compact structure capable of accommodating up to 4 MPO cassettes, thereby achieving high-density integration of equipment and optimal use of space.
