MPO/MTP fiber optic patch cables are widely used in high-density cabling in 10G/40G/100G/200G/400G data centers. This article introduces the 16-core MPO/MTP backbone fiber optic patch cables.
Structure

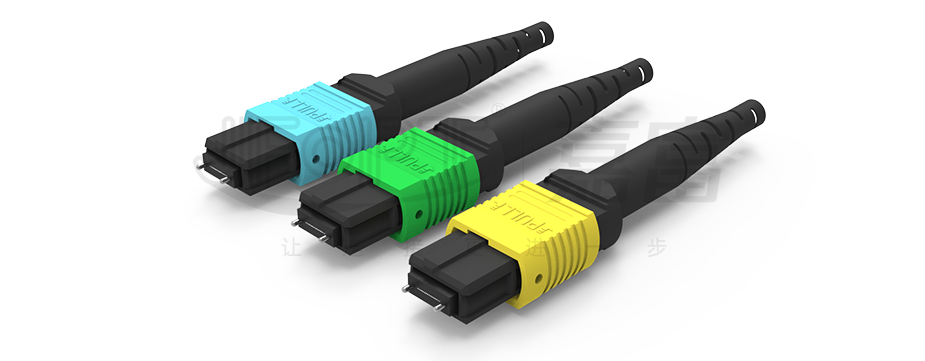

MPO/MTP-16 Connector
MPO/MTP-16 Wiring Sequence
Application

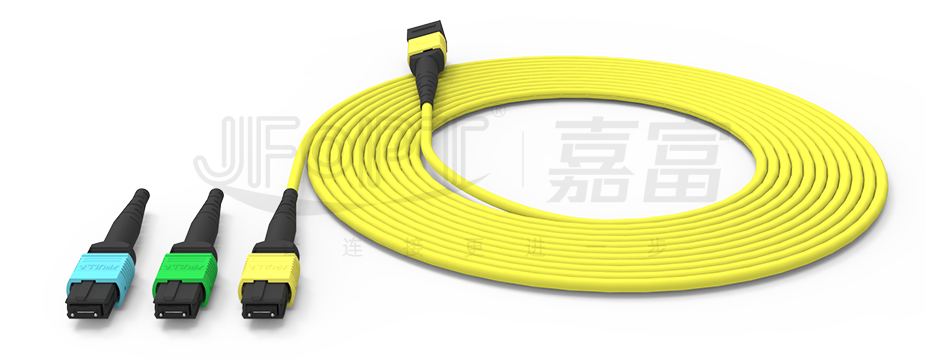

The 16-core MPO/MTP fiber optic patch cable consists of an MPO/MTP-16 connector and a 16-core optical cable.

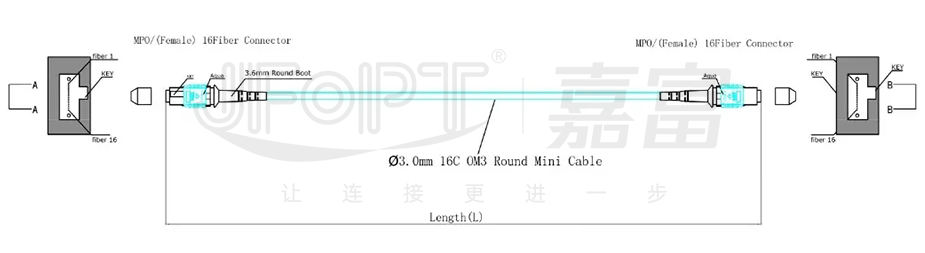

The structure of the MPO/MTP-16 fiber optic patch cable.
The MT ferrule is the main component of the connector, and the MT-16 has the same external dimensions as the MT-12.
Key of MPO/MTP-16 connector biased to one side.

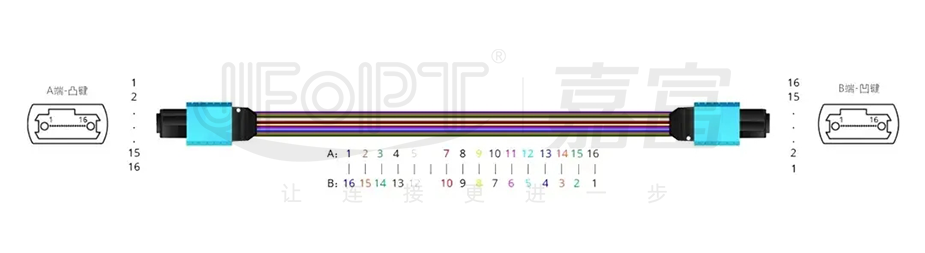

As shown in the diagram below, the typical fiber optic patch cord wiring sequence for MPO/MTP-16 is 1-16, 2-15, 3-14, ..., 16-1.
MPO/MTP-16 backbone fiber jumpers can be directly connected to 400G QSFP-DD SR8, supporting 400G ultra-large-scale data center transmission.
Using SENKO fan-out connectors and Changfei optical fiber, high-quality MPO fiber jumper products save space and enable flexible high-density wiring in data centers.
