With the rapidly increasing demand for bandwidth, data centers are facing urgent challenges to achieve ultra-high-density cabling to ensure smooth and unhindered connections of various kinds. MPO/MTP technology, with its excellent performance in multi-core connectors, lays a solid foundation for high-performance data networks in data centers. This article will delve into the related solutions of MPO/MTP technology, including MPO/MTP trunk cables, MPO/MTP branch cables, and MPO/MTP patch panels, to meet the growing bandwidth demands of data centers and achieve efficient, stable data transmission.
MTP/MPO Backbone Fiber Patch Cord
MPO/MTP Branch Fiber Patch Cord
MPO/MTP Fiber Distribution Box
In conclusion, MPO/MTP cabling undoubtedly stands as an exceptionally ideal solution for data centers. Its high-density, scalable system design can effortlessly accommodate thousands of connections, providing robust assurance for the efficient operation of data centers.

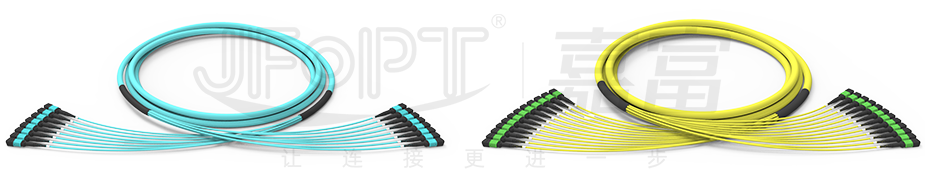

MTP/MPO Backbone Fiber Patch Cord" provides an efficient solution for data centers or other high-density environments by terminating MTP/MPO connectors. These backbone patch cords come in various specifications, including 12-core, 24-core, 48-core, and 72-core, to meet the needs of different scenarios. Their design aims to facilitate the rapid deployment of high-density backbones, significantly reducing network installation or reconfiguration time, thereby saving costs. Using micro-core fiber cables, MTP/MPO backbone patch cords not only optimize bend radius but also reduce weight and size, making them an ideal choice for applications such as internal connection boxes, distribution frames, and reinforcing MPO/MTP branches, effortlessly spanning MDA, HDA, and EDA spaces.
Additionally, MTP/MPO backbone patch cords offer several significant advantages:
1.Time-saving installation: The unique plug-and-play design enables MTP/MPO backbone patch cords to merge quickly, facilitating rapid deployment and significantly reducing installation time.
2.Reduced jumper volume: MTP/MPO backbone patch cords have a minimal diameter, effectively reducing jumper volume, improving airflow in data centers, and ensuring stable equipment operation.
3.High-quality assurance: MTP/MPO backbone patch cords undergo pre-terminated, tested, and inspected in the factory to ensure superior quality. Detailed test and inspection reports are provided, offering long-term quality assurance for the patch cords, leaving you with no worries.

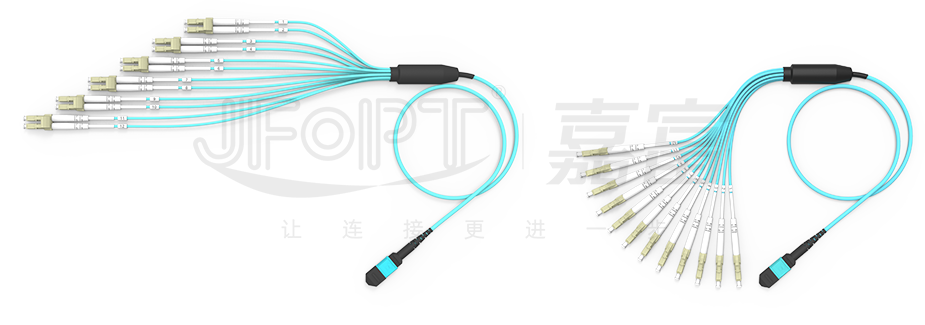

MPO/MTP Branch Fiber Patch Cord, also known as MPO/MTP fan-out fiber patch cord, provides an efficient solution for the cabling process with its unique design. Its structural feature is that one end is equipped with an MTP connector, while the other end is cleverly divided into 6 or 12 connectors (such as LC, SC, ST, etc.), and can be selected according to requirements for 4-core, 6-core, 8-core, or 12-core ribbon fiber cables, with the jumper length customizable based on actual needs.
MPO/MTP branch patch cords have been widely used in environments requiring high-density integrated fiber optic circuits, providing strong support for network optimization with their outstanding performance. Moreover, they have the following significant advantages:
1.Space-saving: Through rational structural design, MPO/MTP branch patch cords can effectively utilize space, reducing the space occupied by active equipment and backbone cables, thereby improving the space utilization efficiency of the entire cabling system.
2.Easy deployment: With a factory-terminated system, MPO/MTP branch patch cords are pre-terminated before leaving the factory, greatly saving time for installation and network reconfiguration, thus improving work efficiency.
3.High reliability: Manufactured with high-standard components, ensuring stable and reliable product quality to meet the requirements of long-term stable operation.

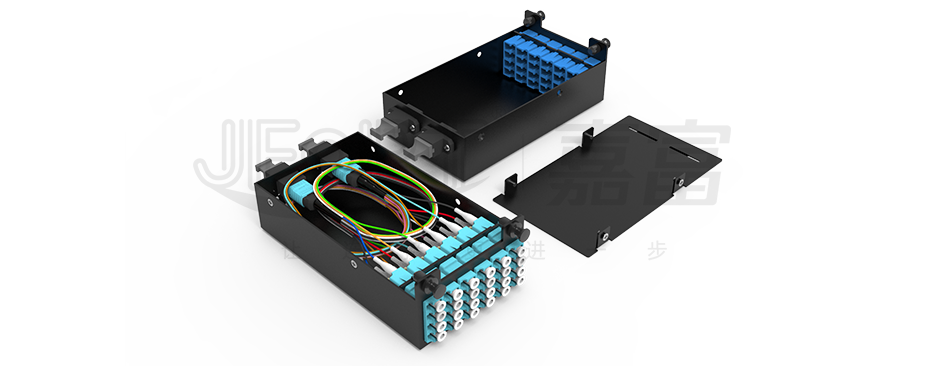

The MPO/MTP Fiber Distribution Box provides a secure transmission environment for MPO/MTP and LC or SC discrete connectors, ensuring the reliability and stability of data transmission. They are widely used to connect MTP trunks with LC or SC branch cables, becoming an integral part of data center wiring systems.
This distribution box adopts a modular design, facilitating the rapid deployment of high-density data center infrastructure boxes and optimizing the process of troubleshooting and reconfiguration. Through simple moving, adding, and changing operations, the MPO/MTP distribution box can significantly reduce installation time and costs for optical network infrastructure in local environments, enhancing work efficiency.
Additionally, the MPO/MTP distribution box offers several significant advantages:
1.The unique design of MPO/MTP interfaces ensures excellent optical and mechanical performance of components, ensuring efficient and stable data transmission.
2.In high-speed network environments, the insertion loss and power dispersion compensation of the MPO/MTP distribution box are extremely low, effectively guaranteeing network performance.
3.The high-density design allows 12 or 24-core cassette modules to be easily installed in 1U or 3U racks, with each 1U rack providing up to 72 optical interfaces, and 3U racks providing up to 336 optical interfaces, meeting the demands of large-scale data transmission.
In conclusion, MPO/MTP cabling undoubtedly stands as an exceptionally ideal solution for data centers. Its high-density, scalable system design can effortlessly accommodate thousands of connections, providing robust assurance for the efficient operation of data centers.
